Foton Aoling Supu 131 hp 4X2(6 wheels) 4.2m refrigerated truck (Binglingfang brand)
EXW
From $16,389
Export quote
Binglingfang Foton chassis Refrigerated Truck
Main model photos
14 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aoling Supu 131 hp 4X2(6 wheels) 4.2m refrigerated truck (Binglingfang brand) | 4x2 / 131hp / China VI | From $16,389 | |
| Foton Auman Aoling 245 hp 4X2(6 wheels) 6.8m refrigerated truck (Binglingfang) | 4x2 / 245hp / China VI | ||
| Foton Ollin CTX 110 hp 4X2(6 wheels) 3.76m Refrigerated Truck (Binglingfang) | 4x2 / 110hp / China V | From $12,222 | |
| Foton Aoling CTS 143hp 4X2(6 wheels) 3.75m Refrigerated Truck (Binglingfang) | 4x2 / 143hp / China V | From $15,972 | |
| Foton Aoling CTS 143 hp 4X2(6 wheels) 4.085m Refrigerated Truck (Binglingfang) | 4x2 / 143hp / China V | From $15,972 |
Foton Auman Aoling 245 hp 4X2(6 wheels) 6.8m refrigerated truck (Binglingfang)
EXW
Export quote

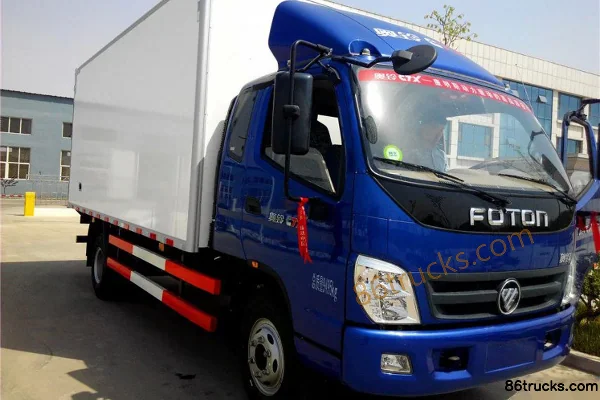

Foton Ollin CTX 110 hp 4X2(6 wheels) 3.76m Refrigerated Truck (Binglingfang)
EXW
From $12,222
Export quote

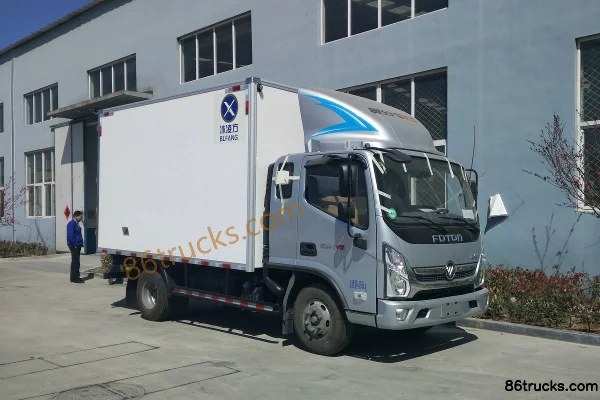

Foton Aoling CTS 143hp 4X2(6 wheels) 3.75m Refrigerated Truck (Binglingfang)
EXW
From $15,972
Export quote
Foton Aoling CTS 143 hp 4X2(6 wheels) 4.085m Refrigerated Truck (Binglingfang)
EXW
From $15,972
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.46×3.23 / 10.05×2.47×3.75 / 5.995×2.38×3 / 5.995×2.34×3 / 5.995×2.31×3.25m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 3360 / 4800mm
Vehicle origin: Shandong Zhucheng / Beijing
Front track width: 1730 / 1955mm
rear track: 1615 / 1800 / 1590mm
Curb Weight: 3.2 / 7.3 / 2.91ton
Rated payload: 1.1 / 10.57 / 1.455ton
GVWR: 4.495ton
Max. speed: 110 / 100 / 95km/h
Front/rear suspension: 1.11/1.525 / 1.27/2.48 / 1.12/1.515m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: FotonF2.8NS6B131 / YuchaiYCS06245-60A / Foton4J28TC5 / FotonISF3.8s5141
Number of cylinders: 4 / 6cylinder
Displacement: 2.78 / 6.23 / 2.771 / 3.76L
Emission standard: China VI / China V
Max output power: 96 / 180 / 81 / 105kW
Max hp: 131 / 245 / 110 / 143Horsepower
Max torque: 310 / 950 / 440N·m
Rated speed: 2900 / 2300 / 2600rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Cargo box parameters
Cargo box dimensions: 4.2×2.3×2.3 / 6.8×2.3×2.25 / 3.76×1.97×2.15 / 3.75×2.1×2.1 / 4.085×2.1×2.1m
Cargo box width: 2.3 / 1.97 / 2.1m
Cargo box height: 2.3 / 2.25 / 2.15 / 2.1m
Body Parameters
Vehicle certification code: QYK5040XLC6 / QYK5180XLC6 / BJ5049XLC-A7
Body Brand: Foton / Binglingfang
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling Express / Aoling Bumblebee / Aoling CTX / Aoling CTS
Chassis Model: BJ1048V9JEA-AB2 / BJ1186VLPHN-AG1 / BJ1049V9JDA-A1 / BJ5048XLC-FA / BJ1048V9JEA-FE
Axle ratio: 4.875 / 3.875 / 3.727
Leaf spring count: 3/8+6 / 3/4+3 / 3+1/6+7 / 3/7+6
Transmission Parameters
Number of gears: 5 / 8 / 6Gear
Transmission Model: 5-speed gearbox / 8-speed gearbox / WLYWLY6TS40 / WLYWLY6T120
Cab parameters
Cab: Single Row
fuel tank
Fuel tank capacity: 120L
Tire
Tire Size: 7.50R16LT 6PR,7.00R16LT 8PR,8.25R16LT 6P / 10.00R20 18PR,11R22.5 18PR,275/80R22.5 1 / 6.50R16 8PR,6.50R16 10PR 6.50R16 12PR,7.00R16 8PR,7.50R16 6PR,7.00R16 10PR / 7.00R16LT 8PR,7.50R16LT 6PR
Number of tires: 6pcs
FAQ
What kind of truck is Binglingfang Binglingfang Foton chassis Refrigerated Truck?
Binglingfang Binglingfang Foton chassis is an export-oriented Refrigerated Truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Binglingfang Foton chassis Refrigerated Truck?
Binglingfang Foton chassis Refrigerated Truck export reference is about $12,222 – $16,389. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Binglingfang Foton chassis Refrigerated Truck cover?
Binglingfang Foton chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 110 hp / 131 hp / 143 hp / 245 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Binglingfang Foton chassis Refrigerated Truck?
For Binglingfang Foton chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Binglingfang Foton chassis Refrigerated Truck include?
Binglingfang Foton chassis Refrigerated Truck currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Binglingfang Foton chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
