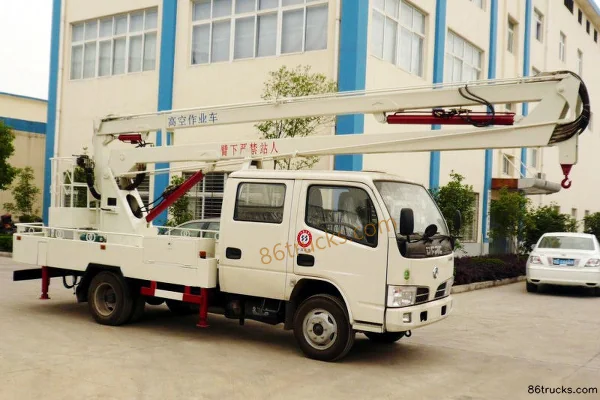

Dongfeng Furika 95hp 4X2(6 wheels) Aerial Work Truck (Chengliwei)
EXW
Export quote
Chengliwei Dongfeng Chassis aerial work truck
Main model photos
111 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Furika 95hp 4X2(6 wheels) Aerial Work Truck (Chengliwei) | 4x2 / 95hp / China III / Euro III | ||
| Dongfeng Furika 95hp 4X2(6 wheels) Aerial Work Truck (Chengliwei) | 4x2 / 95hp / China III / Euro III |
Dongfeng Furika 95hp 4X2(6 wheels) Aerial Work Truck (Chengliwei)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 2.2×1.88×0.4 / 7.4×1.98×3.11m
Type: aerial work truck
Drive type: 4X2
Wheelbase: 3300mm
Front/rear track width: Front track: 1404, Rear track: 1458 / Front track: 1506, Rear track: 1466mm
Curb Weight: 3.2 / 4ton
GVWR: 5.495 / 4.325ton
Front/rear suspension: 1.032/1.663 / 1.032/1.968m
Body Parameters
Max working height: 8-14 / 9-16m
Other special notes: Vertical Lift / Optional cab with chassis.
max working radius: 16m
Swing Angle: 360°
Front/rear overhang: 1032/1663 / 1100mm
Vehicle certification code: CLW5052JGKZ3 / CLW5040JGKZ3
Body Brand: Chengliwei
Engine parameters
Engine Model: Chaochai CY4102-C3F
Displacement: 3.856L
Emission standard: China III / Euro III
Max output power: 70kW
Max hp: 95Horsepower
Chassis Specs
Chassis Brand: Dongfeng
Chassis Model: EQ1050NJ20D3 / EQ1042NJ20D3
Leaf spring count: 6/8+4 / 8/9+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Dongfeng 5-Speed
Tire
Tire Size: 7.00-16
Number of tires: 6pcs
FAQ
What kind of truck is Chengliwei Chengliwei Dongfeng Chassis aerial work truck?
Chengliwei Chengliwei Dongfeng Chassis is an export-oriented aerial work truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chengliwei Dongfeng Chassis aerial work truck cover?
Chengliwei Dongfeng Chassis aerial work truck mainly covers: Drive: 4x2; Horsepower: 95 hp; Emission: China III / Euro III. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Dongfeng Chassis aerial work truck?
For Chengliwei Dongfeng Chassis aerial work truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is aerial work truck typically used for?
aerial work truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei Dongfeng Chassis aerial work truck include?
Chengliwei Dongfeng Chassis aerial work truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Dongfeng Chassis aerial work truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
