Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.6 m³ Concrete Mixer Truck (Yate Heavy Industry Brand)
EXW
From $60,417
Export quote
Yate Heavy Industry Sinotruk HOWO Chassis concrete
Main model photos
6 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 7.6 m³ Concrete Mixer Truck (Yate Heavy Industry Brand) | 8x4 / 340hp / China V | From $60,417 | |
| Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.95m³ concrete mixer truck | 8x4 / 340hp / China V | From $52,778 | |
| Sinotruk HOWO 380hp 6X4(10 wheels) 4m³ concrete mixer truck (Yate Heavy Industry) | 6x4 / 380hp / China V | ||
| Sinotruk HOWO 380 hp 8X4(12 wheels) 5.5 m³ concrete mixer truck (Yate Heavy Industry) | 8x4 / 380hp / China V | From $63,611 |
Sinotruk HOWO T5G 340hp 8X4(12 wheels) 7.95m³ concrete mixer truck
EXW
From $52,778
Export quote

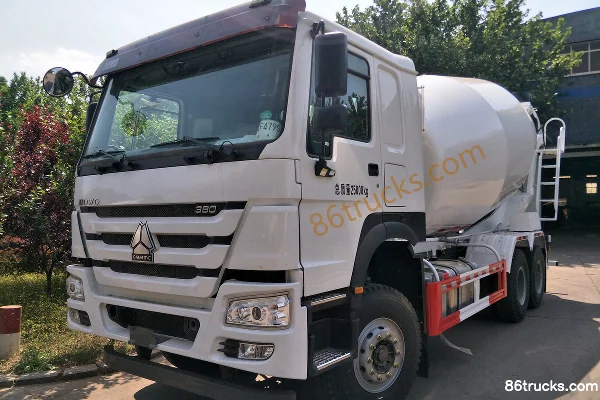

Sinotruk HOWO 380hp 6X4(10 wheels) 4m³ concrete mixer truck (Yate Heavy Industry)
EXW
Export quote

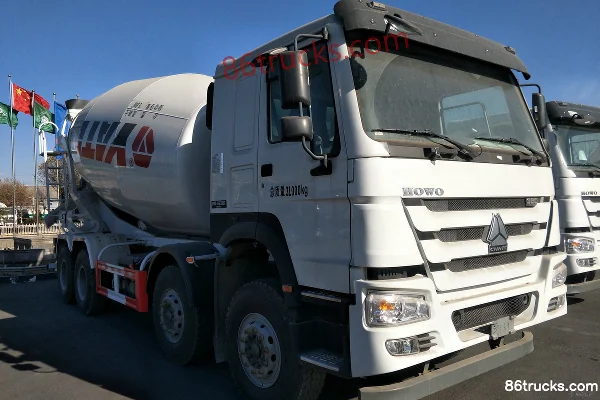

Sinotruk HOWO 380 hp 8X4(12 wheels) 5.5 m³ concrete mixer truck (Yate Heavy Industry)
EXW
From $63,611
Export quote
Series Specs
Basic Info
Cab dimensions: 10.22×2.496×3.96 / 10.12×2.55×3.995 / 10.37×2.496×3.998 / 11.84×2.496×3.998m
Drive type: 8X4 / 6X4
Truck Type: Concrete mixer truck
Vehicle origin: Tangshan, Hebei / Tangshan
Front/rear track width: Front track: 2015/2015mm; Rear track: 1850/1850 / Front: 2035/2035mm; Rear: 1850/1850 / Front track: 2022mm; Rear track: 1830/1830 / Front track: 2022/2022mm; Rear track: 1830/1830
Wheelbase: 1800+3025+1400 / 1800+3050+1350 / 4025+1350 / 1800+3600+1350mm
Curb Weight: 14.27 / 13.52 / 16.1 / 18.82ton
Rated payload: 16.6 / 17.35 / 8.77 / 12.05ton
Max. speed: 82 / 80km/h
Front/rear suspension: 1.43/2.59 / 1.43/2.49 / 1.5/3.195 / 1.5/3.365m
Body Parameters
Mixing drum capacity: 7.6 / 7.95 / 4 / 5.5m³
Vehicle certification code: TZ5317GJBZG8E1 / TZ5317GJBZGCET / TZ5257GJBZE3E1 / TZ5317GJBZN8E1
Body Brand: Yate Heavy Industry Brand
Engine parameters
Engine Model: SinotrukMC07.34-50 / SinotrukD10.38-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87 / 9.726L
Emission standard: China V
Max output power: 248 / 276kW
Max hp: 340 / 380Horsepower
Rated speed: 2000rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Chassis Specs
Chassis Series: HOWO T5G / HOWO-7 / SinotrukHOWO-7
Chassis Model: ZZ1317N306GE1 / ZZ1257N4347E1 / ZZ1317N3667E1
Axle ratio: 5.73 / 5.473
Leaf spring count: 11/11/10 / 10/12 / 11/11/12,11/11/-,4/4/12,4/4/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Sinotruk 10-speed / SinotrukHW10 / SinotrukHW15710
Cab parameters
Cab: Flat roof
Tire
Tire Size: 11.00R20 / 12.00R20 16PR/12.00R20 18PR / 315/80R22.5 18PR
Number of tires: 12 / 10pcs
FAQ
What kind of truck is Yate Heavy Industry Yate Heavy Industry Sinotruk HOWO Chassis concrete mixer truck?
Yate Heavy Industry Yate Heavy Industry Sinotruk HOWO Chassis is an export-oriented concrete mixer truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Yate Heavy Industry Sinotruk HOWO Chassis concrete?
Yate Heavy Industry Sinotruk HOWO Chassis concrete export reference is about $52,778 – $63,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Yate Heavy Industry Sinotruk HOWO Chassis concrete cover?
Yate Heavy Industry Sinotruk HOWO Chassis concrete mainly covers: Drive: 6x4 / 8x4; Horsepower: 340 hp / 380 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yate Heavy Industry Sinotruk HOWO Chassis concrete?
For Yate Heavy Industry Sinotruk HOWO Chassis concrete: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Yate Heavy Industry Sinotruk HOWO Chassis concrete include?
Yate Heavy Industry Sinotruk HOWO Chassis concrete currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yate Heavy Industry Sinotruk HOWO Chassis concrete?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
