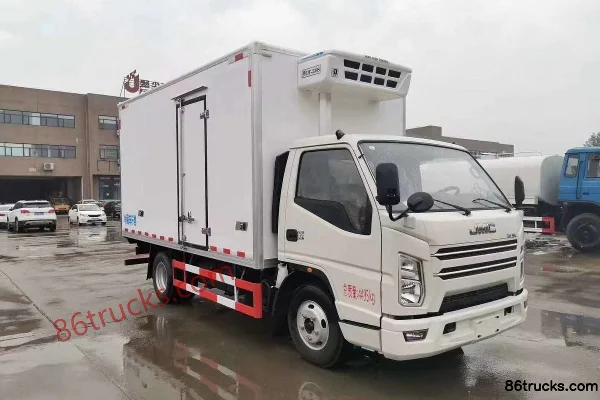

JMC Shunda Wide Body 129hp 4X2(6 wheels) 4.08m refrigerated truck (Chengliwei brand)
EXW
From $19,167
Export quote
Chengliwei JMC chassis Refrigerated Truck
Main model photos
95 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda Wide Body 129hp 4X2(6 wheels) 4.08m refrigerated truck (Chengliwei brand) | 4x2 / 129hp / China VI | From $19,167 | |
| JMC Shunda Narrow Body 129hp 4X2(6 wheels) 4.15m Refrigerated Truck (Chengliwei Brand) | 4x2 / 129hp / China VI | From $19,583 | |
| JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.15m Refrigerated Truck (Chengliwei Brand) | 4x2 / 116hp / China VI | From $20,139 |

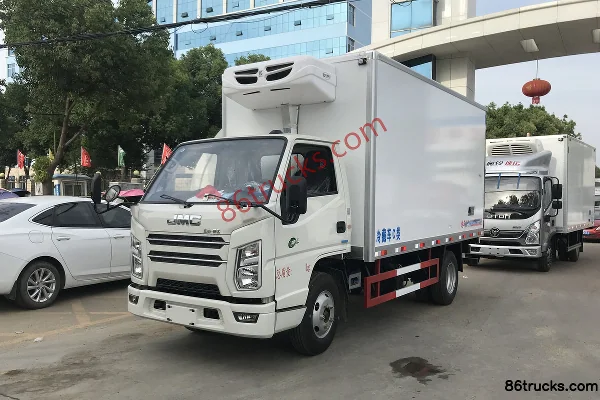

JMC Shunda Narrow Body 129hp 4X2(6 wheels) 4.15m Refrigerated Truck (Chengliwei Brand)
EXW
From $19,583
Export quote

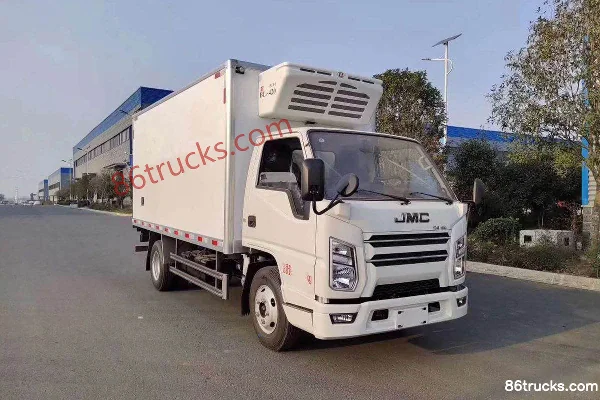

JMC Shunda Narrow Body 116 hp 4X2(6 wheels) 4.15m Refrigerated Truck (Chengliwei Brand)
EXW
From $20,139
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Teshun 116hp 4X2(6 wheels) 2.8m refrigerated truck (Chengliwei brand) | 4x2 / 116hp / China V | From $22,500 | |
| JMC Shunda Wide Body 129 hp 4X2(6 wheels) 4.05m Refrigerated Truck (Chengliwei Brand) | 4x2 / 129hp / China VI | From $19,167 | |
| JMC Shunda Wide Body 116 hp 4X2(6 wheels) 4.05m Refrigerated Truck (Chengliwei Brand) | 4x2 / 116hp / China VI | From $19,722 | |
| JMC Teshun 115 hp 4X2(6 wheels) 2.85 m refrigerated truck (Chengliwei brand) | 4x2 / 116hp / China V | From $22,222 | |
| JMC Shunda Wide Body 116hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand) | 4x2 / 116hp / China V | From $18,889 |
JMC Teshun 116hp 4X2(6 wheels) 2.8m refrigerated truck (Chengliwei brand)
EXW
From $22,500
Export quote
JMC Shunda Wide Body 129 hp 4X2(6 wheels) 4.05m Refrigerated Truck (Chengliwei Brand)
EXW
From $19,167
Export quote
JMC Shunda Wide Body 116 hp 4X2(6 wheels) 4.05m Refrigerated Truck (Chengliwei Brand)
EXW
From $19,722
Export quote
JMC Teshun 115 hp 4X2(6 wheels) 2.85 m refrigerated truck (Chengliwei brand)
EXW
From $22,222
Export quote
JMC Shunda Wide Body 116hp 4X2(6 wheels) 4.1m refrigerated truck (Chengliwei brand)
EXW
From $18,889
Export quote
Series Specs
Basic Info
Cab dimensions: 5.696×1.972×2.45 / 5.995×2.23×3.2 / 5.696×1.972×2.46 / 5.955×2.14×2.98 / 5.955×2.16×3.03 / 5.995×1.95×2.9 / 5.995×1.92×2.85 / 5.995×1.95×2.88m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 3570 / 3360mm
Vehicle origin: Suizhou / Suizhou, Hubei
Front track width: 1692 / 1680 / 1565 / 1385mm
rear track: 1700 / 1604 / 1570 / 1508 / 1425mm
Curb Weight: 2.5 / 3.21 / 2.29 / 3.2 / 3.07 / 2.82 / 2.77 / 2.71ton
Rated payload: 0.815 / 1.09 / 1.025 / 1.1 / 1.35 / 1.595 / 2.95ton
Max. speed: 120 / 100 / 95 / 90km/h
Front/rear suspension: 0.982/1.1 / 1.14/1.495 / 1.026/1.1 / 1.125/1.51 / 1.075/1.56 / 1.065/1.57 / 1.015/1.32m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: JMCJX493ZLQ5 / JMCJX4D30A6H / JMCJX4D30B6H / Nanchang JMC JX493ZLQ5 / Nanchang JMC JX493ZLQ4 / JMCJX493ZLQ3
Number of cylinders: 4cylinder
Displacement: 2.771 / 2.892L
Emission standard: China V / China VI / China III / Euro III
Max output power: 85 / 95 / 80kW
Max hp: 116 / 129 / 109Horsepower
Max torque: 285 / 260N·m
Rated speed: 3200 / 3800rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / Inline, high-pressure common rail / Inline
Cargo box parameters
Box volume: 12.8m³
Cargo box dimensions: 2.8×1.61×1.35 / 4.05×2.06×2.04 / 2.85×1.54×1.33 / 4.1×1.98×1.84 / 4.08×1.81×1.85 / 4.15×1.75×1.75 / 3.22×1.75×1.75 / 4.1×1.75×1.75m
Cargo box width: 1.61 / 2.06 / 1.54 / 1.98 / 1.81 / 1.75m
Cargo box height: 1.35 / 2.04 / 1.33 / 1.84 / 1.85 / 1.75m
Body Parameters
Vehicle certification code: CLW5041XLCJ6 / CLW5047XLCJ6 / CLW5049XLCJ5 / CLW5044XLCJ5 / CLW5040XLCJ6 / CLW5043XLCJ6 / CLW5042XLCJ5 / CLW5041XLCJ4 / CLW5060XLC3
Refrigeration unit:
Body Brand: Chengliwei
Others: The cargo box top is closed and non-openable.
Chassis Specs
Chassis Brand: JMC
Chassis Series: Tesun / Shunda Wide Body / Shunda Narrow Body / Classic Shunda / Shunda
Chassis Model: JX5040XXYTH-M6 / JX1042TG26 / JX6570T-M5 / JX1042TG25 / JX1043TG26 / JX1041TG26 / JX1041TSG25 / JX1041TG24 / JX1060TG23
Front axle description: Payload 1720kg
rear axle description: 4T / Payload 2775kg
Leaf spring count: 7/5+6 / 7/4+6 / 7/4+6,7/5+6 / 7/4+5 / 7/5+5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed / Getrag 5-speed / 5-speed gearbox
Cab parameters
Cab: Single Row / Flat roof
Tire
Tire Size: 225/65 R16C / 7.00R16LT 10PR / 225/70R15LT / 7.00R16LT 8PR,7.00R16LT 10PR / 7.00R16LT 8PR / 7.00R16LT / 7.00R16LT,7.00-16LT
FAQ
What kind of truck is Chengliwei Chengliwei JMC chassis Refrigerated Truck?
Chengliwei Chengliwei JMC chassis is an export-oriented Refrigerated Truck lineup with about 11 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chengliwei JMC chassis Refrigerated Truck?
Chengliwei JMC chassis Refrigerated Truck export reference is about $16,111 – $22,500. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chengliwei JMC chassis Refrigerated Truck cover?
Chengliwei JMC chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 116 hp / 129 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei JMC chassis Refrigerated Truck?
For Chengliwei JMC chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Chengliwei JMC chassis Refrigerated Truck include?
Chengliwei JMC chassis Refrigerated Truck currently lists about 11 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei JMC chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
