Auman Galaxy 5M 13.6L LNG 510hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck
EXW
Export quote
Auman Galaxy 5 Tractor Trucks
Main model photos
30 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Auman Galaxy 5M 13.6L LNG 510hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck | 6x4 / 510hp / China VI | ||
| Auman Galaxy 5M 14.5L LNG 510 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck | 6x4 / 510hp / China VI | From $54,167 | |
| Auman Galaxy 5M 9.9L Diesel 480hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck | 6x4 / 480hp / China VI | From $44,111 | |
| Auman Galaxy 5M 11.8L Diesel 520hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck | 6x4 / 520hp | From $50,569 | |
| Auman Galaxy 5 14.5L LNG 580hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck | 6x4 / 580hp / China VI |
Auman Galaxy 5M 14.5L LNG 510 hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck
EXW
From $54,167
Export quote

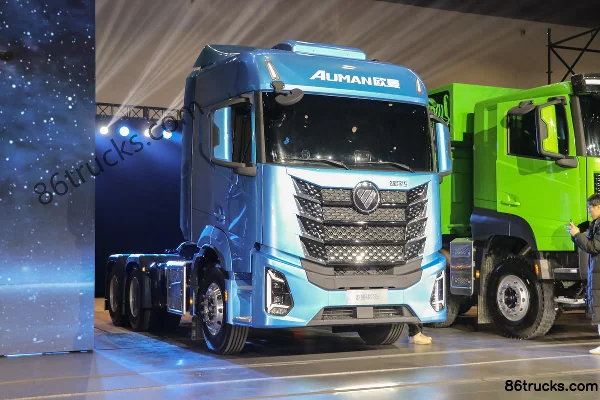

Auman Galaxy 5M 9.9L Diesel 480hp 6X4(10 wheels) Fast Gear 12-Speed Tractor Truck
EXW
From $44,111
Export quote
Auman Galaxy 5M 11.8L Diesel 520hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck
EXW
From $50,569
Export quote
Auman Galaxy 5 14.5L LNG 580hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): BJ4259L6DLL-10 / BJ4251N6DAM-01 / BJ4251Y6DAM-02 / BJ4259Y6DAM-01 / BJ4259N6DAM-01
Drive type: 6X4
Wheelbase: 3800+1350 / 3300+1350mm
Engine Model: Yuchai6K14F51N-60 / FotonA14NNS6B510 / FotonA10NS6B480 / FotonA12NS6B520 / FotonA15NNS6B580 / 6K14F51N-60 / A14NNS6B510 / A10NS6B480 / A12NS6B520 / A15NNS6B580
Transmission Model: Fast Gear12JX250TB / Fast Gear12JSDX250TA-F / Fast Gear12JSDX240TA / ZF12TX2460TD / ZF12-speed / 12JX250TB / 12JSDX250TA-F / 12JSDX240TA / 12TX2460TD / 12-speed transmission
Rear Axle Ratio: 3.7 / 3.417
Cab length: 7.455 / 7.42 / 7.125 / 7.39 / 6.995m
Cab width: 2.55m
Cab height: 2.89 / 3.92 / 3.82 / 3.89m
Front track width: 2020 / 1990mm
Gross Trailer Weight: 40ton
rear track: 1865/1865mm
Curb Weight: 8.805 / 8.45 / 7.7 / 8.2 / 8.87 / 7.05ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Beijing / Huairou, Beijing
tonnage class: Heavy truck
Remarks: Optional 1350L gas cylinder, 3.545 ratio.
Energy Type: LNG (liquefied natural gas) / Diesel
Engine parameters
Engine Brand: Yuchai / Foton
Number of cylinders: 6cylinder
Cylinder arrangement: Inline
Displacement: 13.64 / 14.5 / 9.92 / 11.82L
Emission standard: China VI
Max output power: 375 / 353 / 382 / 427kW
Max hp: 510 / 480 / 520 / 580Horsepower
Max torque: 2200 / 2300N·m
Max torque speed: 900-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Brand: Fast Gear / ZF
shift method: Manual / AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: Aluminum
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 7000kg
Frame Dimensions: 970+850+286mm
rear axle description: 400 axle
rear axle allowable load: 18000 (tandem axle group)kg
FAQ
What kind of truck is Auman Auman Galaxy 5 Tractor Trucks?
Auman Auman Galaxy 5 is an export-oriented Tractor Trucks lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Auman Galaxy 5 Tractor Trucks?
Auman Galaxy 5 Tractor Trucks export reference is about $44,111 – $54,167. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Auman Galaxy 5 Tractor Trucks cover?
Auman Galaxy 5 Tractor Trucks mainly covers: Drive: 6x4; Horsepower: 480 hp / 510 hp / 520 hp / 580 hp; Emission: China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Auman Galaxy 5 Tractor Trucks?
For Auman Galaxy 5 Tractor Trucks: 1) confirm destination emission; 2) pick drive by payload/route (long-haul heavy often 6×4); 3) choose horsepower; 4) compare reference price and photos. Then open a model for engine/gearbox and request a quote.
What is Tractor Trucks typically used for?
Tractor Trucks units mainly pull semi-trailers for line-haul, port and long-distance work. Focus on horsepower, drive and emission for your trailer and route.
How many models does Auman Galaxy 5 Tractor Trucks include?
Auman Galaxy 5 Tractor Trucks currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Auman Galaxy 5 Tractor Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
