SHACMAN Delong L3000 Composite Edition 245 hp 4X2(6 wheels) Compactor Garbage Truck (China VI)
EXW
From $30,722
Export quote

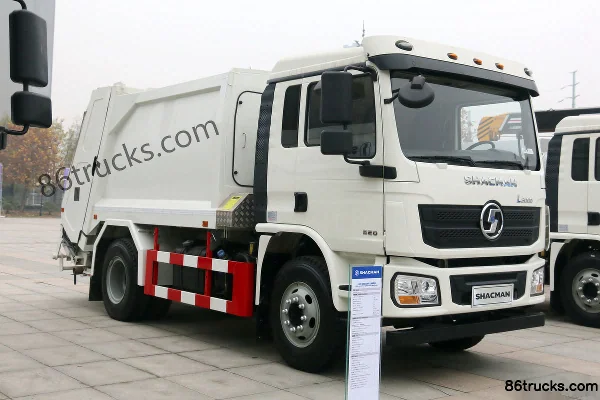

SHACMAN Delong L3000 Medium Truck garbage truck
Main model photos
460 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong L3000 Composite Edition 245 hp 4X2(6 wheels) Compactor Garbage Truck (China VI) | 4x2 / 245hp / China VI | From $30,722 | |
| SHACMAN Delong L3000 Composite Edition 220 hp 4X2(6 wheels) Compactor Garbage Truck (China VI) | 4x2 / 220hp / China VI | From $27,486 | |
| SHACMAN Delong L3000 Composite 240 hp 4X2(6 wheels) Compactor Garbage Truck (China VI) | 4x2 / 240hp / China VI | From $27,000 | |
| SHACMAN Delong L3000 Special Offer 200 hp 4X2(6 wheels) Compactor Garbage Truck (Ratio 5.125) (China VI) | 4x2 / 200hp / China VI | From $25,542 | |
| SHACMAN Delong L3000 Special Offer 200 hp 4X2(6 wheels) Compression Refuse Truck (China VI) | 4x2 / 200hp / China VI | From $25,125 |
SHACMAN Delong L3000 Composite Edition 220 hp 4X2(6 wheels) Compactor Garbage Truck (China VI)
EXW
From $27,486
Export quote
SHACMAN Delong L3000 Composite 240 hp 4X2(6 wheels) Compactor Garbage Truck (China VI)
EXW
From $27,000
Export quote
SHACMAN Delong L3000 Special Offer 200 hp 4X2(6 wheels) Compactor Garbage Truck (Ratio 5.125) (China VI)
EXW
From $25,542
Export quote
SHACMAN Delong L3000 Special Offer 200 hp 4X2(6 wheels) Compression Refuse Truck (China VI)
EXW
From $25,125
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong L3000 220hp 4X2(6 wheels) Compactor Garbage Truck | 4x2 / 220hp / China V |
Series Specs
Basic Info
Cab dimensions: 9.035×2.5×3.3 / 9.28×2.55×3.1 / 9.1×2.55×3.1m
Type: Compression-type garbage truck / garbage truck
Drive type: 4X2
Wheelbase: 4500 / 4000 / 5000 / 3800 / 3600mm
Front/rear track width: Front: 1935mm; Rear: 1860 / Front:1927mm;Rear:1860
Rated mass: 6.97 / 6.285 / 6.35ton
GVWR: 18ton
Front/rear suspension: 1.34/2.78 / 1.34/2.8m
Energy Type: Diesel
Body Parameters
Special Function Description: One-row cab with sleeper (8), front fixed rear hydraulic mount, hydraulic driver seat, manual tilt, standard steering wheel, electric AC, electric power windows, LED daytime running lights, domestic clutch, Tianxingjian Zhiya Edition BD onboard terminal, domestic 4-channel ABS, 135Ah standard battery, cable control, spare tire carrier, QD40J flange PTO, FARIZON throttle harness interface and switch, remote start/stop, cruise control (i.e. local PTO engine constant speed control), disc front axle, steel fuel tank
Vehicle certification code: SX5189ZYSLA451 / SBT5181ZYSSH1
Body Brand: SHACMAN brand / SHACMAN
Engine parameters
Engine Model: YuchaiYCS06245-60 / WeichaiWP4.6NQ220E61 / YuchaiYCK05240-60 / YuchaiYCS04200-68 / WeichaiWP6.245E50 / WeichaiWP6.220E50 / YuchaiYC4EG185-50
Displacement: 6.23 / 4.58 / 5.13 / 4.16 / 6.75 / 4.73L
Emission standard: China VI / China V
Max output power: 180 / 162 / 176 / 147 / 136kW
Max hp: 245 / 220 / 240 / 200 / 185Horsepower
Rated speed: 2300 / 2200 / 2500rpm
Cargo box parameters
Box volume: 10m³
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong L3000
Chassis Model: SX1189LA1F1C
Frame Dimensions: 870×250(7+4) / 870×250(7)(partial reinforcement)mm
rear axle description: 10T single reduction / 8.7T single reduction / 10T
Axle ratio: 5.125 / 5.286
Leaf spring count: 10/9+6
clutch: Φ395
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85TE-C / Fast Gear8JS85E-C
Cab parameters
Cab: Single-row cab
Tire
Tire Size: 10.00R20 18PR / 10.00R20
Number of tires: 6pcs
FAQ
What kind of truck is SHACMAN SHACMAN Delong L3000 Medium Truck garbage truck?
SHACMAN SHACMAN Delong L3000 Medium Truck is an export-oriented garbage truck lineup with about 11 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SHACMAN Delong L3000 Medium Truck garbage truck?
SHACMAN Delong L3000 Medium Truck garbage truck export reference is about $23,889 – $30,722. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SHACMAN Delong L3000 Medium Truck garbage truck cover?
SHACMAN Delong L3000 Medium Truck garbage truck mainly covers: Drive: 4x2; Horsepower: 200 hp / 220 hp / 240 hp / 245 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SHACMAN Delong L3000 Medium Truck garbage truck?
For SHACMAN Delong L3000 Medium Truck garbage truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is garbage truck typically used for?
garbage truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does SHACMAN Delong L3000 Medium Truck garbage truck include?
SHACMAN Delong L3000 Medium Truck garbage truck currently lists about 11 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SHACMAN Delong L3000 Medium Truck garbage truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
