JAC Shuailing HS7 4.18m Single Row Plug-in Hybrid Stake Truck JAC Huating 17.28kWh 4X2(6 wheels)
EXW
From $29,167
Export quote
JACHS7 electric cargo truck

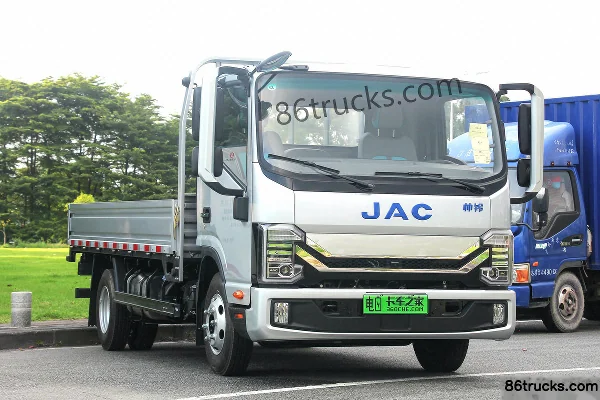

Main model photos
27 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Shuailing HS7 4.18m Single Row Plug-in Hybrid Stake Truck JAC Huating 17.28kWh 4X2(6 wheels) | 4x2 / 160hp / China VI | From $29,167 | |
| JAC Shuailing HS7 4.5T 4.12m single-row plug-in hybrid van light truck 17.28kWh 4X2(6 wheels) | 4x2 / 160hp / China VI | From $30,528 | |
| JAC Shuailing HS7 4.5T 4.18m single-row plug-in hybrid flatbed light truck 17.28kWh 4X2(6 wheels) | 4x2 / 160hp / China VI | From $29,139 | |
| JAC Shuailing HS7 single-row hybrid flatbed light truck 4X2(6 wheels) | 4x2 / 160hp / China VI |
JAC Shuailing HS7 4.5T 4.12m single-row plug-in hybrid van light truck 17.28kWh 4X2(6 wheels)
EXW
From $30,528
Export quote
JAC Shuailing HS7 4.5T 4.18m single-row plug-in hybrid flatbed light truck 17.28kWh 4X2(6 wheels)
EXW
From $29,139
Export quote
JAC Shuailing HS7 single-row hybrid flatbed light truck 4X2(6 wheels)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HFC5043CCYPHEV3 / HFC5043XXYPHEV3 / HFC1043PHEV3
Type: stake truck / enclosed cargo truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2 / 1995m
Cab height: 3.45 / 3.2 / 2.42m
CLTC range: 50km
Curb Weight: 3.6 / 3.44 / 3.26ton
Rated payload: 0.7 / 0.86 / 1.04ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
electric motor
Motor 1 Brand: Suzhou Green Control
Motor 1 Model: TZ310XS-LKM0322
Motor Type: Permanent magnet synchronous motor
Energy Type: Hybrid
total rated power: 30kW
Peak power: 65kW
total rated torque: 130N·m
total peak torque: 320N·m
Battery/Charging
Battery Brand: JAC Huating
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 17.28kWh
Engine parameters
Engine Model: Anhui CumminsHFC4DE3-2E9
Number of cylinders: 4cylinder
Displacement: 2.499L
Emission standard: China VI
Max output power: 117kW
Max hp: 160Horsepower
Cargo box parameters
Cargo box type: Stake type / Van body / stake body
Cargo box length: 4.18 / 4.12m
Cargo box width: 2.1m
Cargo box height: 2.2 / 0.4m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1950kg
rear axle description: 5T
FAQ
What kind of truck is JAC JACHS7 electric cargo truck?
JAC JACHS7 is an export-oriented electric cargo truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JACHS7 electric cargo truck?
JACHS7 electric cargo truck export reference is about $29,139 – $30,528. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JACHS7 electric cargo truck cover?
JACHS7 electric cargo truck mainly covers: Drive: 4x2; Horsepower: 160 hp; Emission: China VI. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JACHS7 electric cargo truck?
For JACHS7 electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does JACHS7 electric cargo truck include?
JACHS7 electric cargo truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JACHS7 electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
