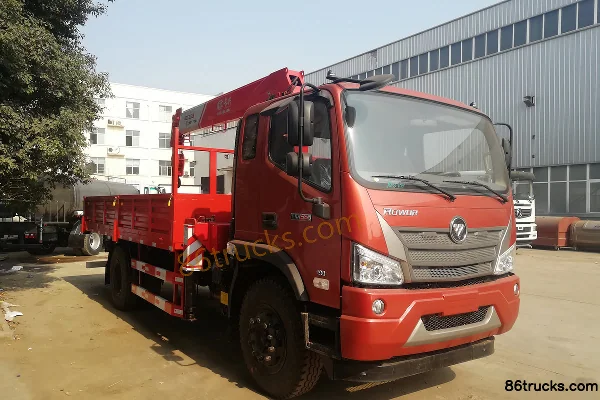

Foton Big Diamond ES5 190 hp 4X2(6 wheels) Truck-mounted Crane (5.143 ratio)
EXW
From $39,542
Export quote
Foton Dajingang ES5 light-duty truck truck-mounted
Main model photos
245 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Big Diamond ES5 190 hp 4X2(6 wheels) Truck-mounted Crane (5.143 ratio) | 4x2 / 190hp / China VI | From $39,542 | |
| Foton Big King ES5 160 hp 4X2(6 wheels) Truck Mounted Crane (China VI) | 4x2 / 160hp / China VI | From $29,903 | |
| Foton Big Diamond ES5 270hp 4X2(6 wheels) truck-mounted crane | 4x2 / 270hp / China VI | From $52,083 | |
| Foton Big Diamond ES5 220hp 4X2(6 wheels) truck-mounted crane | 4x2 / 220hp / China VI | From $48,597 | |
| Foton Big King ES5 190hp 4X2(6 wheels) Truck-mounted Crane | 4x2 / 190hp / China VI | From $39,014 |
Foton Big King ES5 160 hp 4X2(6 wheels) Truck Mounted Crane (China VI)
EXW
From $29,903
Export quote
Foton Big Diamond ES5 270hp 4X2(6 wheels) truck-mounted crane
EXW
From $52,083
Export quote
Foton Big Diamond ES5 220hp 4X2(6 wheels) truck-mounted crane
EXW
From $48,597
Export quote
Foton Big King ES5 190hp 4X2(6 wheels) Truck-mounted Crane
EXW
From $39,014
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Big King Kong ES5 190hp 4X2(6 wheels) Truck-mounted Crane (Zhongtao Brand) | 4x2 / 190hp / China VI |
Series Specs
Basic Info
Cab dimensions: 8.235×2.55×3.7 / 5.995×2.35×3.18 / 8.235×2.55×3.5 / 9×2.55×3.68 / 7.28×2.34×3.35m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 4500 / 3900 / 5250 / 5100mm
Rated mass: 7.205 / 2.385 / 5.805 / 6.82 / 6.415ton
GVWR: 16 / 8.28 / 18 / 14ton
Front/rear suspension: 1.26/2.475 / 1.18/1.455 / 1.29/2.61 / 1.235/2.145m
Energy Type: Diesel
Body Parameters
Crane model: SQ6.3SA4 / SQ3.2SA3 / ZTSQ805S / SPK18500A / SQ5.0SA3
Lifting capacity: 6 / 3.2 / 8 / 5ton
crane self-weight: 2.302 / 1.585 / 2.13ton
Vehicle certification code: BJ5164JSQHPDD-01 / BJ5084JSQGJEK-02 / ZTZ5160JSQBJ / BJ5184JSQKPFN-01 / BJ5144JSQKPDA-03
Body Brand: Foton / Zhongtao brand
Engine parameters
Engine Brand: Weichai / Yuchai
Engine Model: WeichaiWP4.1NQ190E61 / WeichaiWP3NQ160E61 / YuchaiYCS06270-60 / WeichaiWP4.6NQ220E61
Displacement: 4.088 / 2.97 / 6.23 / 4.58L
Emission standard: China VI
Max output power: 140 / 118 / 199 / 162kW
Max hp: 190 / 160 / 270 / 220Horsepower
Max torque: 680 / 480 / 1050 / 800N·m
Max torque speed: 1300-1900 / 1400-2300 / 1200-1700 / 1200-1800rpm
Rated speed: 2600 / 3000 / 2300rpm
Chassis Specs
Chassis Brand: Foton
Chassis Series: Big King Kong ES5
Chassis Model: BJ5164JQZHPDD-01 / BJ1084VGJEK-01 / BJ1184VKPFN-02 / BJ5144JQZKPDA-03
Frame Dimensions: 284×75×8+4-865 partial triple-layermm
rear axle description: 153Z-X / 1092Z / 153(10T) / 153 / 1098Z-X / 1098Z
Axle ratio: 5.143 / 5.286 / 5.833
Leaf spring count: 10/12+9 / 10/12+9,10/10+9,4/10+3,10/-
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85F / Fast Gear8JS85E / Fast Gear 8-speed / Fast Gear8JS110A / Fast Gear8JS85C
Cab parameters
Cab: Big King Kong ES5
Tire
Tire Size: 10.00R20 18PR,9.00R20 16PR / 7.50R16 14PR,8.25R16 14PR / 9.00R20 16PR / 10.00R20 18PR / 10.00R20 18PR,11R22.5 18PR,295/60R22.5 18PR,315/70R22.5 18PR / 9.00R20 16PR,8.25R20 16PR
Number of tires: 6pcs
FAQ
What kind of truck is Foton Foton Dajingang ES5 light-duty truck truck-mounted crane?
Foton Foton Dajingang ES5 light-duty truck is an export-oriented truck-mounted crane lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Dajingang ES5 light-duty truck truck-mounted?
Foton Dajingang ES5 light-duty truck truck-mounted export reference is about $29,903 – $52,083. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Dajingang ES5 light-duty truck truck-mounted cover?
Foton Dajingang ES5 light-duty truck truck-mounted mainly covers: Drive: 4x2; Horsepower: 160 hp / 190 hp / 220 hp / 270 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Dajingang ES5 light-duty truck truck-mounted?
For Foton Dajingang ES5 light-duty truck truck-mounted: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Foton Dajingang ES5 light-duty truck truck-mounted include?
Foton Dajingang ES5 light-duty truck truck-mounted currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Dajingang ES5 light-duty truck truck-mounted?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
