Xichai CA6DL2-22GG3U 220hp 8.6L China III Diesel Engine
EXW
Export quote
Xichai Aowei 6DL2 Series engine

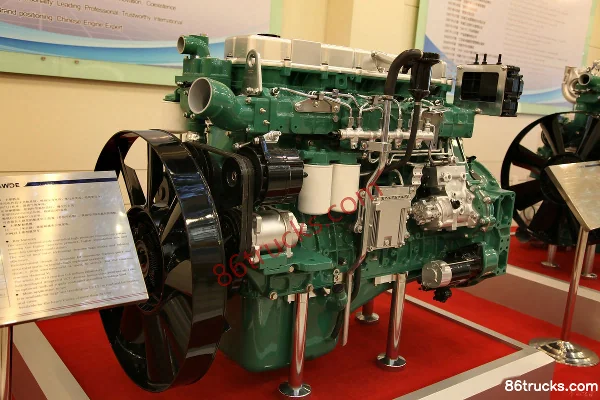

Main model photos
36 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Xichai CA6DL2-22GG3U 220hp 8.6L China III Diesel Engine | 220hp / China III / Euro III | ||
| Xichai CA6DL2-37E4U2 370hp 8.6L China IV Diesel Engine | 370hp / China IV | ||
| Xichai CA6DL2-35E4U2 350hp 8.6L China IV Diesel Engine | 350hp / China IV | ||
| Xichai CA6DL2-35E4U1 350hp 8.6L China IV Diesel Engine | 350hp / China IV | ||
| Xichai CA6DL2-37E4 370 hp 8.6L China IV Diesel Engine | 370hp / China IV |
Xichai CA6DL2-37E4U2 370hp 8.6L China IV Diesel Engine
EXW
Export quote
Xichai CA6DL2-35E4U2 350hp 8.6L China IV Diesel Engine
EXW
Export quote
Xichai CA6DL2-35E4U1 350hp 8.6L China IV Diesel Engine
EXW
Export quote
Xichai CA6DL2-37E4 370 hp 8.6L China IV Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: Aowei 6DL2 series / Xichai CA6DL2G3 series
Engine manufacturer: Xichai
Suitable Range: Off-road Loader / 11-13.7m coach, tour and large city bus; heavy-duty truck over 20 tons / 11-13.7m coach, tour and large city bus; heavy-duty truck over 20 tons, tractor truck, dump truck; construction machinery, generator set / 11-13.7m highway, tourist and city large bus / 20t+ heavy-duty cargo truck / 8m³ concrete mixer truck / 50 loader / 11-13.7m coach, tour and large city bus; heavy-duty truck over 20 tons; 8m³ concrete mixer truck; 50 loader / 11–13.7m highway, tourist and city large bus, over 20t heavy-duty cargo truck, 8m³ concrete mixer truck, 50 loader
Intake type: Turbocharged Air-to-Air Intercooling / Turbocharged intercooled, inline, direct injection, electronic common rail / Electronic common rail / Inline, direct injection, turbocharged, intercooled, electronically controlled unit pump / Inline, direct injection, turbocharged, intercooled, electronically controlled common rail / Turbocharged
Min. fuel consumption at full load: 192 / 197 / ≤192 / ≤194 / 195 / 196 / 194g/kW.h
Engine net weight: 900 / 840 / 830 / 870 / 900(EGR)/870(SCR) / 830 (excluding clutch, intercooler)kg
Engine Dimensions: 1285×820×1160 / 1308X778X986 / 1308X778X996mm
noise at 1m: 96 / ≤96 / ≤95dB
Compression ratio: 17.5
Bore × Stroke: 112×145mm
Valves per cylinder: 4pcs
firing order: 1-5-3-6-2-4
Engine Brand: Xichai
Engine Model: CA6DL2-22GG3U / CA6DL2-37E4U2 / CA6DL2-35E4U2 / CA6DL2-35E4U1 / CA6DL2-37E4 / CA6DL2-31E4U2 / CA6DL2-29E4 / CA6DL2-37E5 / CA6DL2-33E5 / CA6DL2-31E5 / CA6DL2-29E5 / CA6DL2G3-37E5R / CA6DL2G3-35E5R / CA6DL2-35E5 / CA6DL2-33E3 / CA6DL2-35E3U / CA6DL2-33E3U / CA6DL2-33E / CA6DL2-35E3F / CA6DL2-33E3F / CA6DL2-31E3F / CA6DL2-28E3F / CA6DL2-35E4 / CA6DL2-33E4(R) / CA6DL2-31E4(R) / CA6DL2-35E3 / CA6DL2-37E3
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.6 / 8.57 / 8.75L
Emission standard: China III / Euro III / China IV / China V
Max output power: 162 / 276 / 261 / 272 / 231 / 218 / 279 / 249 / 258 / 209kW
Max hp: 220 / 370 / 350 / 310 / 290 / 330 / 280Horsepower
Max torque: 960 / 1650 / 1500 / 1250 / 1550 / 1350 / 110N·m
Max torque speed: 1200-1500 / 1300-1500 / 1250-1500 / 1300-1470rpm
Rated speed: 2000 / 2100rpm
Engine Type: Electronic unit pump + turbocharged intercooled / 6-cylinder inline, 4-valve, direct injection, electronic common rail / Turbocharged intercooled, inline, direct injection, electronic common rail / Inline, direct injection, turbocharged, intercooled, electronically controlled unit pump / 6-cylinder inline, 4-valve, direct injection, electronic unit pump / 6-cylinder inline, 4-valve, direct injection, electronic common rail, IEGR+SCR aftertreatment / 6-cylinder inline, 4-valve, direct injection, electronic common rail, SCR aftertreatment / 6-cylinder inline, 4-valve, direct injection, electronic common rail, EGR aftertreatment / Inline, 4-stroke, water-cooled, 4-valve, turbocharged intercooled / Inline, direct injection, turbocharged, intercooled, electronically controlled common rail / 6-cylinder inline, direct injection, turbocharged intercooled, inline pump EGR / 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail / Inline, electronic, common rail, turbocharged, air-to-air intercooled
FAQ
What kind of truck is Xichai Xichai Aowei 6DL2 Series engine?
Xichai Xichai Aowei 6DL2 Series is an export-oriented engine lineup with about 27 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Xichai Aowei 6DL2 Series engine cover?
Xichai Aowei 6DL2 Series engine mainly covers: Horsepower: 220 hp / 350 hp / 370 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Xichai Aowei 6DL2 Series engine?
For Xichai Aowei 6DL2 Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Xichai Aowei 6DL2 Series engine include?
Xichai Aowei 6DL2 Series engine currently lists about 27 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Xichai Aowei 6DL2 Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
