Forland Linghang H2 130 hp 4X2(6 wheels) compression garbage truck (Chengliwei brand)
EXW
From $12,222
Export quote
Chengliwei Foton Forland Chassis garbage truck
Main model photos
58 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Forland Linghang H2 130 hp 4X2(6 wheels) compression garbage truck (Chengliwei brand) | 4x2 / 130hp / China VI | From $12,222 | |
| Foton Times Xiaoka Star 3 115 hp 4X2(6 wheels) Compressed Garbage Truck (China VI) (Chengliwei Brand) | 4x2 / 115hp / China VI | From $14,167 | |
| Foton Forland Xiaoka Star 2 95 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI) (Chengliwei Brand) | 4x2 / 95hp / China VI |

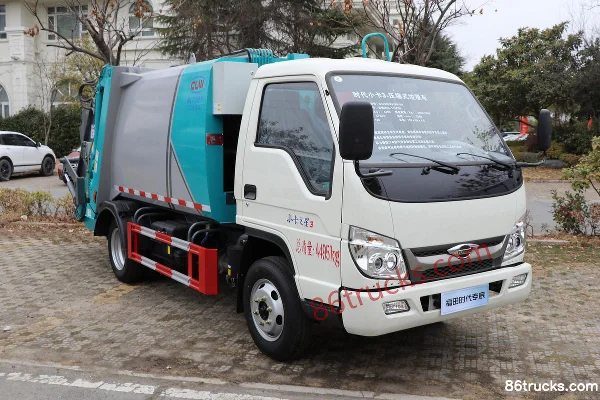

Foton Times Xiaoka Star 3 115 hp 4X2(6 wheels) Compressed Garbage Truck (China VI) (Chengliwei Brand)
EXW
From $14,167
Export quote

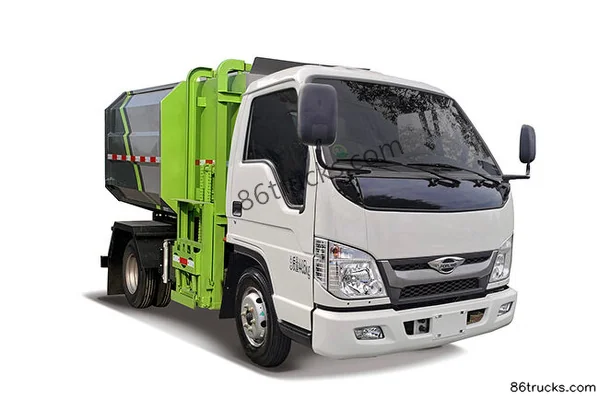

Foton Forland Xiaoka Star 2 95 hp 4X2(6 wheels) Self-loading Garbage Truck (China VI) (Chengliwei Brand)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Times Linghang Yuwei 52 hp 4X2(6 wheels) Garbage Truck (Chengliwei Brand) | 4x2 / 52hp / China III / Euro III |
Series Specs
Basic Info
Cab dimensions: 6.79×2.05×2.65 / 5.995×2.09×2.45 / 4.815×1.83×2.3 / 4.08×1.505×1.89m
Type: Compression-type garbage truck / self-loading garbage truck / Sealed refuse truck
Drive type: 4X2
Wheelbase: 3360 / 2850 / 2600 / 2370mm
Front/rear track width: 1550/1485 / Front: 1495mm; Rear: 1435 / Front: 1345mm; Rear: 1292 / 1260/1260
Rated mass: 1.995 / 0.4 / 1.765 / 0.45ton
GVWR: 7.36 / 4.495 / 1.995ton
Front/rear suspension: 1.13/2.01 / 1.13/1.71 / 1.115/1.1 / 0.795/0.915m
Energy Type: Diesel
Body Parameters
Special Function Description: Cargo box dimensions: 2.5×1.38×1.1m, top closed, non-openable, without OBD. Cab optional per chassis.
Vehicle certification code: CLW5070ZYSBDP / CLW5040ZYSBDP / CLW5041ZZZ6CD / CLW5020MLJB3
Body Brand: Chengliwei
Engine parameters
Engine Model: QuanchaiQ28-130E60 / QuanchaiQ23-115C60 / QuanchaiQ23-95C60 / Wuling Liuji LJ465Q3-1AE1
Displacement: 2.8 / 2.3 / 1.051L
Emission standard: China VI / China III / Euro III
Max output power: 96 / 85 / 70 / 38.5kW
Max hp: 130 / 115 / 95 / 52Horsepower
Rated speed: 3000rpm
Cargo box parameters
Box volume: 5m³
Chassis Specs
Chassis Brand: Foton Forland / Foton Times
Chassis Series: Linghang H2 / Mini Truck Star 3 / Mini Truck Star 2 / Yuwei
Chassis Model: BJ1076VEJDA-51 / BJ1045V9JB5-54 / BJ1045V9JB3-55 / BJ1020V3JV2-S
Frame Dimensions: 152×55×4.5 / 140×50×4-760mm
rear axle description: 3T rear axle / 130 / BJ121
Leaf spring count: 3/6+6 / 7/5+3 / -/5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed gearbox / WLYWLY5TS32 / MengwoMW5T20
Tire
Tire Size: 7.00R16LT 14PR / 6.50R16LT 10PR / 6.00R15 10PR / 165R13,175R13
Number of tires: 6 / 4pcs
FAQ
What kind of truck is Chengliwei Chengliwei Foton Forland Chassis garbage truck?
Chengliwei Chengliwei Foton Forland Chassis is an export-oriented garbage truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chengliwei Foton Forland Chassis garbage truck?
Chengliwei Foton Forland Chassis garbage truck export reference is about $12,222 – $14,167. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chengliwei Foton Forland Chassis garbage truck cover?
Chengliwei Foton Forland Chassis garbage truck mainly covers: Drive: 4x2; Horsepower: 52 hp / 95 hp / 115 hp / 130 hp; Emission: China III / Euro III / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Foton Forland Chassis garbage truck?
For Chengliwei Foton Forland Chassis garbage truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is garbage truck typically used for?
garbage truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei Foton Forland Chassis garbage truck include?
Chengliwei Foton Forland Chassis garbage truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Foton Forland Chassis garbage truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
