Foton Aoling Big Yellow Bee MINI Pro 170hp 4X2(6 wheels) 4.135m Refrigerated Truck
EXW
From $29,028
Export quote
Foton Bumblebee Medium Truck Refrigerated Truck
Main model photos
361 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aoling Big Yellow Bee MINI Pro 170hp 4X2(6 wheels) 4.135m Refrigerated Truck | 4x2 / 170hp / China VI | From $29,028 | |
| Foton Aoling Big Hornet MINI Edition 190hp 4X2(6 wheels) 5.6m Refrigerated Truck | 4x2 / 190hp / China VI | From $34,722 | |
| Foton Big Yellow Bee MINI 170hp 4X2(6 wheels) 5.1m Refrigerated Truck | 4x2 / 170hp / China VI | From $27,500 | |
| Foton Aoling Huangfeng MINI Edition 190hp 4X2(6 wheels) 5.05m refrigerated truck | 4x2 / 190hp / China VI | From $30,806 | |
| Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.82m Refrigerated Truck (Tianye Brand) | 4x2 / 220hp / China VI | From $38,694 |
Foton Aoling Big Hornet MINI Edition 190hp 4X2(6 wheels) 5.6m Refrigerated Truck
EXW
From $34,722
Export quote

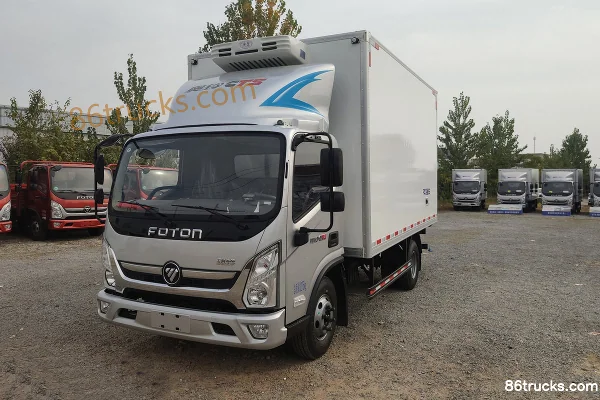

Foton Big Yellow Bee MINI 170hp 4X2(6 wheels) 5.1m Refrigerated Truck
EXW
From $27,500
Export quote
Foton Aoling Huangfeng MINI Edition 190hp 4X2(6 wheels) 5.05m refrigerated truck
EXW
From $30,806
Export quote

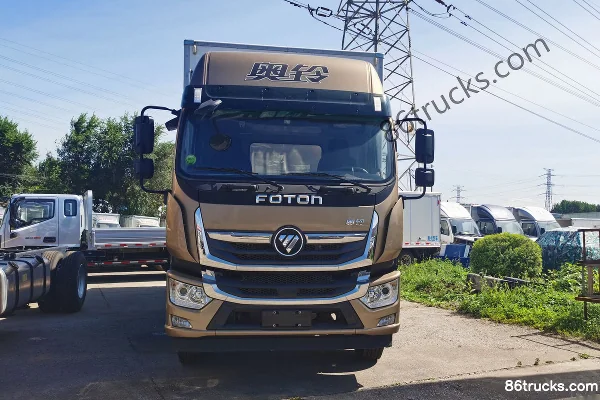

Foton Aoling Dahuangfeng Home Edition 220hp 4X2(6 wheels) 6.82m Refrigerated Truck (Tianye Brand)
EXW
From $38,694
Export quote
Series Specs
Basic Info
Cab dimensions: 6.415×2.6×3.595 / 8×2.45×3.81 / 7.445×2.44×3.48 / 7.495×2.6×3.815 / 9.12×2.6×3.95 / 9×2.6×3.95 / 12×2.6×3.95 / 9.58×2.45×2.5 / 8.9×2.6×3.95 / 6.4×2.46×3.575 / 7.67×2.6×3.95 / 10.5×2.6×3.95 / 12×2.6×3.85 / 10.3×2.6×3.95 / 8.995×2.6×3.85 / 8.425×2.6×3.85 / 10.82×2.6×3.85 / 8.32×2.6×3.95 / 10×2.6×3.85 / 10.025×2.6×3.85 / 8.32×2.6×3.85 / 10.5×2.6×3.85m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 3600 / 4200 / 3800 / 5150 / 5750 / 7300 / 4800 / 6100 / 4500mm
Vehicle origin: Shandong Zhucheng / Shenyang, Liaoning / Langfang, Hebei / Beijing Changping / Beijing
Front track width: 1705 / 1830 / 1955 / 2020 / 1960 / 1945 / 1970 / 1914mm
rear track: 1800 / 1840 / 1830mm
Curb Weight: 4.8 / 5.76 / 7.805 / 7.3 / 7.875 / 8.49 / 9.925 / 4.805 / 5.875 / 9.875 / 7.87ton
Rated payload: 6.925 / 12.045 / 4.995 / 9.995 / 10.505 / 9.315 / 7.88 / 7.995ton
GVWR: 11.92 / 18 / 9.99 / 17.995ton
Max. speed: 110 / 90 / 105 / 100 / 89km/h
Remarks: Optional ratio 4.875
Front/rear suspension: 1.13/1.265 / 1.225/2.275 / 1.13/2.065 / 1.225/2.07 / 1.27/2.7 / 1.27/2.58 / 1.27/3.43 / 1.27/3.48 / 1.27/2.13 / 1.27/2.2 / 1.27/3.005 / 1.27/3.28 / 1.27/2.25 / 1.27/2.355 / 1.27/3.45 / 1.27/2.98m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: FotonF3.8NS6B170 / FotonF4.5NS6B190 / FotonF4.5NS6B220 / YuchaiYCS06270-60 / YuchaiYCS06245-60A / YuchaiYCK05240-60 / YuchaiYC6JA260-50 / FotonISF4.5S5210 / FotonISF4.5S5185 / Yunnei PowerD45TCIE1
Number of cylinders: 4 / 6cylinder
Displacement: 3.8 / 4.5 / 6.23 / 5.13 / 6.87 / 4.46L
Emission standard: China VI / China V
Max output power: 125 / 140 / 162 / 199 / 180 / 176 / 191 / 154 / 136kW
Max hp: 170 / 190 / 220 / 270 / 245 / 240 / 260 / 210 / 185Horsepower
Max torque: 600 / 700 / 820 / 1050 / 950 / 900 / 985 / 760N·m
Rated speed: 2600 / 2300 / 2200 / 2500 / 2400rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Vertical, inline, water-cooled, four-stroke / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection / SCR
Cargo box parameters
Cargo box dimensions: 4.135×2.45×2.3 / 5.6×2.45×2.4 / 5.1×2.3×2.3 / 5.05×2.45×2.4 / 6.82×2.44×2.5 / 6.6×2.45×2.5 / 9.6×2.43×2.5 / 9.58×2.45×2.5 / 4.61×2.3×2.3 / 5.3×2.45×2.5 / 8.1×2.45×2.5 / 7.9×2.45×2.5 / 6×2.45×2.5 / 8.4×2.45×2.5 / 5.9×2.45×2.5 / 7.6×2.45×2.5m
Cargo box width: 2.45 / 2.3 / 2.44 / 2.43m
Cargo box height: 2.3 / 2.4 / 2.5m
Body Parameters
Vehicle certification code: BJ5128XLCGJFA-AB1 / BJ5188XLC-FM / BJ5108XLC-F3 / BJ5188XLCKPFG-AD1 / STY5180XLC / BJ5188XLCKPFK-AD1 / LHM5180XLCBJA3 / BJ5186XLC-2M / BJ5186XLC-1M / BJ5108XLCEJFD-AC1 / BJ5188XLCKPFN-AF1 / BJ5188XLC-A3 / BJ5166XLC-F1 / BJ5186XLC-1A / BJ5188XLC-A1 / BJ5186XLC-A3 / BJ5186XLC-A4 / BJ5186XLC-A1 / BJ5126XLC-A2 / BJ5166XLC-A4 / BJ5166XLC-A2 / BJ5186XLC-A2 / BJ5166XLC-A1
Body Brand: Foton / Tianye Brand
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling Bumblebee / Aoling Polar Bear / Bumblebee
Chassis Model: BJ1128VGJFA-AB1 / BJ1188VLPFD-FM / BJ1108VEJED-F3 / BJ1188VKPEG-AD1 / BJ1188VKPFK-AD1 / BJ5188XXYKPFN-AF1 / BJ5186XXY-2M / BJ1186VKPFK-1M / BJ1108VEJEA-AC1 / BJ5188XLC-A3 / BJ5166XXY-F1 / BJ5186XXY-1A / BJ1188VGPHK-A1 / BJ5186XXY-A3 / BJ1186VKPFK-A1 / BJ5188XXY-A3
rear axle description: 385/stamped welded integral axle housing / 8T / 385 / 416 / Stamped Welded Integral Axle Housing / EQ145/stamped welded integral axle housing / 340/stamped welded integral axle housing
Axle ratio: 4.33 / 4.875 / 4.556
Leaf spring count: 9/8+6 / 3/10+8 / 3/8+6 / 10/10+8 / 3/4+3
Transmission Parameters
Number of gears: 8 / 6Gear
Transmission Model: Fast Gear8JS75TE / ZFZF6S558 / Fast Gear8JS86TE / Fast Gear8JS85TE / 8-speed gearbox / ZF 6-speed / Fast Gear 8-speed / Fast Gear8JS85T / Fast Gear8JS105TA
Cab parameters
Cab: 2060 / Day Cab / 2200
Tire
Tire Size: 9.5R17.5 16PR / 275/80R22.5 18PR / 8.25R16LT / 11R22.5 18PR / 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR / 8.25R16LT 16PR / 10.00R20 18PR
Number of tires: 6pcs
FAQ
What kind of truck is Foton Foton Bumblebee Medium Truck Refrigerated Truck?
Foton Foton Bumblebee Medium Truck is an export-oriented Refrigerated Truck lineup with about 52 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Bumblebee Medium Truck Refrigerated Truck?
Foton Bumblebee Medium Truck Refrigerated Truck export reference is about $20,472 – $53,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Bumblebee Medium Truck Refrigerated Truck cover?
Foton Bumblebee Medium Truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 170 hp / 190 hp / 220 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Bumblebee Medium Truck Refrigerated Truck?
For Foton Bumblebee Medium Truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton Bumblebee Medium Truck Refrigerated Truck include?
Foton Bumblebee Medium Truck Refrigerated Truck currently lists about 52 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Bumblebee Medium Truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
