Sinotruk Wangpai W5G Heavy Truck 340hp 8X4(12 wheels) 9.4m Grille Van Cargo Truck
EXW
From $41,944
Export quote
Sinotruk Wangpai W5G near-heavy truck Cargo Trucks
Main model photos
85 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Wangpai W5G Heavy Truck 340hp 8X4(12 wheels) 9.4m Grille Van Cargo Truck | 8x4 / 340hp / China IV | From $41,944 | |
| Sinotruk King W5G Heavy Truck 340 hp 8X4(12 wheels) 9.4m Stake Cargo Truck Chassis | 8x4 / 340hp / China IV | From $40,000 |

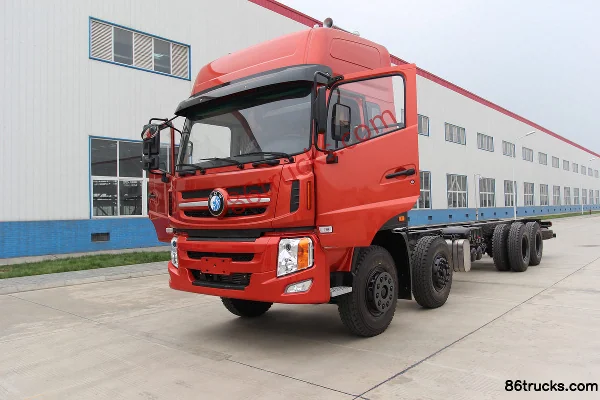

Sinotruk King W5G Heavy Truck 340 hp 8X4(12 wheels) 9.4m Stake Cargo Truck Chassis
EXW
From $40,000
Export quote
Series Specs
Basic Info
Model code (announced): CDW5310CCYA1T4 / CDW1310A1T4
Type: stake truck / Chassis
Drive type: 8X4
Wheelbase: 1850+4600+1350mm
Box length class: 9.4m
Engine Model: SinotrukMC07.34-40 / MC07.34-40
Transmission Model: SinotrukHW19712 / SinotrukHW13710DC
Rear Axle Ratio: 4.11 / 4.444
Cab length: 12m
Cab width: 2.5m
Cab height: 4 / 3.835m
Front track width: 2017/2017mm
rear track: 1860/1860mm
Curb Weight: 12.815ton
Rated payload: 17.99ton
GVWR: 31ton
Max. speed: 99 / 90km/h
Origin: Chengdu, Sichuan
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 8°
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Front/rear suspension: 1.53/2.67m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China IV
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12 / 10Gear
Number of Reverse Gears: 2pcs
FAQ
What kind of truck is Sinotruk Sinotruk Wangpai W5G near-heavy truck Cargo Trucks?
Sinotruk Sinotruk Wangpai W5G near-heavy truck is an export-oriented Cargo Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Wangpai W5G near-heavy truck Cargo Trucks?
Sinotruk Wangpai W5G near-heavy truck Cargo Trucks export reference is about $40,000 – $41,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Wangpai W5G near-heavy truck Cargo Trucks cover?
Sinotruk Wangpai W5G near-heavy truck Cargo Trucks mainly covers: Drive: 8x4; Horsepower: 340 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Wangpai W5G near-heavy truck Cargo Trucks?
For Sinotruk Wangpai W5G near-heavy truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Sinotruk Wangpai W5G near-heavy truck Cargo Trucks include?
Sinotruk Wangpai W5G near-heavy truck Cargo Trucks currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Wangpai W5G near-heavy truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
