Foton Auman 5 Series 210 hp 6X2(8 wheels) Chemical Liquid Transport Truck (Chusheng Brand)
EXW
Export quote
Chusheng Foton Auman chassis liquid transport truck
Main model photos
40 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Auman 5 Series 210 hp 6X2(8 wheels) Chemical Liquid Transport Truck (Chusheng Brand) | 6x2 / 210hp / China III / Euro III | ||

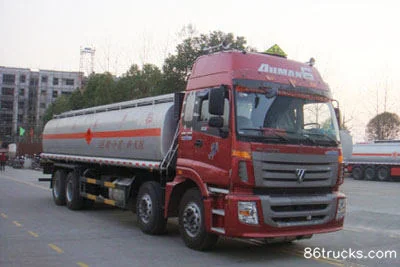

| Foton Auman 6 Series 336 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) | 8x4 / 336hp / China III / Euro III | ||

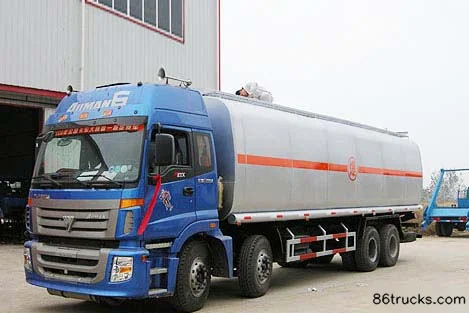

| Foton Auman 6 Series 310hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) | 8x4 / 310hp / China III / Euro III |
Series Specs
Basic Info
Cab dimensions: 10.4×2.49×3.35 / 12.0×2.5×3.5 / 11.9×2.5×3.55m
Drive type: 6X2 / 8X4
Truck Type: chemical liquid transport truck
Front/rear track width: Front track 1900/1900, rear track 1847 / Front track: 20202020mm; Rear track: 1865/1865mm / Front track: 1930/1930mm; Rear track: 1847/1847mm
Vehicle origin: Suizhou, Hubei
Wheelbase: 1860+4800 / 1800+4700+1350mm
Rated payload: 12 / 17.8 / 15ton
GVWR: 25 / 30.995 / 31ton
Max. speed: 90km/h
Front/rear suspension: 1.365/2.375 / 1.555/2.595 / 1.555/2.495m
Energy Type: Diesel
Body Parameters
Tank Size: 7.4×2.4×1.59 / 9.2×2.48×1.79 / 9.1×2.4×1.55m
Tank Volume: 18.9 / 30 / 23.8m3
Transport medium: Dimethylamine / Neopentane / hexane
Medium Density: 664 / 0.62 / 0.66ton/cubic meter
Vehicle certification code: CSC5250GHYB / CSC5313GHYB / CSC5311GHYB
Body Brand: Chusheng Brand
Others: Available with 15/20/25 m³ tank body / Available with 35/40 m³ tank / Available with 25/30/35 m³ tank body, cab optional per chassis. Side guard: symmetrical cold-formed channel steel/Q235-A, bolted. Rear guard: cold-formed channel steel/Q235-A, bolted
Chassis Specs
Front/rear axle description: 10T rear axle / Rear axle 13T
Chassis Brand: FotonAuman
Chassis Model: BJ5253GNFHH-S / BJ5313VNCJJ-S / BJ1317VNPJJ-S5
Leaf spring count: 10/10/10+9 / 13/14/12
Engine parameters
Engine Model: Lovol Perkins Phaser210Ti-30 / Weichai WP10.336 / Weichai WP10.310NE31
Number of cylinders: 6cylinder
Displacement: 5.99 / 9.726L
Emission standard: China III / Euro III
Max output power: 156 / 247 / 228kW
Max hp: 210 / 336 / 310Horsepower
Transmission Parameters
Number of gears: 7 / 12 / 9Gear
Transmission Model: Datong 7-speed / Shaanxi Gear 12-speed / Fast Gear 9-speed
Tire
Tire Size: 10.00-2018PR / 12.00R20 / 11.00-20
Number of tires: 8 / 12pcs
FAQ
What kind of truck is Chusheng Chusheng Foton Auman chassis liquid transport truck?
Chusheng Chusheng Foton Auman chassis is an export-oriented liquid transport truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chusheng Foton Auman chassis liquid transport truck cover?
Chusheng Foton Auman chassis liquid transport truck mainly covers: Drive: 6x2 / 8x4; Horsepower: 210 hp / 310 hp / 336 hp; Emission: China III / Euro III. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chusheng Foton Auman chassis liquid transport truck?
For Chusheng Foton Auman chassis liquid transport truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is liquid transport truck typically used for?
liquid transport truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chusheng Foton Auman chassis liquid transport truck include?
Chusheng Foton Auman chassis liquid transport truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chusheng Foton Auman chassis liquid transport truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
