Foton TS5 2.5L Diesel 185hp 4X2(6 wheels) Fast Gear 8-Speed 4.14m Single Row Van Light Truck
EXW
From $19,417
Export quote
Foton TS5 light-duty truck Cargo Trucks
Main model photos
27 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton TS5 2.5L Diesel 185hp 4X2(6 wheels) Fast Gear 8-Speed 4.14m Single Row Van Light Truck | 4x2 / 185hp / China VI | From $19,417 | |
| Foton TS5 2.5L Diesel 176hp 4X2(6 wheels) Fast Gear 10-Speed 4.17m Single Row Grating Light Truck | 4x2 / 176hp / China VI | From $23,333 | |
| Foton Ruowo TS5 176 hp 4X2(6 wheels) 3.83m single-row stake truck | 4x2 / 176hp / China VI | From $21,083 | |
| Foton Ruowo TS5 176 hp 4X2(6 wheels) 3.8m single-row van light truck | 4x2 / 176hp / China VI | From $21,361 | |
| Foton Ruowo TS5 176 hp 4X2(6 wheels) 3.83m single-row flatbed light truck | 4x2 / 176hp / China VI | From $20,528 |

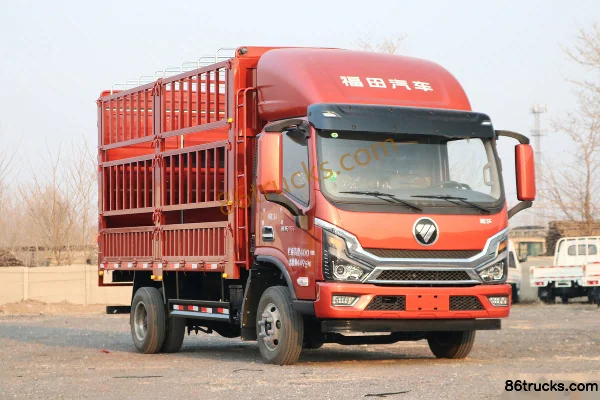

Foton TS5 2.5L Diesel 176hp 4X2(6 wheels) Fast Gear 10-Speed 4.17m Single Row Grating Light Truck
EXW
From $23,333
Export quote
Foton Ruowo TS5 176 hp 4X2(6 wheels) 3.83m single-row stake truck
EXW
From $21,083
Export quote
Foton Ruowo TS5 176 hp 4X2(6 wheels) 3.8m single-row van light truck
EXW
From $21,361
Export quote
Foton Ruowo TS5 176 hp 4X2(6 wheels) 3.83m single-row flatbed light truck
EXW
From $20,528
Export quote
Series Specs
Basic Info
Model code (announced): BJ5044XXY9JBA-55 / BJ5044CCY9JBA-55 / BJ1044V9JBA-55 / BJ5044CCY9JBA-54 / BJ5044XXY9JBA-54 / BJ1044V9JBA-54
Type: enclosed cargo truck / stake truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3600 / 3360mm
Box length class: 4.2 / 3.8m
Engine Model: FotonF2.5NS6B185A / Yunnei PowerD25TCIF180A / Yunnei PowerD25Pro+ / F2.5NS6B185A
Transmission Model: Fast Gear 8-speed / Fast Gear10JS90A-B / Fast Gear8J50TA / WLYWLY8GS46 / 10JS90A-B
Rear Axle Ratio: 4.875
Cab length: 5.99m
Cab width: 2.2 / 2060m
Cab height: 3.19 / 3.25 / 3.17 / 2.47 / 2.4m
Front track width: 1825 / 1745mm
rear track: 1800 / 1670mm
Curb Weight: 2.805 / 2.72 / 2.565ton
Rated payload: 1.495 / 1.58 / 1.735ton
GVWR: 4.495ton
Max. speed: 120km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Front/rear suspension: 1.13/1.5m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton / Yunnei Power
Engine info: Fukang 2.5L / Yunnei Power2.5L / De Wei D25
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.498 / 2.499L
Emission standard: China VI
Max output power: 136 / 129 / 125kW
Max hp: 185 / 176 / 170Horsepower
Max torque: 450N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Brand: Fast Gear / WLY
shift method: Manual
Forward gears: 8 / 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body / Stake type / stake body
Cargo box length: 4.14 / 4.17 / 3.83 / 3.8m
FAQ
What kind of truck is Foton Foton TS5 light-duty truck Cargo Trucks?
Foton Foton TS5 light-duty truck is an export-oriented Cargo Trucks lineup with about 14 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton TS5 light-duty truck Cargo Trucks?
Foton TS5 light-duty truck Cargo Trucks export reference is about $14,722 – $23,333. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton TS5 light-duty truck Cargo Trucks cover?
Foton TS5 light-duty truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 176 hp / 185 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton TS5 light-duty truck Cargo Trucks?
For Foton TS5 light-duty truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton TS5 light-duty truck Cargo Trucks include?
Foton TS5 light-duty truck Cargo Trucks currently lists about 14 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton TS5 light-duty truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
