Foton Aumark 3 Series 156hp 4X2(6 wheels) 4.085m refrigerated truck
EXW
Export quote
Foton 3 Series Light Truck Refrigerated Truck
Main model photos
435 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aumark 3 Series 156hp 4X2(6 wheels) 4.085m refrigerated truck | 4x2 / 156hp / China V | ||
| Foton Aumark 3 series 129 hp 4X2(6 wheels) refrigerated truck | 4x2 / 131hp / China V | From $13,528 | |
| Foton Aumark 3 Series 170 hp 4X2(6 wheels) 6.09m refrigerated truck | 4x2 / 168hp / China V | From $18,819 | |
| Foton Aumark 3 Series 130 hp 4X2(6 wheels) refrigerated truck | 4x2 / 130hp / China V | From $15,278 | |
| Foton Aumark 3 series 118 hp 4X2(6 wheels) 4.1m refrigerated truck | 4x2 / 118hp / China V | From $26,389 |
Foton Aumark 3 series 129 hp 4X2(6 wheels) refrigerated truck
EXW
From $13,528
Export quote
Foton Aumark 3 Series 170 hp 4X2(6 wheels) 6.09m refrigerated truck
EXW
From $18,819
Export quote

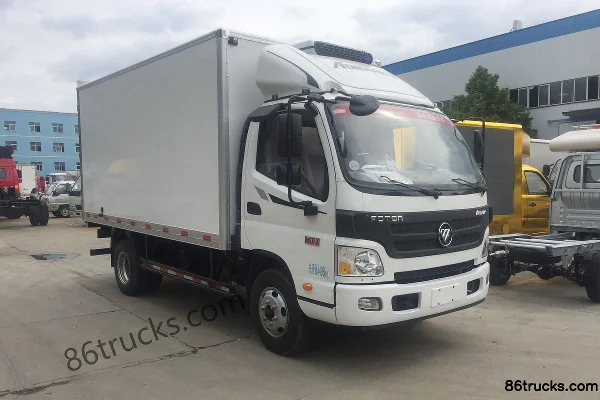

Foton Aumark 3 Series 130 hp 4X2(6 wheels) refrigerated truck
EXW
From $15,278
Export quote
Foton Aumark 3 series 118 hp 4X2(6 wheels) 4.1m refrigerated truck
EXW
From $26,389
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.26×3.32 / 5.995×1.97×3.1 / 8.48×2.39×3.66 / 5.995×2.15×3.1 / 5.995×2.2×3.02 / 7.745×2.18×3.365 / 6.995×2.2×3.2 / 5.995×2.15×2.9 / 6.995×2.22×3.32 / 6.995×2.23×3.1m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 3360 / 4500 / 4200 / 3800mm
Vehicle origin: Beijing
Front track width: 1590 / 1530 / 1680 / 16658 / 1710 / 1665 / 1730 / 1615mm
rear track: 1485 / 1710 / 1525 / 1630 / 1750 / 1590 / 1665mm
Curb Weight: 4.33 / 2.87 / 6.81 / 2.805 / 5.305 / 4.5 / 2.705 / 2.8 / 4.31ton
Rated payload: 3.75 / 1.495 / 4.99 / 4.495 / 4.8 / 3.99ton
Max. speed: 95 / 99 / 110km/h
Front/rear suspension: 1.12/1.515 / 1.085/1.55 / 1.195/2.585 / 1.095/1.54 / 1.12/2.125 / 1.12/2.075 / 1120/2075m
Energy Type: Diesel / Compressed Natural Gas (CNG)
Engine parameters
Injection System: Common Rail
Engine Model: FotonISF3.8E6154 / FotonISF2.8s5129T / FotonISF3.8s5168 / FotonISF2.8s5R117 / FotonISF3.8s5154 / Yunnei PowerYN38QNE / FotonISF3.8s5141 / FotonISF3.8s4R141 / FotonISF3.8s5R141 / Foton ISF2.8s4117V / FotonISF3.8s4R154
Number of cylinders: 4cylinder
Displacement: 3.76 / 2.78 / 3.762L
Emission standard: China V / China IV / China V (Beijing)
Max output power: 115 / 96 / 125 / 87 / 95 / 105kW
Max hp: 156 / 131 / 168 / 130 / 118 / 143 / 141 / 154Horsepower
Max torque: 500 / 300 / 592 / 260 / 491 / 360 / 440 / 450N·m
Rated speed: 2600 / 2900 / 3200 / 3000rpm
Engine Type: Electronically controlled high-pressure common rail / Turbocharged intercooled, Bosch high-pressure common rail, high-pressure direct injection, SCR / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR / HPCR+CEGR+DPF / Inline, 4-stroke, turbocharged intercooled, water-cooled, single-point electronic centralized injection system
Cargo box parameters
Box volume: 20 / 14.9m³
Cargo box dimensions: 4.805×2.1×2.1 / 4.085×1.8×1.85 / 6.09×2.17×2.21 / 4.085×1.98×1.85 / 5.1×2.17×2 / 5.07×1.97×1.92 / 4.085×1.94×1.75 / 5.04×2.05×2 / 4.085×1.9×1.75 / 5.04×1.94×1.86m
Cargo box width: 2.1 / 1.8 / 2.17 / 1.98 / 1.97 / 1.94 / 2.05 / 1.9m
Cargo box height: 2.1 / 1.85 / 2.21 / 2 / 1.92 / 1.75 / 1.86m
Body Parameters
Vehicle certification code: BJ5089XLC-A9 / BJ5049XLC-A3 / BJ5129XLC-A1 / BJ5049XLC-A5 / BJ5049XLC-A4 / BJ5109XLC-A2 / BJ5099XLC-A1 / BJ5049XLC-F1 / BJ5089XLC-A1 / BJ5049XLC-FA / BJ5089XLC-FB
Body Brand: Foton
Refrigeration unit: Thermo King, Carrier / Bingzhiyuan; Kaixue / Thermo King/Carrier/Kaixue/Bingzhiyuan
Refrigeration temperature: 25/-18/-10/-5/ / -25/-18/-10/-5°C
Others: Optional ratio 5.286 / Central door lock, power windows
Chassis Specs
Chassis Brand: Foton
Chassis Series: Auman Series 3 / Foton
Chassis Model: BJ5089XXY-A3 / BJ1049V9JD6-A1 / BJ1129VGPEG-A1 / BJ1049V9JD6-A3 / BJ1049V9JD6-A4 / BJ1109VEJED-A1 / BJ1099VBJCA-A1 / BJ1049V9JEA-FA / BJ1089VEJEA-A2 / BJ1049V9JD6-FE / BJ1089VEJEA-FB
Front axle description: 3T / 2.2T
Frame Dimensions: 233×75×7 / 195×60×5mm
rear axle description: 8T / 5.5T / 5T
Transmission Parameters
Number of gears: 6 / 5Gear
Transmission Model: WLYWLY651B / Fast Gear5J38T / DachiDC6J75TT / Jiangchi JC528 / WLY646B / WLY 6-speed / 5-speed gearbox / 651B
Cab parameters
Cab: 1995 / Auman Series 3 (1995) / Flat roof
FAQ
What kind of truck is Foton Foton 3 Series Light Truck Refrigerated Truck?
Foton Foton 3 Series Light Truck is an export-oriented Refrigerated Truck lineup with about 15 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton 3 Series Light Truck Refrigerated Truck?
Foton 3 Series Light Truck Refrigerated Truck export reference is about $13,528 – $27,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton 3 Series Light Truck Refrigerated Truck cover?
Foton 3 Series Light Truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 118 hp / 130 hp / 131 hp / 156 hp / 168 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton 3 Series Light Truck Refrigerated Truck?
For Foton 3 Series Light Truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton 3 Series Light Truck Refrigerated Truck include?
Foton 3 Series Light Truck Refrigerated Truck currently lists about 15 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton 3 Series Light Truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
