FARIZON Xinghan G Standard Load Edition 4X2(6 wheels) Electric Tractor Truck Xuanwu 660kWh
EXW
Export quote
FARIZON Xinghan G Series Electric Tractor Truck
Main model photos
22 photos
Models
On sale
FARIZON Xinghan G Standard Load Edition 4X2(6 wheels) Electric Tractor Truck CATL 600kWh
EXW
Export quote
FARIZON Xinghan G Standard Load Edition 4X2(6 wheels) Battery Swap Electric Tractor Truck CATL 513kWh
EXW
Export quote
FARIZON Xinghan G Super 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 528kWh
EXW
Export quote

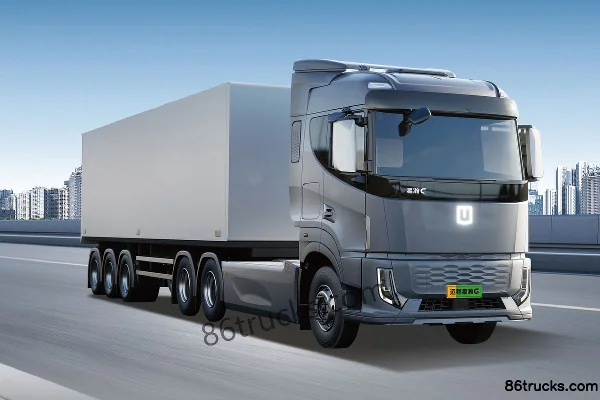

FARIZON Xinghan G Super 6X4(10 wheels) Battery Swap Electric Tractor Truck CATL 513kWh
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HN4180X27D4BEVY / HN4250X26D2BEVY / HN4250MX55C9SHEVY / HN4250MX45C9SHEVY / HN4250X27D2BEVY / JHC4250GMW6N1 / JHC4250GM6N1 / JHC4251GM6
Drive type: 4X2 / 6X4
Wheelbase: 4200 / 4400 / 3900+1350 / 4200+1350 / 3400+1350mm
Front/rear track width: Front track: 2070mm; Rear track: 1885mm / Front track: 2070mm; Rear track: 1860/1860mm / Front: 2070; Rear: 1850/1850 / Front: 2065; Rear: 1860/1860 / 2070/1850/1850
Cab length: 6.65 / 6.825 / 7.825 / 7.45 / 7.75 / 6.95 / 7.04m
Cab width: 2.55m
Cab height: 3.69 / 3.69/3.91 / 3.91 / 3.97 / 3.93m
Gross Trailer Weight: 31.87 / 38.27 / 37.77 / 36.57 / 38.37 / 37.42 / 40ton
CLTC range: 400km
Curb Weight: 10 / 10.6 / 11.1 / 12.3 / 10.5 / 11.45 / 8.87ton
GVWR: 18 / 25ton
Max. speed: 89 / 79km/h
battery swap support: Supported / Battery swap
Origin: Ma'anshan, Anhui / Shanxi Jinzhong
tonnage class: Heavy truck
market segment: Express & Freight
Remarks: Single bunk. / J4S280 without PTO / Standard: GS13M460H-60 engine, Fast Gear 12JSDX220TA-B transmission, 400L methanol tank; Optional: 12.3-inch MP5 + navigation / Standard: 180Ah battery, 510L+620L methanol tanks; Optional: 12.3-inch MP5 with navigation / Standard: GS13M460H-60 engine, Fast Gear 12JSDX220TA-B transmission; Optional: 10-inch multimedia screen / Methanol engine model: GS13M480H-60
Version: Standard Load Edition
electric motor
Motor 2 Brand: Bosch
Motor 2 Model: TZ230XY400
Motor 1 Brand: Bosch / Hualing
Motor 1 Model: TZ230XY400 / TZ230XS004/TZ230XS004 / TZ460XSHME14 / TZ460XSHME10 / TZ230XY100/TZ230XY100
Motor Type: Permanent magnet synchronous motor
Energy Type: Methanol / Electric / Hybrid
total rated power: 410 / 360 / 315 / 392kW
Peak power: 530 / 550 / 450kW
Motor 1 Peak Power: 265 / 255 / 550 / 450kW
Motor 2 Peak Power: 265 / 255kW
Number of drive motors: Dual Motor / Single motor
Engine parameters
Engine Brand: Hanma
Engine Model: GS15M540H-65 / GS09M350H-65
Number of cylinders: 6cylinder
Displacement: 14.55 / 8.87L
Emission standard: China VI
Max output power: 397 / 258kW
Max hp: 540 / 350Horsepower
Battery/Charging
Charging method: 4-gun 900A / Bottom battery swap / dual-gun 600A charging
Battery Brand: Xuanwu / CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 660 / 600 / 513 / 528 / 130 / 98 / 512.59kWh
FAQ
What kind of truck is FARIZON FARIZON Xinghan G Series Electric Tractor Truck?
FARIZON FARIZON Xinghan G Series is an export-oriented Electric Tractor Truck lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does FARIZON Xinghan G Series Electric Tractor Truck cover?
FARIZON Xinghan G Series Electric Tractor Truck mainly covers: Drive: 4x2 / 6x4. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FARIZON Xinghan G Series Electric Tractor Truck?
For FARIZON Xinghan G Series Electric Tractor Truck: 1) confirm destination emission; 2) pick drive by payload/route (long-haul heavy often 6×4); 3) choose horsepower; 4) compare reference price and photos. Then open a model for engine/gearbox and request a quote.
What is Electric Tractor Truck typically used for?
Electric Tractor Truck units mainly pull semi-trailers for line-haul, port and long-distance work. Focus on horsepower, drive and emission for your trailer and route.
How many models does FARIZON Xinghan G Series Electric Tractor Truck include?
FARIZON Xinghan G Series Electric Tractor Truck currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FARIZON Xinghan G Series Electric Tractor Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
