DDi47E260-60
EXW
Export quote
Dongfeng DDi Series engine
Main model photos
25 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| DDi47E260-60 | 260hp / China VI | ||
| DDi47E240-60 | 240hp / China VI | ||
| Dongfeng DDi90E430-60 430hp 8.9L China VI Diesel Engine | 400hp / China VI | ||
| Dongfeng Longqing DDi11E410-60 410hp 11L China VI Diesel Engine | 410hp / China VI | ||
| Dongfeng DDi13E480-60 480hp 13L China VI Diesel Engine | 480hp / China VI |
DDi47E240-60
EXW
Export quote
Dongfeng DDi90E430-60 430hp 8.9L China VI Diesel Engine
EXW
Export quote

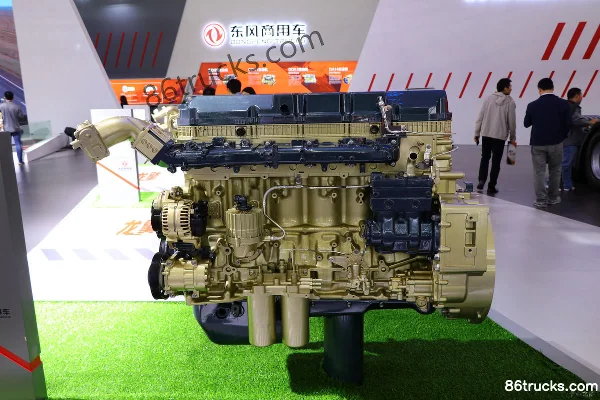

Dongfeng Longqing DDi11E410-60 410hp 11L China VI Diesel Engine
EXW
Export quote
Dongfeng DDi13E480-60 480hp 13L China VI Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: DDi series
Engine manufacturer: Dongfeng Commercial Vehicle Co., Ltd. / Dongfeng / Dongfeng Motor Co., Ltd. Commercial Vehicle Engine Plant
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 186 / 178 / 184 / 193 / 188 / 195 / 192g/kW.h
Engine net weight: 756 / 970 / 1020 / 425 / 708 / 500 / 995 / 700kg
Engine Dimensions: 1208×908×1012 / 1342×1028×1068 / 1543×1042×1147 / 902×889×899 / 1082×750×985 / 1326×1129×1068 / 1288×817×1121 / 958X778X890 / 1158X778X978 / 874X680X850mm
noise at 1m: 94 / 94.4 / 95.5 / 92 / 93dB
Compression ratio: 17.3 / 18 / 16.4:1 / 17.3：1 / 16.4：1 / 17.5：1
Bore × Stroke: 123×152 / 110x132 / 110×125 / 123×156mm
Valves per cylinder: 4pcs
Engine Brand: Dongfeng
Engine Model: DDi47E260-60 / DDi47E240-60 / DDi90E430-60 / DDi11E410-60 / DDi13E480-60 / DDi90E400-60 / DDi90E350-60 / DDi11E490-60 / DDi47E195-60 / DDi47E225-60 / DDi75E340-60 / DDi90E385-60 / DDi47E210-60 / DDi13E560-60 / DDi13E520-60 / DDi13E580-60 / DDi50E240-60 / DDi50S220-50 / DDi50E220-60 / DDi11E465-60 / DDi11E430-60 / DDi11E385-60 / DDi75E350-60 / DDi75E300-60 / DDi75E260-60 / DDi75S315-50 / DDi50E190-60 / DDi115S420-40 / DDi75S292-50 / DDi75S245-50 / DDi75S350-50 / DDi75S315-40 / DDi50S240-50 / DDi11S420-40 / DDi75S340-40 / DDi45S200-40
Number of cylinders: 4 / 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.75 / 8.9 / 10.8 / 12.9 / 7.5 / 5 / 7.53 / 11.12 / 7.52L
Emission standard: China VI / China V / China IV
Max output power: 191 / 177 / 316 / 309 / 353 / 294 / 257 / 360 / 143 / 166 / 250 / 283 / 154 / 410 / 382 / 425 / 162 / 161 / 343 / 324 / 295 / 220 / 190 / 232 / 147 / 305 / 215 / 180 / 248kW
Max hp: 260 / 240 / 400 / 410 / 480 / 350 / 490 / 195 / 225 / 340 / 385 / 210 / 560 / 520 / 580 / 220 / 465 / 430 / 300 / 315 / 190 / 420 / 292 / 245 / 415 / 335 / 200Horsepower
Max torque: 1900 / 2050 / 2400 / 1800 / 1700 / 2300 / 750 / 780 / 1350 / 2600 / 2500 / 2700 / 850 / 2240 / 2140 / 1935 / 1400 / 1200 / 1050 / 800 / 1000 / 1390 / 1345 / 650N·m
Max torque speed: 1100-1400 / 1000-1400 / 950-1400 / 1100-1500 / 1200-1600 / 1200-1700 / 1100-1800 / 1100-1600 / 1300-1600rpm
Rated speed: 1900 / 1800 / 2300 / 1700 / 2500 / 1200-1700rpm
Engine Type: Cooled EGR + DOC + DPF + SCR / Hot EGR+DOC+DPF+SCR / Inline, six-cylinder, four-valve, high-pressure common rail / Compression ignition, inline four-cylinder, high-pressure common rail + EGR (cooled) + DOC + DPF + SCR + ASC / 6-cylinder, inline, 4-stroke, 4-valve, common-rail direct injection, turbocharged intercooled / Inline 4-cylinder, 4-stroke, 4-valve, common rail direct injection, variable geometry turbocharger, overhead camshaft / Inline, 4-stroke, 4-valve, common-rail direct injection, turbocharged intercooled / multi-stage common rail high-pressure injection
FAQ
What kind of truck is Dongfeng Dongfeng DDi Series engine?
Dongfeng Dongfeng DDi Series is an export-oriented engine lineup with about 36 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Dongfeng DDi Series engine cover?
Dongfeng DDi Series engine mainly covers: Horsepower: 240 hp / 260 hp / 400 hp / 410 hp / 480 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng DDi Series engine?
For Dongfeng DDi Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Dongfeng DDi Series engine include?
Dongfeng DDi Series engine currently lists about 36 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng DDi Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
