Dongfeng Commercial Vehicle Tianlong KC 400 hp 8X4(12 wheels) Diesel AMT Automatic Truck-mounted Crane Truck
EXW
Export quote
Dongfeng Commercial Vehicle Dongfeng Tianlong KC
Main model photos
702 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianlong KC 400 hp 8X4(12 wheels) Diesel AMT Automatic Truck-mounted Crane Truck | 8x4 / 400hp / China VI | ||
| Dongfeng Commercial Vehicle Tianlong KC 360hp 8X4(12 wheels) 8.5m truck-mounted crane | 8x4 / 360hp / China VI | ||
| Dongfeng Commercial Vehicle Tianlong KC 340hp 6X4(10 wheels) 8.5m truck-mounted crane | 6x4 / 340hp / China VI | From $44,444 |

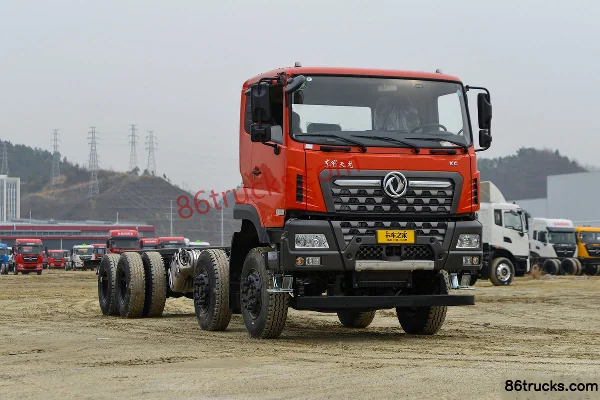

Dongfeng Commercial Vehicle Tianlong KC 360hp 8X4(12 wheels) 8.5m truck-mounted crane
EXW
Export quote
Dongfeng Commercial Vehicle Tianlong KC 340hp 6X4(10 wheels) 8.5m truck-mounted crane
EXW
From $44,444
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.55×3.85 / 12×2.55×3.8m
Type: Truck with crane / truck-mounted crane
Drive type: 8X4 / 6X4
Wheelbase: 2050+4400+1350 / 5700+1350mm
Rated mass: 12.97 / 6.07ton
Front track width: 2040/2040 / 2040mm
rear track: 1860/1860mm
GVWR: 31 / 25ton
Remarks: Knuckle boom crane: seven-section telescopic boom, max lifting torque 580 kN·m, working radius 18.2 m
Front/rear suspension: 1.5/2.7 / 1.5/3.45m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: Z8.5NS6B400F / Z8.5NS6B360F / DongfengDDi75E340-60
Displacement: 8.5 / 8 / 7.5L
Emission standard: China VI
Max output power: 294 / 250kW
Max hp: 400 / 360 / 340Horsepower
Body Parameters
Vehicle certification code: ABL5310JSQA15 / DFH5250JSQAX7A
Body Brand: Dongfeng / Baolu Suiche Brand / Dongfeng Commercial Vehicle
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Tianlong KC
Chassis Model: DFH1310A15 / DFH1250A7
rear axle description: 13T
Axle ratio: 4.88
Leaf spring count: 8/8/10 / 3/4
Transmission Parameters
Number of gears: 12 / 8Gear
Transmission Model: 12JSD180TAOD / 8-speed gearbox
Cargo box parameters
Cargo box length: 8.5m
Cargo box width: 2.45m
Cargo box height: 0.8m
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12 / 10pcs
Control configuration
ABS:
FAQ
What kind of truck is Dongfeng Commercial Vehicle Dongfeng Tianlong KC truck-mounted crane?
Dongfeng Commercial Vehicle Dongfeng Tianlong KC is an export-oriented truck-mounted crane lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Commercial Vehicle Dongfeng Tianlong KC?
Dongfeng Commercial Vehicle Dongfeng Tianlong KC export reference is about From $44,444. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Commercial Vehicle Dongfeng Tianlong KC cover?
Dongfeng Commercial Vehicle Dongfeng Tianlong KC mainly covers: Drive: 6x4 / 8x4; Horsepower: 340 hp / 360 hp / 400 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Commercial Vehicle Dongfeng Tianlong KC?
For Dongfeng Commercial Vehicle Dongfeng Tianlong KC: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dongfeng Commercial Vehicle Dongfeng Tianlong KC include?
Dongfeng Commercial Vehicle Dongfeng Tianlong KC currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Commercial Vehicle Dongfeng Tianlong KC?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
