SANY Group SANY special chassis concrete pump truck for Export — Specs & Quote

Models

Model	Drive / HP / Emission	EXW	Export quote
SANY Group 490 hp 10X4(14 wheels) 5-axle 65m Concrete Pump Truck	10x4 / 490hp / China V

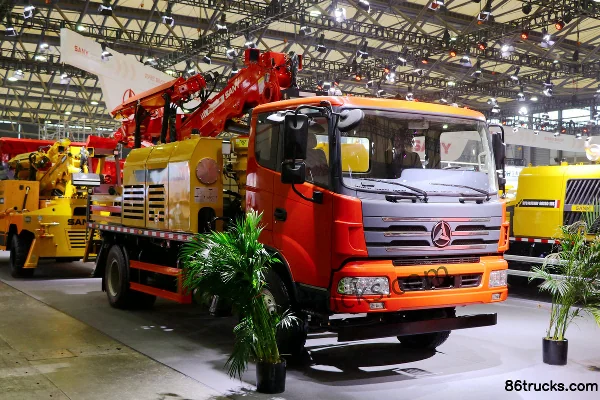

SANY Group 185 hp 4X2(6 wheels) Concrete Shotcrete Truck	4x2 / 185hp / China V

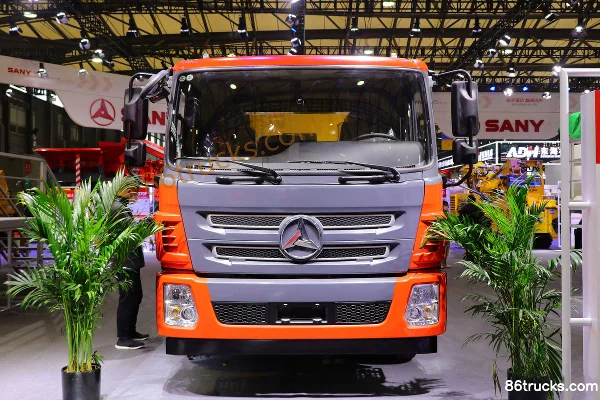

SANY 200hp 4X2(6 wheels) Truck Mounted Concrete Pump	4x2 / 200hp / China VI

Model

Drive / HP / Emission

EXW

Export quote

SANY Group 490 hp 10X4(14 wheels) 5-axle 65m Concrete Pump Truck

10x4 / 490hp / China V

SANY Group 185 hp 4X2(6 wheels) Concrete Shotcrete Truck

4x2 / 185hp / China V

SANY 200hp 4X2(6 wheels) Truck Mounted Concrete Pump

4x2 / 200hp / China VI

SANY Group 490 hp 10X4(14 wheels) 5-axle 65m Concrete Pump Truck

10x4 490hp China V

EXW

Export quote

Model details

Series Specs

Basic Info

Model code (announced): SYM5525THB / SYM5172TPJ / SY5143THBF

Pumping displacement: 180 / 30 / 100m³/h

Max pumping height: 65 / 17.5m

Drive type: 10X4 / 4X2

Wheelbase: 2260+3550+1350+1350 / 4700mm

Overall Dimensions: L×W×H: 14.88×2.55×4 / 9.24×2.5×3.04m

Max. travel speed: 90km/h

Curb Weight: 52 / 13.5ton

Chassis Specs

Axle Count: 5 / 2

Chassis Series: SANY Special Chassis

Chassis Model: SYM5530THB1E / SYM1181T1E / SYM1161T1F

Pumping system

Pumping displacement (low/high): 180m³/h

Delivery cylinder: bore × stroke: 260×1900mm

Boom Outriggers

Boom Vertical Height: 65m

Engine parameters

Engine Model: SANYD12C5-490E0 / YuchaiYC4EG185-50 / YuchaiYCS04200-68

fuel type: Diesel

Displacement: 12.12 / 4.73 / 4.16L

Emission standard: China V / China VI

Max output power: 360 / 136 / 147kW

Max hp: 490 / 185 / 200Horsepower

Rated speed: 2500 / 2300rpm

Transmission Parameters

Number of gears: 6Gear

Transmission Model: Fast Gear6J67T

Tire

Tire Size: 385/65R22.5 20PR/315/80R22.5 18PR / 10.00R20 18PR / 9.00R20

FAQ

What kind of truck is SANY Truck SANY Group SANY special chassis concrete pump truck?

SANY Truck SANY Group SANY special chassis is an export-oriented concrete pump truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What spec range does SANY Group SANY special chassis concrete pump truck cover?

SANY Group SANY special chassis concrete pump truck mainly covers: Drive: 4x2 / 10x4; Horsepower: 185 hp / 200 hp / 490 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in SANY Group SANY special chassis concrete pump truck?

For SANY Group SANY special chassis concrete pump truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.

What is concrete pump truck typically used for?

concrete pump truck specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does SANY Group SANY special chassis concrete pump truck include?

SANY Group SANY special chassis concrete pump truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for SANY Group SANY special chassis concrete pump truck?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
