Foton AumanCTX 6 Series Heavy Truck 340hp 8X4(12 wheels) 9.5m Curtainside Cargo Truck
EXW
From $42,014
Export quote
Foton Auman CTX Heavy Truck Cargo Trucks
Main model photos
28 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton AumanCTX 6 Series Heavy Truck 340hp 8X4(12 wheels) 9.5m Curtainside Cargo Truck | 8x4 / 340hp / China III / Euro III | From $42,014 | |

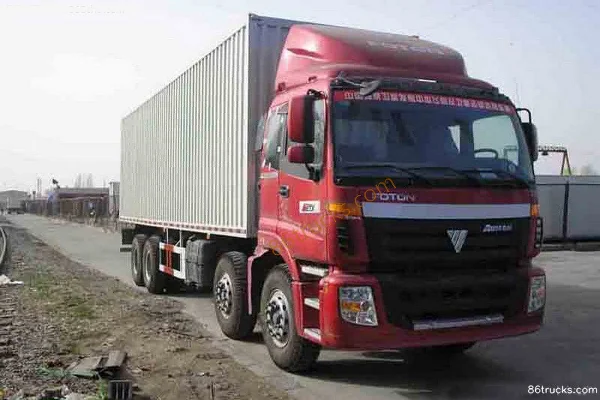

| Foton AumanCTX 6 Series Heavy Truck 340hp 8X4(12 wheels) 9.5m Van Cargo Truck | 8x4 / 340hp / China III / Euro III | From $42,361 | |

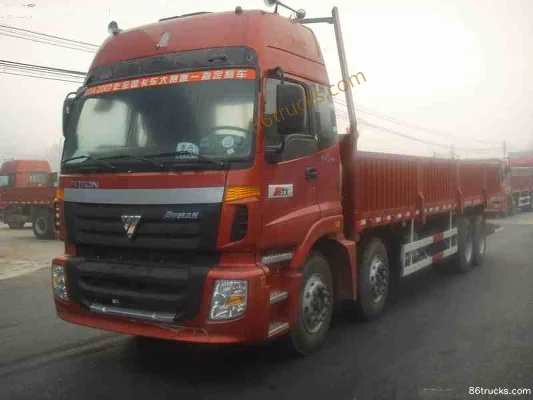

| Foton AumanCTX 6 Series Heavy Truck 340hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck | 8x4 / 340hp / China III / Euro III | From $42,500 | |
| Foton AumanCTX 6 Series Heavy Truck 315hp 8X4(12 wheels) 9.5m Curtainside Cargo Truck | 8x4 / 315hp / China III / Euro III | From $39,444 | |
| Foton AumanCTX 6 Series Heavy Truck 315hp 8X4(12 wheels) 9.5m Stake Cargo Truck | 8x4 / 315hp / China III / Euro III | From $39,028 |
Foton AumanCTX 6 Series Heavy Truck 340hp 8X4(12 wheels) 9.5m Van Cargo Truck
EXW
From $42,361
Export quote
Foton AumanCTX 6 Series Heavy Truck 340hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck
EXW
From $42,500
Export quote
Foton AumanCTX 6 Series Heavy Truck 315hp 8X4(12 wheels) 9.5m Curtainside Cargo Truck
EXW
From $39,444
Export quote
Foton AumanCTX 6 Series Heavy Truck 315hp 8X4(12 wheels) 9.5m Stake Cargo Truck
EXW
From $39,028
Export quote
Series Specs
Basic Info
Model code (announced): BJ5317VPPJJ-3 / BJ5317VPCJJ-2 / BJ1317VPPJJ-2 / BJ5317VPPJJ-2 / BJ5167VJCHH-S1 / BJ1253VMPHL-S / BJ1059VBPEA / BJ1129VHPEG-1 / BJ5317VPCJJ-1 / BJ1317VPPJJ-1 / BJ5163VJCHN-2 / BJ5253VMCHL-S / BJ5253VMCHH-S / BJ5163VJCHN-3 / BJ5253VMCHH-S1 / BJ1253VMPHH-S / BJ1167VJPHH-S/7980 / BJ5253VMCHH-1 / BJ5253VMCHL-S1
Type: Tilt / enclosed cargo truck / Cargo Trucks / stake truck
Drive type: 8X4 / 6X2 / 4X2
Wheelbase: 1800+4700+1350 / 1860+4800 / 1860+5600 / 3800 / 4700 / 5600mm
Box length class: 9.5 / 8.6 / 6.2 / 7.6 / 9.6m
Cab length: 12 / 10.995 / 11.965 / 6.995 / 8.48 / 9.99 / 11.995 / 11.125 / 11.13m
Cab width: 2.495 / 2.482 / 2.25 / 2.27 / 2.5 / 2.4 / 2.55m
Cab height: 3.44 / 3.87 / 2.95 / 2.35 / 2.45 / 3.95 / 3.57 / 3.78 / 3.85 / 3.9m
Front track width: 1930/1930 / 1900/1900 / 1685 / 1710 / 2010/2010 / 1900mm
rear track: 1847/1847 / 1847 / 1615 / 1680 / 1860/1860 / 1800mm
Curb Weight: 11.305 / 7.96 / 9.5 / 2.92 / 6.05 / 11.605 / 11.795 / 7.955 / 11.405 / 11.105 / 7.61 / 10.005 / 9.2 / 7.83 / 10 / 10.305ton
Rated payload: 19.5 / 7.85 / 15.305 / 1.995 / 5.995 / 19.2 / 19.01 / 13.4 / 13.7 / 7.995 / 14.8 / 15.605 / 7.98 / 14.5ton
GVWR: 31 / 16.005 / 25 / 12.24 / 16 / 15.8ton
Max. speed: 90 / 95 / 99km/h
Origin: Beijing
tonnage class: Heavy-duty cargo trucks / Heavy truck
market segment: Agricultural product transport, cold chain transport, logistics distribution, LTL transport, daily bulk cargo, daily industrial product transport / Construction material transport, agricultural byproduct transport, energy minerals / Agricultural product transport, green channel, industrial product transport / Building materials, agricultural products / Express delivery, agricultural by-product transport, cold chain transport, LTL transport / Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo
Remarks: Optional flat-top cab. Flat-top cab with optional air deflector. / Cargo floor to top height 2500mm. Optional high roof cab. Flat roof cab optional with deflector. High roof cab optional with sun visor / Optional ISDe21030 engine, optional high-top cab; high-top cab optional sun visor. / Optional front surround cover and front lights; fuel tank can be mounted on left side / Optional front grille panels and front lights / Height from cargo box floor to top of rack is 2500 mm; optional flat-top cab, flat-top cab with deflector. / Optional flat-top cab; flat-top cab with optional deflector; cargo box top closed, non-openable; optional side door; optional corrugated panel cargo box. / Cargo box top sealed, non-openable; optional deflector; optional painted steel cargo box; cargo box side doors can be sealed. / Cargo box top sealed, non-openable. Optional high-roof cab. Optional deflector; optional corrugated cargo box; optional side doors; high-roof cab optional sun visor. Optional Phaser210Ti-30 engine. / Cargo box top sealed, non-openable. Optional high-roof cab. Optional side doors; optional deflector; optional corrugated cargo box; high-roof cab optional sun visor. / Wing-opening box truck, cargo compartment top sealed, non-openable. Side wing panels of the cargo compartment can be opened. Optional deflector. Optional flat-top cab. / Cargo floor to rack top height: 2500mm. Optional high roof cab / Optional high-roof cab / Extended high-roof cab, vehicle height 3.5m / Cargo compartment top sealed, non-openable; optional side door cargo box; optional high-top cab; optional deflector; optional corrugated panel cargo body; optional lift hydraulic tailgate, tailgate weight 300kg. With tailgate, overall length 11295mm, rear overhang 3270mm. For 8600×2300×2500mm cargo box: curb weight 10005kg, rated payload 14800kg, payload utilization factor 1.49, overall length 10995mm; for 8600×2420×2500mm cargo box: curb weight 10205kg, rated payload 14600kg, payload utilization factor 1.44, overall length 10995mm. With tailgate, for 8600×2300×2500mm cargo box: curb weight 10305kg, rated payload 14500kg, payload utilization factor 1.42, overall length 11295mm; for 8600×2420×2500mm cargo box: curb weight 10505kg, rated payload 14300kg, payload utilization factor 1.37, overall length 11295mm. / Cargo floor to rack top height: 2500mm. Optional high roof cab. This vehicle can be equipped with Phaser210Ti-30 engine.
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng / Foton / Lovol Power
Engine Model: DongfengL340 30 / DongfengL315 30 / DongfengISDe185 30 / FotonISF3.8s3154 / FotonISF3.8s3168 / DongfengISLe340 30 / DongfengISLe310 30 / DongfengISDe160 30 / DongfengISDe210 30 / Lovol PowerPhaser210Ti-S30
Engine info: Dongkang 8.9L / Dongkang 6.7L / Fukang 3.8 / Dongkang 9L / Dongkang 6-cyl / Perkins 6-Cylinder
Number of cylinders: 6 / 4cylinder
Cylinder arrangement: Inline
Displacement: 8.9 / 6.7 / 3.76 / 4.5 / 5.99L
Emission standard: China III / Euro III
Max output power: 250 / 231 / 136 / 115 / 125 / 228 / 118 / 155 / 156kW
Max hp: 340 / 315 / 185 / 154 / 168 / 310 / 160 / 210Horsepower
Max torque: 1350 / 1180 / 700 / 500 / 600 / 1425 / 1200 / 800 / 737N·m
Max torque speed: 1400 / 1300 / 1200-1900 / 1300-1700 / 1100-1400 / 1000-1700 / 1400-1600rpm
Rated speed: 2200 / 2500 / 2600 / 2100rpm
Engine Type: Inline 6-cylinder with forced-cooled articulated pistons, capable of withstanding extremely high mechanical and thermal loads, strength comparable to heavy-duty engines; centrally arranged injector and symmetrical combustion chamber for more uniform mixture, more complete combustion, and lower emissions. EGR / Inline 6-cylinder with forced-cooled articulated pistons, capable of withstanding extremely high mechanical and thermal loads, strength comparable to heavy-duty engines; centrally arranged injector and symmetrical combustion chamber for more uniform mixture, more complete combustion, and lower emissions. Mechanical pump / Inline 6-cylinder, electronic control system, enhanced high-pressure common rail, particulate filter / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection / Inline 6-cylinder, electronic control system / Inline, electronic control system, enhanced high-pressure common rail, particulate filter / 4-stroke, water-cooled, inline, direct injection, dry cylinder liner
Transmission Parameters
Transmission Model: EatonETO-16109A / DachiDC7J80T-B / Fast Gear9JS135TB / DachiDC6J70T / DachiDC7J100T / DachiDC7J100TA / DachiDC6J65TA / DachiDC7J100TB
Transmission Brand: Eaton / Dachi / Fast Gear
shift method: Manual
Forward gears: 9 / 7 / 6Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Cargo box type: Van body / stake body / Stake type
Cargo box length: 9.53 / 9.45 / 8.6 / 4.75 / 6.2 / 7.55 / 9.58m
Cargo box width: 2.3 / 2.05 / 2.1m
FAQ
What kind of truck is Auman Foton Auman CTX Heavy Truck Cargo Trucks?
Auman Foton Auman CTX Heavy Truck is an export-oriented Cargo Trucks lineup with about 26 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Auman CTX Heavy Truck Cargo Trucks?
Foton Auman CTX Heavy Truck Cargo Trucks export reference is about $16,944 – $42,917. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Auman CTX Heavy Truck Cargo Trucks cover?
Foton Auman CTX Heavy Truck Cargo Trucks mainly covers: Drive: 8x4; Horsepower: 315 hp / 340 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Auman CTX Heavy Truck Cargo Trucks?
For Foton Auman CTX Heavy Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton Auman CTX Heavy Truck Cargo Trucks include?
Foton Auman CTX Heavy Truck Cargo Trucks currently lists about 26 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Auman CTX Heavy Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
