DAF LF Series Heavy Truck 4X2(6 wheels) Cargo Truck Chassis
EXW
Export quote
DAF LF Medium Truck Cargo Trucks

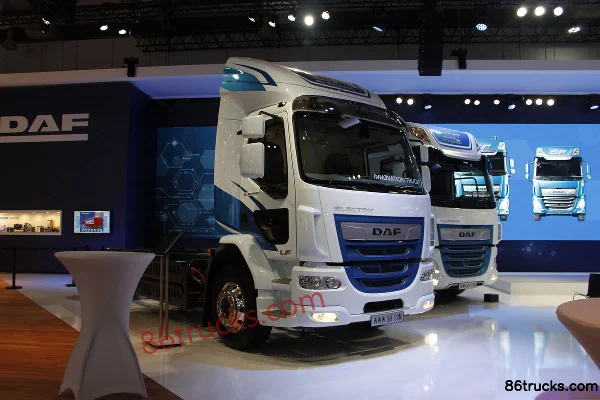

Main model photos
37 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| DAF LF Series Heavy Truck 4X2(6 wheels) Cargo Truck Chassis | 4x2 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| DAF LF Series Heavy Truck 295 hp 4X2(6 wheels) Cargo Truck Chassis (LF290FA) | 4x2 / 295hp / China VI | ||
| DAF LF Series Heavy Truck 295hp 4X2(6 wheels) Cargo Truck Chassis | 4x2 / 295hp / China VI | ||
| DAF LF Series Medium Truck 185 hp 4X2(6 wheels) Box Cargo Truck (LF45) | 4x2 / 185hp / China V |
DAF LF Series Heavy Truck 295 hp 4X2(6 wheels) Cargo Truck Chassis (LF290FA)
EXW
Export quote
DAF LF Series Heavy Truck 295hp 4X2(6 wheels) Cargo Truck Chassis
EXW
Export quote
DAF LF Series Medium Truck 185 hp 4X2(6 wheels) Box Cargo Truck (LF45)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): LF290FA
Type: Chassis / enclosed cargo truck
Drive type: 4X2
Wheelbase: 4150 / 5750 / 4650mm
Engine Model: PACCARPACCAR PX-7 / PACCARFR136
Cab length: 8.58m
Cab width: 2.18m
Cab height: 2.66m
Rated payload: 16 / 7.5ton
GVWR: 28ton
Origin: Netherlands
tonnage class: Medium-duty truck / Heavy-duty cargo trucks
Energy Type: Diesel
Engine parameters
Engine Brand: PACCAR
Engine info: PACCARPX7
Number of cylinders: 6cylinder
Cylinder arrangement: Inline
Displacement: 6.7 / 4.5L
Emission standard: China VI / China V
Max output power: 217 / 136kW
Max hp: 295 / 185Horsepower
Max torque: 1100 / 700N·m
Max torque speed: 1000-1700 / 1800rpm
Rated speed: 2300 / 2500rpm
Transmission Parameters
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis / Van body
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 152N / F60，6T
Front axle allowable load: 7500 / 3600kg
rear axle description: SR1132 / SR10.26，10.5T
rear axle allowable load: 11500 / 5000kg
Tire
Tire Size: 315/80R22.5 / 285/70R19.5 / 225/75R17.5
Number of tires: 6pcs
FAQ
What kind of truck is DAF DAF LF Medium Truck Cargo Trucks?
DAF DAF LF Medium Truck is an export-oriented Cargo Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does DAF LF Medium Truck Cargo Trucks cover?
DAF LF Medium Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 185 hp / 295 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DAF LF Medium Truck Cargo Trucks?
For DAF LF Medium Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does DAF LF Medium Truck Cargo Trucks include?
DAF LF Medium Truck Cargo Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DAF LF Medium Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
