Jinbei Dashen K5 2019 Elite 2.5T Diesel 140 hp 4WD Double Cab Pickup
EXW
From $16,222
Export quote
Mianyang Jinbei Hercules pickup truck
Main model photos
34 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Jinbei Dashen K5 2019 Elite 2.5T Diesel 140 hp 4WD Double Cab Pickup | 4WD / 140hp / China V | From $16,222 | |
| Jinbei Dashen K5 2019 Deluxe 2.5T Diesel 140 hp 4WD Double Cab Pickup | 4WD / 140hp / China V | From $15,944 | |
| Jinbei Dalishen K5 2019 Elite 2.5T Diesel 140hp 2WD Double Row Pickup | 2WD / 140hp / China V | From $13,861 | |
| Jinbei Dalishen K5 2019 Luxury 2.5T Diesel 140hp 2WD Double Row Pickup | 2WD / 140hp / China V | From $13,583 | |
| Jinbei Dalishen K5 2019 Elite 2.2L Gasoline 112hp 4WD Double Row Pickup (Beijing V) | 4WD / 112hp / China V (Beijing) | From $12,611 |

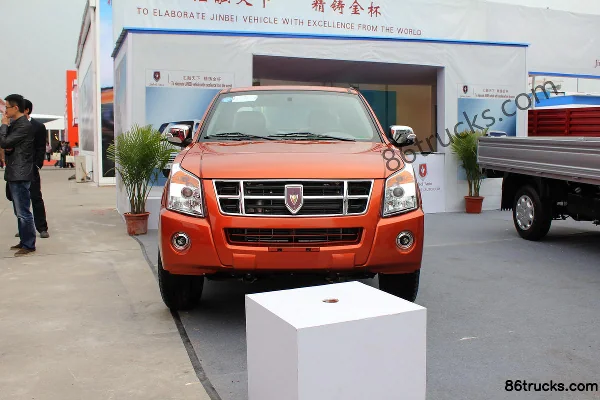

Jinbei Dashen K5 2019 Deluxe 2.5T Diesel 140 hp 4WD Double Cab Pickup
EXW
From $15,944
Export quote
Jinbei Dalishen K5 2019 Elite 2.5T Diesel 140hp 2WD Double Row Pickup
EXW
From $13,861
Export quote
Jinbei Dalishen K5 2019 Luxury 2.5T Diesel 140hp 2WD Double Row Pickup
EXW
From $13,583
Export quote

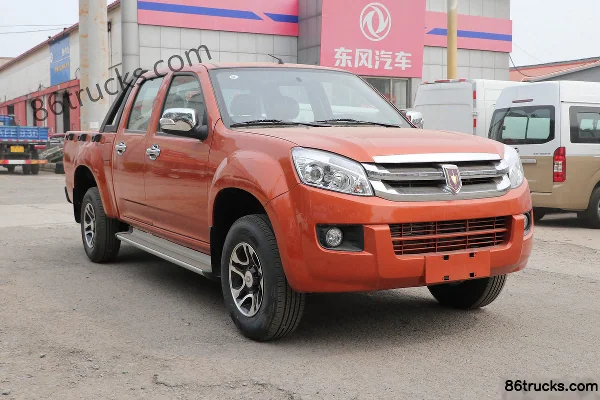

Jinbei Dalishen K5 2019 Elite 2.2L Gasoline 112hp 4WD Double Row Pickup (Beijing V)
EXW
From $12,611
Export quote
Series Specs
Basic Info
Model code (announced): SY1038DC524C / SY1038DC52C / SY1038DQ524C / SY1028DQ52C / SY1028HC33CL4 / SY1028HC33L4 / SY1028HC33 / SY1038HC42 / SY1028HC31 / SY1028HQ42 / SY1028HQ42C
Drive type: 4WD / 2WD
Wheelbase: 3380 / 3025mm
Min. turning diameter: 13 / 14 / 13.5m
Front/rear track width: Front: 1470mm; Rear: 1480 / Front: 1470mm; Rear: 1460 / Front track: 1470mm; Rear track: 1480 / Front track: 1470mm; Rear track: 1460mm / 1470/1460 / 1470/1480 / 1505/1476 / 1505/1460 / Front track: 1505mm; Rear track: 1476 / 1465/1460
Cab length: 5.49 / 5.44 / 5.085 / 5.54 / 5.47 / 5.015 / 5.315 / 5.37m
Cab width: 1.775 / 1.725m
Cab height: 1.8 / 1.758 / 1.83 / 1.73 / 1.715 / 1.69m
Approach/departure angle: 29/28 / 28/20°
Min ground clearance: 210 / 200cm
Curb Weight: 1.9 / 1.78 / 1.77 / 1.585 / 1.87 / 1.73 / 1.595 / 1.6 / 1.7 / 1.65 / 1.63 / 1.58 / 1.54 / 1.5 / 1.72 / 2.425ton
Rated payload: 0.495 / 0.49 / 0.59 / 0.5 / 0.45ton
GVWR: 2.72 / 2.6 / 2.59 / 2.405 / 2.475 / 2.455 / 2.425 / 2.365 / 2.325 / 2.545ton
Constant-speed fuel consumption per 100 km: 7.8 / 9.9 / 9.6 / 6.7 / 8.7L/100km
Max. speed: 130km/h
Origin: Mianyang / Shenyang
Model Year: 2009 Model / 2009
Remarks: Vanity mirror / Sun visor vanity mirror / Long wheelbase / Short wheelbase
Front/rear suspension: 0.845/1.265 / 0.77/1.32 / 0.77/1.22m
Version: Elite Type / Luxury / Standard / Standard version
Energy Type: Diesel / gasoline / Gasoline-CNG Dual Fuel
Engine parameters
Engine Model: Xinchen PowerXD25T5 / Xinchen PowerV22 / V22 / Xinchen PowerDK4B / Xinchen PowerD22A / Xinchen PowerJM491Q-ME / Sida 4D25U / DachaiCA4DC2-10E3
Number of cylinders: 4cylinder
Cylinder arrangement: Inline / L-Type
Displacement: 2.5 / 2.2 / 2.4 / 3.2L
Emission standard: China V / China V (Beijing) / China IV / China III / Euro III
Max output power: 103 / 82 / 85 / 75 / 76 / 65kW
Max hp: 140 / 112 / 102 / 116 / 103 / 88 / 76Horsepower
Max torque: 305 / 198 / 280 / 225 / 193 / 255 / 220 / 245N·m
Max torque speed: 1600-3400 / 2400-3600 / 2000-2600 / 1800-2600 / 2600-3200 / 1900-2100rpm
Rated speed: 3800 / 4200-4600 / 4000 / 3200rpm
Transmission Parameters
Number of gears: 6 / 5Gear
shift type: Manual
Transmission Model: 6-speed manual / 5-speed manual / 6-speed transmission / 5MT / 5-speed transmission
Chassis Specs
Front axle suspension type: Double wishbone independent suspension / Double wishbone torsion bar independent suspension
rear axle suspension type: Leaf spring non-independent suspension / Leaf spring
Chassis Structure: Body-on-frame
power steering type: hydraulic power steering
Cargo box parameters
Cargo box type: stake body
Cargo box length: 1.735 / 1.38 / 1.835m
FAQ
What kind of truck is Mianyang Jinbei Mianyang Jinbei Hercules pickup truck?
Mianyang Jinbei Mianyang Jinbei Hercules is an export-oriented pickup truck lineup with about 53 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Mianyang Jinbei Hercules pickup truck?
Mianyang Jinbei Hercules pickup truck export reference is about $9,278 – $16,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Mianyang Jinbei Hercules pickup truck cover?
Mianyang Jinbei Hercules pickup truck mainly covers: Drive: 2WD / 4WD; Horsepower: 112 hp / 140 hp; Emission: China V / China V (Beijing); Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Mianyang Jinbei Hercules pickup truck?
For Mianyang Jinbei Hercules pickup truck, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is pickup truck typically used for?
For pickup truck, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Mianyang Jinbei Hercules pickup truck include?
Mianyang Jinbei Hercules pickup truck currently lists about 53 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Mianyang Jinbei Hercules pickup truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
