Chusheng Dongfeng chassis water sprinkler truck

Main model photos

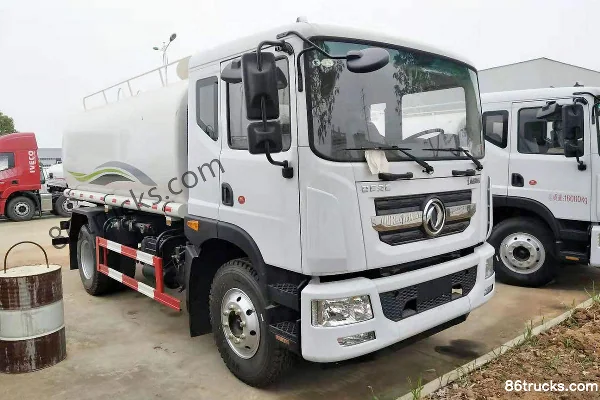

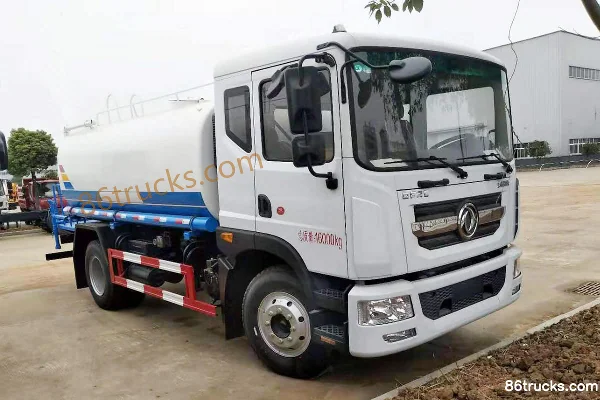

Dongfeng Duolika D7 156 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) Exterior Dongfeng Duolika D9 180 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) Exterior Dongfeng Duolika D9 160 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) Exterior

291 photos

Models

On sale

Model Drive / HP / Emission EXW Export quote
Dongfeng Duolika D6 170 hp 4X2(6 wheels) Green Sprinkler Truck (7-Speed) (Chusheng Brand) 4x2 / 170hp / China VI From $21,125
Dongfeng Duolika D6 170 hp 4X2(6 wheels) Green Sprinkler Truck (Chusheng Brand) 4x2 / 129hp / China VI From $19,972
Dongfeng Duolika D6 115hp 4X2(6 wheels) green sprinkler truck (Chusheng brand) 4x2 / 115hp / China VI From $15,208
Dongfeng Duolika D6 140 hp 4X2(6 wheels) Green Sprinkler Truck (Chusheng Brand) 4x2 / 140hp / China VI From $16,931
Dongfeng Duolika D6 129 hp 4X2(6 wheels) Green Sprinkler Truck (Chusheng Brand) 4x2 / 129hp / China VI From $16,347

Inventory

Model Drive / HP / Emission EXW Export quote
Dongfeng Duolika D6 150hp 4X2(6 wheels) water sprinkler truck (Chusheng brand) 4x2 / 150hp / China V
Dongfeng Duolika 120 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) 4x2 / 120hp / China III / Euro III
Dongfeng Duolika 120 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) 4x2 / 120hp / China III / Euro III
Dongfeng Duolika 102 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) 4x2 / 102hp / China III / Euro III
Dongfeng Duolika 140 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) 4x2 / 140hp / China III / Euro III

Series Specs

Basic Info
Cab dimensions: 7×2.2×2.85 / 5.995×2×2.3 / 7×2.35×2.85 / 7.5×2.5×3.3 / 6.5×2.05×2.82 / 8.15×2.5×3.3 / 5.99×1.98×2.16 / 5.99×1.98×2.35 / 7×2.1×2.5 / 7.0×2.1×2.5 / 6.995×2.3×2.58 / 6.995×2.3×2.55 / 5.8×2.14×2.3 / 6.9×2.3×2.35m
Truck Type: landscaping sprinkler truck / Water Sprinkler Truck
Drive type: 4X2
Vehicle origin: Suizhou, Hubei / Xiangyang, Hubei / Suizhou City, Hubei Province
Wheelbase: 3800 / 3308 / 4500 / 3950 / 3100mm
Front track width: 1745 / 1525 / 1862 / 1923 / 1503 / 1831 / 1770 / 1835mm
rear track: 1630 / 1498 / 1806 / 1865 / 1494 / 1620 / 1640 / 1602mm
Curb Weight: 4.6 / 2.865 / 7.23 / 3.6 / 6.7 / 3.23 / 4.255 / 4.205 / 4.3 / 8 / 4.295ton
Rated payload: 7.2 / 1.5 / 10.64 / 3.63 / 11.105 / 4 / 7 / 5 / 3ton
Max. speed: 103 / 110 / 105 / 99 / 95km/h
Front/rear suspension: 1.13/2.42 / 1.055/1.632 / 1.13/2.07 / 1.26/2.89 / 1.055/2.137 / 1.23/2.42 / 1.04/1.642 / 1.23/2.32 / 1.18/2.015 / 1.180/2.015 / 1.21/1.49 / 1.18/1.92m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 4.2×2×1.34 / 3.0×1.04×0.75 / 4.3×2.3×1.6 / 3.2×1.6×1.1 / 4.9×2.26×1.5 / 3.2×1.18×0.77 / 3.4×1.68×1.1 / 4.2×2.0×1.3 / 4.3×2.3×1.68 / 4.2×1.7×1.1 / 4.3×2.03×1.26 / 3.4×1.7×1.08 / 4×1.4×0.84m
Vehicle certification code: CSC5125GPS6 / CSC5045GPS6 / CSC5185GPS6 / CSC5075GPS6 / CSC5181GPS5 / CSC5041GPS5 / CSC5070GSS5 / CSC5112GSS5 / CSC5090GSS3 / CSC5112GSS3 / CSC5082GSS3 / CSC5070GSS3
Body Brand: Chusheng Brand
Others: Tank made of Q235 high-quality carbon steel plate, vehicle equipped with front flush, rear sprinkle, side spray, and high-pressure cannon for sprinkling functions; rear work platform can optionally be fitted with a mist cannon, equipped with fire hydrant water inlet, body-mounted dedicated water pump, equipped with pump-in and pump-out ports / Available in multiple tank volumes: 6/8 m³ water truck; effective tank volume 5.25 m³; tank dimensions: length 4200mm, major axis 1700mm, minor axis 1100mm. Cab selection available per chassis. / Available in 6 or 8 m³ / Tank cab selection follows chassis cab option. / Cab extended per chassis.
Engine parameters
Engine Model: ChaochaiCY4SK261 / ChaochaiCY4BK461 / QuanchaiQ23-115E60 / YuchaiYCY24140-60 / ChaochaiCY4SK361 / DongfengB6.2NS6B210 / DongfengD4.5NS6B220 / ChaochaiCY4SK761 / YuchaiYCS04200-68 / DongfengISB210 50 / YuchaiYC4FA115-50 / ChaochaiCY4BK551 / Xichai4DW93-84E5 / DongfengZD30D13-5N / Sida PowerSD4D25R-70 / DongfengD28D11-5DA / WeichaiWP2.3Q110E50 / YuchaiYCD4N4S-110 / Yunnei PowerD25TCIE2 / Xichai4DW94-95E5 / Quanchai4B2-115C50 / Yunnei PowerYNF40E1 / YuchaiYC4S150-50 / ChaochaiCY4SK251 / DongfengISB180 50 / YuchaiYC4S160-50 / Chaochai CY4102-C3C / Chaochai CY4102-E3C / Dongfeng ISDe140 30
Number of cylinders: 4 / 6cylinder
Displacement: 3.856 / 3.707 / 2.3 / 2.36 / 6.2 / 4.5 / 4.087 / 4.16 / 5.9 / 2.982 / 2.54 / 2.953 / 2.545 / 2.771 / 2.29 / 2.799 / 2.499 / 2.72 / 3.92 / 3.767 / 3.76L
Emission standard: China VI / China V / China III / Euro III
Max output power: 125 / 95 / 85 / 103 / 154 / 162 / 145 / 147 / 155 / 75 / 64 / 96 / 70 / 81 / 80 / 110 / 115 / 132 / 118 / 88 / 91kW
Max hp: 170 / 129 / 115 / 140 / 210 / 220 / 197 / 200 / 102 / 84 / 130 / 95 / 110 / 131 / 150 / 156 / 180 / 160 / 120Horsepower
Rated speed: 2600 / 3000 / 2950 / 2500 / 2300 / 3200 / 3600 / 2800rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / High-pressure common rail + EGR + DOC + DPF + SCR + ASC / SCR / Vertical, inline, water-cooled, four-stroke / Vertical water-cooled, four-stroke, turbocharged intercooled, electronic control high-pressure common rail, SCR / Common Rail+SCR / DOC+SCR / Electronic high-pressure common rail + SCR / 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train / Inline 4-cylinder, water-cooled, turbocharged & intercooled, electronic high-pressure common rail, SCR / Diesel engine / Inline / Inline 6-cylinder, electronic control system, enhanced high-pressure common rail, particulate filter
Cargo box parameters
Box volume: 7.56 / 1.57 / 11.1 / 3.81 / 15 / 1.96 / 4.2 / 7.35 / 11.24 / 8 / 10 / 3.15m³
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Dolika D6 / Dolika D7 / Dolika D9 / Duolika
Chassis Model: EQ1125SJ8CDC / EQ1045SJ3CDF / EQ1185LJ9CDE / EQ1075SJ3CDF / EQ1181LJ9BDE / EQ1041SJ3BDF / EQ1070SJ3BDF / EQ1110SJ8BDC / EQ1090T9ADJ3AC / EQ1110T9ADJ3AC / EQ1081TJ12D1 / EQ1070TJ9AD3
Front axle description: 3.9T / 2.7T / 4.5T / 6T / 1.8T / 2T / 1.5T / 2.5T
Frame Dimensions: 250mm double frame / 232mm double frame
rear axle description: 7T / 5.5T / 3.5T / 10T / 8T / 10T Dana axle / 4T / 3.6T / 5.6T / 4.5T
Axle ratio: 6.785
Leaf spring count: 8/10+7,12/12+9 / 6/6+5,3/3+3,2/3+2 / 8/10+7 / 6/6+5,3/3+3 / 6/6+5 / 11/9+7 / 11/9+7,8/10+7 / 7/8+5,8/10+7
Transmission Parameters
Number of gears: 7 / 6 / 5 / 8Gear
Transmission Model: WLYWLY7TS60 / WLYWLY6TS55 / WLYWLY5GT32 / WLYWLY6GT40 / WLYWLY5TS40 / DongfengDT0690 / Fast Gear8JS75 / Fast GearC6J75T / Dongfeng6S900 / WLY5-speed / Dongfeng 5-speed / Isuzu 5-speed / Fast Gear 8-speed / WLY 6-speed / Fast Gear8JS85C / Fast Gear6DS60T / WLY5TS40 / 6-speed transmission
Tire
Tire Size: 245/70R19.5 / 7.00R16 / 8.25R20 / 10.00R20 / 295/80R22.5 / 10.00R20,295/80R22.5 / 7.00R16 8PR / 8.25R20 14PR,245/70R19.5 / 8.25R20 14PR / 7.50-16 / 7.00R16，7.00-16.8.25-16,8.25R16 / 8.25-16,7.50-16,8.25R16,7.50R16
Number of tires: 6pcs

FAQ

What kind of truck is Chusheng Chusheng Dongfeng chassis water sprinkler truck?

Chusheng Chusheng Dongfeng chassis is an export-oriented water sprinkler truck lineup with about 44 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for Chusheng Dongfeng chassis water sprinkler truck?

Chusheng Dongfeng chassis water sprinkler truck export reference is about $11,250 – $29,000. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does Chusheng Dongfeng chassis water sprinkler truck cover?

Chusheng Dongfeng chassis water sprinkler truck mainly covers: Drive: 4x2; Horsepower: 102 hp / 115 hp / 120 hp / 129 hp / 140 hp / 150 hp / 170 hp; Emission: China III / Euro III / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in Chusheng Dongfeng chassis water sprinkler truck?

For Chusheng Dongfeng chassis water sprinkler truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.

What is water sprinkler truck typically used for?

water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does Chusheng Dongfeng chassis water sprinkler truck include?

Chusheng Dongfeng chassis water sprinkler truck currently lists about 44 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for Chusheng Dongfeng chassis water sprinkler truck?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.

Related series

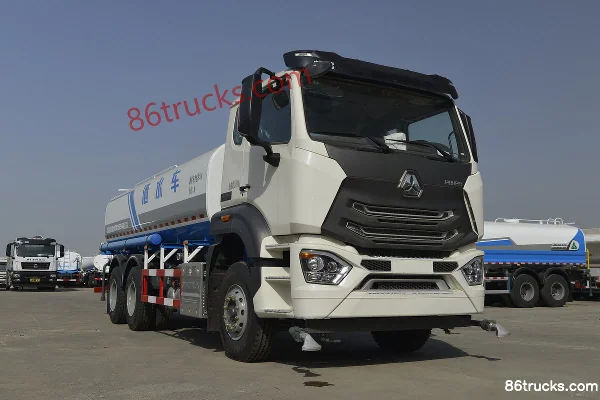

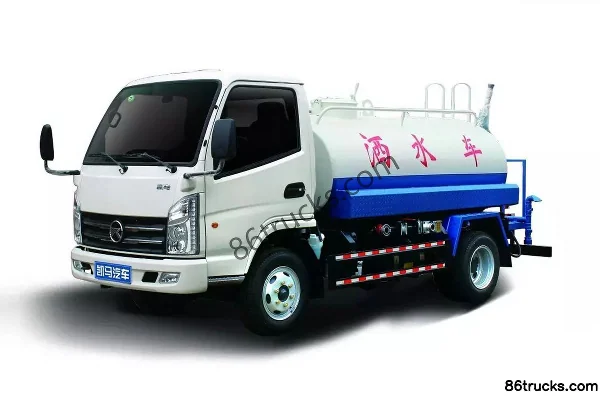

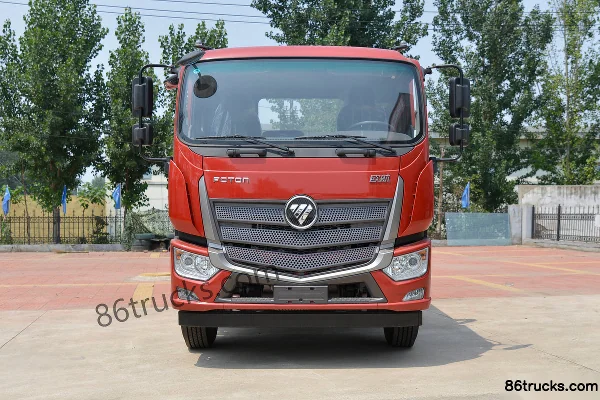

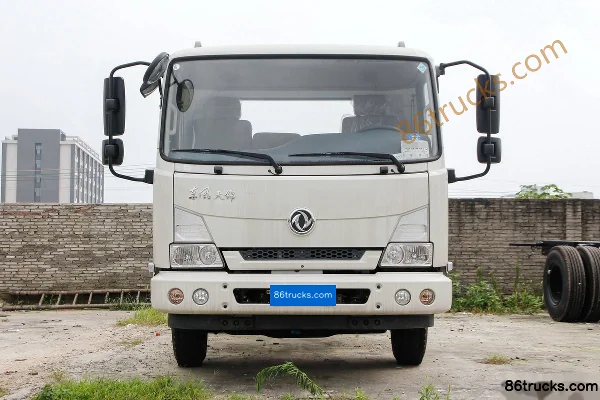

Tianweiyuan Tianweiyuan Dongfeng Commercial Vehicle Chassis water sprinkler truck Tianweiyuan Dongfeng Commercial Vehicle Chassis water sprinkler truck Tianweiyuan · 11 models Xinzhonglv (Zhongjie) Xinzhonglv (Zhongjie) Foton Chassis water sprinkler truck Xinzhonglv (Zhongjie) Foton Chassis water sprinkler truck Xinzhonglv (Zhongjie) · 3 models Kama Kama K6 light truck water sprinkler truck Kama K6 light truck water sprinkler truck Kama · 3 models Sinotruk Jinan Sinotruk (Luye) Sinotruk Chassis water sprinkler truck Jinan Sinotruk (Luye) Sinotruk Chassis water sprinkler truck Sinotruk · 4 models
Hubei Liwei (Zhongqi Liwei) Hubei Liwei (Zhongqi Liwei) Dongfeng chassis water sprinkler truck Hubei Liwei (Zhongqi Liwei) Dongfeng chassis water sprinkler truck Hubei Liwei (Zhongqi Liwei) · 14 models

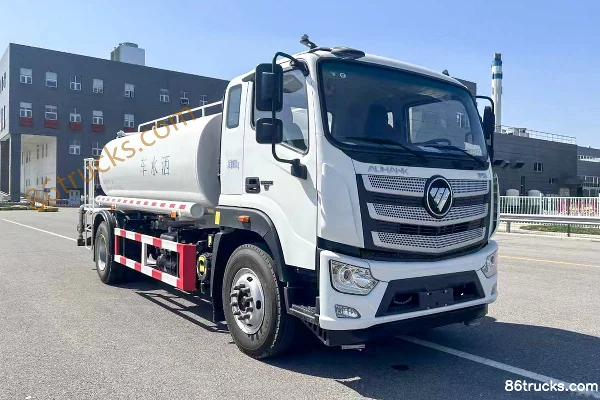

Sanxing Auto Sanxing Auto Foton Chassis water sprinkler truck Sanxing Auto Foton Chassis water sprinkler truck Sanxing Auto · 1 models
