Foton AumanGTL Star Wing Pro Edition 470 hp 8X4(12 wheels) Diesel Fast Gear 12-Speed 9.45m Refrigerated Truck
EXW
From $50,361
Export quote

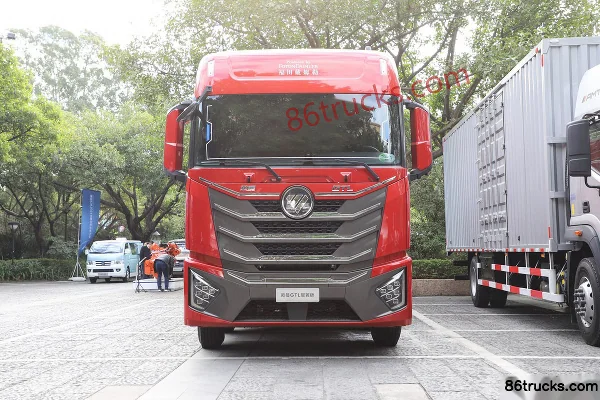

Foton Auman GTL Star Wing Edition Refrigerated Truck
Main model photos
136 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton AumanGTL Star Wing Pro Edition 470 hp 8X4(12 wheels) Diesel Fast Gear 12-Speed 9.45m Refrigerated Truck | 8x4 / 470hp / China VI | From $50,361 | |
| Foton AumanGTL Star Wing Pro Edition 520 hp 8X4(12 wheels) Diesel Fast Gear 12-Speed 9.45m Refrigerated Truck | 8x4 / 520hp / China VI | From $50,361 | |
| Foton AumanGTL Star Wing Pro Edition 470 hp 8X4(12 wheels) Diesel ZF 12-Speed AMT Automatic 9.45m Refrigerated Truck | 8x4 / 470hp / China VI | From $53,000 | |
| Foton Auman GTL Star Wing Pro Edition 520hp 8X4(12 wheels) Diesel ZF 12-speed AMT Automatic 9.45m Refrigerated Truck | 8x4 / 520hp / China VI | From $53,000 | |
| Foton Auman GTL Star Wing Pro Edition 320 hp 6X2(8 wheels) Diesel Fast Gear 9-speed 9.45m Refrigerated Truck | 6x2 / 320hp / China VI | From $39,528 |
Foton AumanGTL Star Wing Pro Edition 520 hp 8X4(12 wheels) Diesel Fast Gear 12-Speed 9.45m Refrigerated Truck
EXW
From $50,361
Export quote
Foton AumanGTL Star Wing Pro Edition 470 hp 8X4(12 wheels) Diesel ZF 12-Speed AMT Automatic 9.45m Refrigerated Truck
EXW
From $53,000
Export quote
Foton Auman GTL Star Wing Pro Edition 520hp 8X4(12 wheels) Diesel ZF 12-speed AMT Automatic 9.45m Refrigerated Truck
EXW
From $53,000
Export quote
Foton Auman GTL Star Wing Pro Edition 320 hp 6X2(8 wheels) Diesel Fast Gear 9-speed 9.45m Refrigerated Truck
EXW
From $39,528
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.6×3.995 / 12×2.6×3.95 / 12×2.6×4 / 8.8×2.6×4m
Drive type: 8X4 / 6X2 / 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Beijing / Huairou, Beijing
Wheelbase: 2100+4400+1350 / 2100+5400 / 4800mm
Front track width: 2080/2080 / 2020/2020 / 2020mm
rear track: 1880/1880 / 1880 / 1865 / 1830 / 1840mm
Curb Weight: 13 / 10.9 / 13.7 / 10.5 / 8.07ton
Rated payload: 17.87 / 13.97 / 18.17 / 14.37 / 9.8ton
GVWR: 31 / 25 / 32 / 18ton
Max. speed: 89km/h
Remarks: Optional ratio 2.643, 2.389
Front/rear suspension: 1.46/2.69 / 1.46/3.04 / 1.46/2.54m
Energy Type: Diesel
Engine parameters
Engine Model: X12NS6B470 / X12NS6B520 / A8.5NS6B320 / FotonA8.5NS6B360 / A8.5NS6B400 / A12NS6B520 / A10NS6B480 / YuchaiYCS06300-61
Number of cylinders: 6cylinder
Displacement: 11.8 / 8.5 / 11.82 / 9.92 / 6.442L
Emission standard: China VI
Max output power: 346 / 382 / 235 / 264 / 294 / 353 / 221kW
Max hp: 470 / 520 / 320 / 360 / 400 / 480 / 300Horsepower
Max torque: 2300 / 1350 / 1500 / 2200 / 1200N·m
Rated speed: 1900rpm
Cargo box parameters
Cargo box dimensions: 9.45×2.45×2.5 / 9.45×2.45×2.6 / 12×2.45×2.45 / 6.2×2.45×2.6m
Cargo box width: 2.45m
Cargo box height: 2.5 / 2.6 / 2.45m
Body Parameters
Vehicle certification code: BJ5319XLCY6GRL-01 / BJ5259XLCY6HPL-01 / BJ5329XLCY6GRL-02 / BJ5319XLCY6GRL-09 / BJ5269XLCY6HPL-03 / BJ5189XLCY6ANL-06
Body Brand: Auman
Chassis Specs
Chassis Brand: Auman
Chassis Series: Auman EST Star Edition / Auman GTL Star Wing Edition / GTL Star Wing Pro
Chassis Model: BJ1319Y6GRL-01 / BJ1259Y6HPL-01 / BJ1329Y6GRL-03 / BJ1269Y6HPL-03 / BJ1189Y6ANL-08
Front axle description: AM5 front axle
Frame Dimensions: 286×80×7 / 286×80×8 / 286mm
rear axle description: New 440 single reduction axle / 440 / 9t/368 Qingte axle
Steering gear: Domestic
Axle ratio: 2.643 / 2.533 / 3.7
Leaf spring count: 2/2/3 / 2/2/3+2 / 2/2/- / 3/4+3
Transmission Parameters
Number of gears: 12 / 9Gear
Transmission Model: Fast Gear12JSDX240TA / ZF12TX2420TD / 9JS119TA / ZF9AS1517TO
Cab parameters
Cab: High roof / Sleeper cab / High-roof flat floor
fuel tank
Fuel tank capacity: 850L
FAQ
What kind of truck is Auman Foton Auman GTL Star Wing Edition Refrigerated Truck?
Auman Foton Auman GTL Star Wing Edition is an export-oriented Refrigerated Truck lineup with about 13 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton Auman GTL Star Wing Edition Refrigerated Truck?
Foton Auman GTL Star Wing Edition Refrigerated Truck export reference is about $39,528 – $55,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton Auman GTL Star Wing Edition Refrigerated Truck cover?
Foton Auman GTL Star Wing Edition Refrigerated Truck mainly covers: Drive: 6x2 / 8x4; Horsepower: 320 hp / 470 hp / 520 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton Auman GTL Star Wing Edition Refrigerated Truck?
For Foton Auman GTL Star Wing Edition Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton Auman GTL Star Wing Edition Refrigerated Truck include?
Foton Auman GTL Star Wing Edition Refrigerated Truck currently lists about 13 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton Auman GTL Star Wing Edition Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
