FAW Jiefang Qingdao Han V 260hp 6X2(8 wheels) 9.5m Flammable Liquid Box Truck (435 Rear Axle)
EXW
From $32,708
Export quote
FAW Jiefang Qingdao HanV heavy truck Explosives
Main model photos
589 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao Han V 260hp 6X2(8 wheels) 9.5m Flammable Liquid Box Truck (435 Rear Axle) | 6x2 / 260hp / China V | From $32,708 | |
| FAW Jiefang Qingdao Han V 260hp 6X2(8 wheels) 9.5m Flammable Liquid Box Truck | 6x2 / 260hp / China V | From $32,708 | |
| FAW Jiefang Qingdao Han V 220 hp 4X2(6 wheels) 7.8m flammable liquid van truck | 4x2 / 220hp / China V | From $27,778 | |

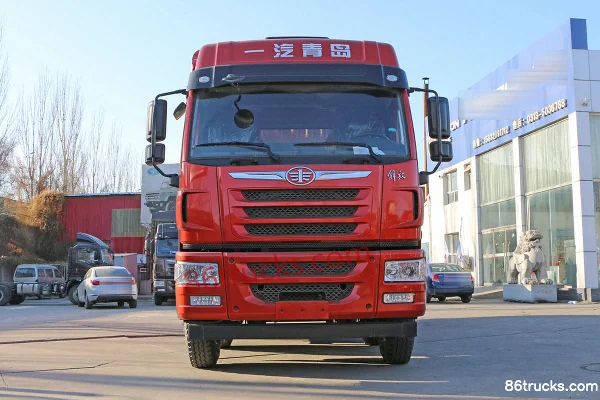

| FAW Jiefang Qingdao HanV 260hp 8X2(10 wheels) 8.6m Miscellaneous Dangerous Goods Van Truck | 8x2 / 260hp / China V | From $38,056 | |
| FAW Jiefang Qingdao HanV 260hp 8X2(10 wheels) 9.5m Miscellaneous Dangerous Goods Van Truck | 8x2 / 260hp / China V | From $37,778 |
FAW Jiefang Qingdao Han V 260hp 6X2(8 wheels) 9.5m Flammable Liquid Box Truck
EXW
From $32,708
Export quote
FAW Jiefang Qingdao Han V 220 hp 4X2(6 wheels) 7.8m flammable liquid van truck
EXW
From $27,778
Export quote
FAW Jiefang Qingdao HanV 260hp 8X2(10 wheels) 8.6m Miscellaneous Dangerous Goods Van Truck
EXW
From $38,056
Export quote
FAW Jiefang Qingdao HanV 260hp 8X2(10 wheels) 9.5m Miscellaneous Dangerous Goods Van Truck
EXW
From $37,778
Export quote
Series Specs
Basic Info
Cab dimensions: 11.995x2.55x3.995 / 10.185x2.55x3.995 / 11.04x2.55x3.995 / 11.995x2.55x3.99m
Type: Flammable liquid van truck / Miscellaneous dangerous goods van truck
Drive type: 6X2 / 4X2 / 8X2 / 8X4
Front/rear track width: Front: 1964/1964mm; Rear: 1860 / Front: 1914mm; Rear: 1860 / Front: 1964/1964mm; Rear: 1960/1847 / Front: 1964/1964mm; Rear: 1847/1847
Wheelbase: 1900+5650 / 5700 / 1900+4160+1350 / 1900+4500+1350mm
Rated mass: 14.355 / 8.72 / 19.075 / 19.14 / 18.505ton
GVWR: 10.45 / 18 / 31ton
Max. speed: 80km/h
Front/rear suspension: 1.375/3.07 / 1.332/3.153 / 1.375/2.255 / 1.375/2.87 / 1.375/2.25m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-26E5 / XichaiCA6DLD-22E5 / XichaiCA6DL1-26E5 / XichaiCA6DL1-32E5
Number of cylinders: 6cylinder
Displacement: 6.6 / 7.7L
Emission standard: China V
Max output power: 194 / 164 / 195 / 238kW
Max hp: 260 / 220 / 320Horsepower
Max torque: 1050 / 860 / 1250N·m
Max torque speed: 1300-1700 / 1300-1600rpm
Rated speed: 2300rpm
Body Parameters
Transport medium: copper waste, nickel waste / Adhesive, coating, coating solution, kerosene, benzene, methanol, ethanol, acetone, toluene, xylene
Vehicle certification code: CA5252XRYP1K2L7T3E5A80 / CA5182XRYPK2L5E5A80 / CA5310XRYP1K2L7T10E5A80 / CA5310XZWP1K2L7T4E5A80
Body Brand: FAW Jiefang Qingdao
Cargo box parameters
Cargo box dimensions: 9.5x2.45x2.6 / 7.8x2.5x2.6 / 8.6x2.5x2.6 / 9.5x2.5x2.6 / 9.5x2.48x2.6m
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: HanV / FAW Jiefang Han V
Chassis Model: CA1252P1K2L7T3BE5A80 / CA5182XXYPK2L5BE5A80 / CA1310P1K2L7T10BE5A80 / CA1310P1K2L7T4BE5A80
rear axle description: 435 stamped-welded axle (ratio 4.111) / 457 stamped-welded axle (ratio 4.444) / 378 cast axle / 457 stamped-welded axle / 435 upgraded stamped-welded axle
Leaf spring count: 12/12/10+9 / 7/7+3 / 12/12/6+-/10+9,3/3/6+-/10+9,10/10/6+-/10+9 / 12/12/6+-/10+9,3/3/6+-/10+9 / 12/12/10,10/10/10,3/3/4
Transmission Parameters
Number of gears: 8 / 9Gear
Transmission Model: Fast Gear8JS105A / Fast Gear8JS85C / Fast Gear9JS119A / Fast Gear9JSD135A
Tire
Tire Size: 12R22.5 / 11.00R20,12R22.5 / 10.00R20 / 295/80R22.5 / 11.00R20 / 11.00-20,11.00R20,12R22.5,295/80R22.5,275/80R22.5
Number of tires: 8 / 6 / 10 / 12pcs
FAQ
What kind of truck is FAW Jiefang Qingdao FAW Jiefang Qingdao HanV heavy truck Explosives Transport Truck?
FAW Jiefang Qingdao FAW Jiefang Qingdao HanV heavy truck is an export-oriented Explosives Transport Truck lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Qingdao HanV heavy truck Explosives?
FAW Jiefang Qingdao HanV heavy truck Explosives export reference is about $27,778 – $43,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Qingdao HanV heavy truck Explosives cover?
FAW Jiefang Qingdao HanV heavy truck Explosives mainly covers: Drive: 4x2 / 6x2 / 8x2; Horsepower: 220 hp / 260 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Qingdao HanV heavy truck Explosives?
For FAW Jiefang Qingdao HanV heavy truck Explosives: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does FAW Jiefang Qingdao HanV heavy truck Explosives include?
FAW Jiefang Qingdao HanV heavy truck Explosives currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Qingdao HanV heavy truck Explosives?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
