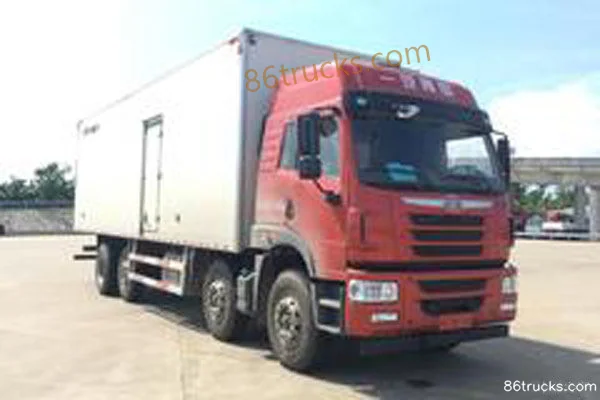

FAW Jiefang Qingdao HanV 260hp 6X2(8 wheels) 7.7m refrigerated truck
EXW
From $28,889
Export quote
FAW Jiefang Qingdao HanV heavy truck Refrigerated
Main model photos
589 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao HanV 260hp 6X2(8 wheels) 7.7m refrigerated truck | 6x2 / 260hp / China V | From $28,889 | |
| FAW Jiefang Qingdao HanV 240hp 6X2(8 wheels) 7.7m Refrigerated Truck | 6x2 / 240hp / China V | From $29,167 | |
| FAW Jiefang Qingdao Han V 220 hp 4X2(6 wheels) 6.75m refrigerated truck (385 rear axle) | 4x2 / 220hp / China V | From $26,111 | |
| FAW Jiefang Qingdao Han V 220 hp 4X2(6 wheels) 6.75m refrigerated truck | 4x2 / 220hp / China V | From $26,111 | |
| FAW Jiefang Qingdao HanV 260 hp 8X2(10 wheels) 8.5m refrigerated truck | 8x2 / 260hp / China V | From $38,056 |
FAW Jiefang Qingdao HanV 240hp 6X2(8 wheels) 7.7m Refrigerated Truck
EXW
From $29,167
Export quote
FAW Jiefang Qingdao Han V 220 hp 4X2(6 wheels) 6.75m refrigerated truck (385 rear axle)
EXW
From $26,111
Export quote
FAW Jiefang Qingdao Han V 220 hp 4X2(6 wheels) 6.75m refrigerated truck
EXW
From $26,111
Export quote
FAW Jiefang Qingdao HanV 260 hp 8X2(10 wheels) 8.5m refrigerated truck
EXW
From $38,056
Export quote
Series Specs
Basic Info
Cab dimensions: 10.21×2.6×3.995 / 9.15×2.6×3.995 / 11×2.6×3.995 / 11.995×2.6×3.995m
Drive type: 6X2 / 4X2 / 8X2
Truck Type: Refrigerated Truck
Vehicle origin: Qingdao, Chengdu / Qingdao, Shandong
Wheelbase: 1900+4700 / 5250 / 1900+4160+1350 / 1900+4500+1350mm
Front track width: 1964/1964 / 1914 / 1860/1860mm
rear track: 1860 / 1914/1914mm
Curb Weight: 10.35 / 7.81 / 12.23ton
Rated payload: 14.52 / 9.995 / 18.575 / 18.64ton
Max. speed: 93 / 98 / 89km/h
Front/rear suspension: 1.375/2.235 / 1.332/2.568 / 1.375/2.215 / 1.375/2.87m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: XichaiCA6DLD-26E5 / XichaiCA6DLD-24E5 / XichaiCA6DLD-22E5 / XichaiCA6DL1-26E5
Number of cylinders: 6cylinder
Displacement: 6.6 / 7.7L
Emission standard: China V
Max output power: 195 / 179 / 164kW
Max hp: 260 / 240 / 220Horsepower
Max torque: 1050 / 940 / 860N·m
Rated speed: 2300rpm
Cargo box parameters
Cargo box dimensions: 7.7×2.48×2.65 / 6.75×2.435×2.5 / 8.53×2.4×2.59 / 9.435×2.4×2.59m
Cargo box width: 2.48 / 2.435 / 2.4m
Cargo box height: 2.65 / 2.5 / 2.59m
Body Parameters
Vehicle certification code: CA5250XLCP1K2L5T3E5A80 / CA5189XLCPK2L2E5A80 / CA5310XLCP1K2L7T10E5A80
Body Brand: FAW Jiefang Qingdao
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: HanV
Chassis Model: CA1250P1K2L5T3BE5A80 / CA1189PK2L2BE5A80 / CA1310P1K2L7T10BE5A80
Frame Dimensions: 280*80*8 / 237*75*7 / 280*80*(8+5)mm
rear axle description: 385 upgraded cast axle / 378 cast axle / 457 stamped-welded axle
Axle ratio: 4.111 / 4.333 / 4.875 / 4.444
Leaf spring count: 12/12/10+9 / 12/12/10+9,3/3/10+9,3/3/4+3,10/10/10+9 / 7/10+3 / 12/12/6+-/10+9,3/3/6+-/10+9,10/10/6+-/10+9
clutch: Φ395
Transmission Parameters
Number of gears: 8 / 9Gear
Transmission Model: Shaanxi Gear 8JS105A / Fast Gear9JS119A / Fast Gear8JS85C
Cab parameters
Cab: Flat floor high roof extended cab / HanV flat-floor semi-high-roof full-floating
Tire
Tire Size: 11.00-20 18PR / 11.00-20,11.00R20,12R22.5,295/80R22.5 / 295/80R22.5 / 10.00R20 / 11.00R20
Number of tires: 8 / 6 / 10pcs
FAQ
What kind of truck is FAW Jiefang Qingdao FAW Jiefang Qingdao HanV heavy truck Refrigerated Truck?
FAW Jiefang Qingdao FAW Jiefang Qingdao HanV heavy truck is an export-oriented Refrigerated Truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Qingdao HanV heavy truck Refrigerated?
FAW Jiefang Qingdao HanV heavy truck Refrigerated export reference is about $26,111 – $38,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Qingdao HanV heavy truck Refrigerated cover?
FAW Jiefang Qingdao HanV heavy truck Refrigerated mainly covers: Drive: 4x2 / 6x2 / 8x2; Horsepower: 220 hp / 240 hp / 260 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Qingdao HanV heavy truck Refrigerated?
For FAW Jiefang Qingdao HanV heavy truck Refrigerated: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does FAW Jiefang Qingdao HanV heavy truck Refrigerated include?
FAW Jiefang Qingdao HanV heavy truck Refrigerated currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Qingdao HanV heavy truck Refrigerated?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
