JMC Xinshunda 116hp 4X2(6 wheels) 4.14m Refrigerated Truck (Hongyu Brand)
EXW
From $12,333
Export quote
Zhengzhou Hongyu JMC Chassis Refrigerated Truck
Main model photos
10 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Xinshunda 116hp 4X2(6 wheels) 4.14m Refrigerated Truck (Hongyu Brand) | 4x2 / 116hp / China V | From $12,333 | |
| JMC Kairui Heavy-Duty King Kong 154hp 4X2(6 wheels) 4.09m Refrigerated Truck (Hongyu Brand) | 4x2 / 154hp / China V | From $17,986 | |
| JMC Kairui 800 152hp 4X2(6 wheels) 4.05m refrigerated truck (Hongyu brand) | 4x2 / 152hp / China V | From $16,806 | |
| JMC Kaiyun 116hp 4X2(6 wheels) Refrigerated Truck (Hongyu Brand) | 4x2 / 116hp / China III / Euro III |

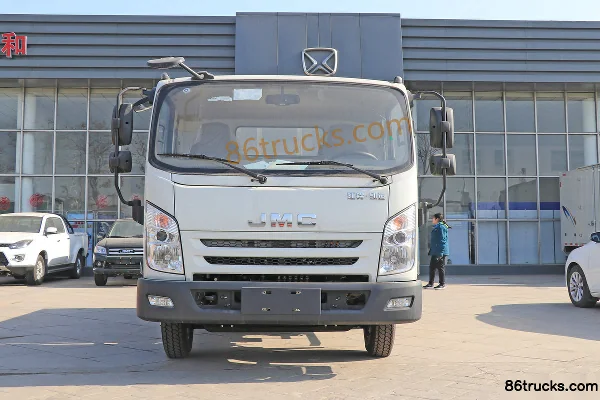

JMC Kairui Heavy-Duty King Kong 154hp 4X2(6 wheels) 4.09m Refrigerated Truck (Hongyu Brand)
EXW
From $17,986
Export quote

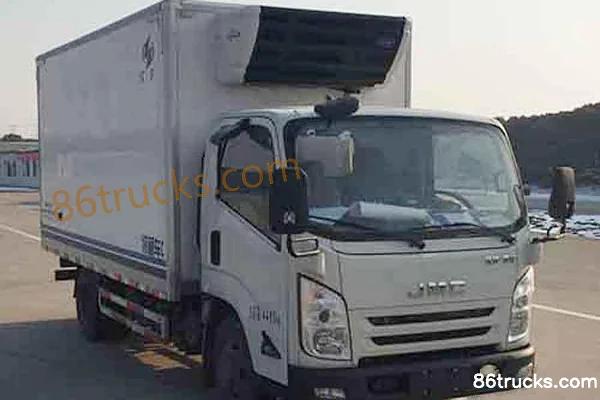

JMC Kairui 800 152hp 4X2(6 wheels) 4.05m refrigerated truck (Hongyu brand)
EXW
From $16,806
Export quote
JMC Kaiyun 116hp 4X2(6 wheels) Refrigerated Truck (Hongyu Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.05×2.94 / 5.995×2.35×3.4 / 5.995×2.15×3.03 / 5.995×1.94×2.88m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Zhengzhou, Henan / Zhengzhou
Wheelbase: 3360mm
Front track width: 1385 / 1680 / 1565mm
rear track: 1425 / 1640 / 1508mm
Curb Weight: 2.985 / 3.2 / 3.16 / 3.05ton
Rated payload: 1.38 / 1.1 / 1.14 / 2.61ton
Max. speed: 100 / 110km/h
Front/rear suspension: 1.065/1.57 / 1.155/1.48 / 1.125/1.51 / 1.015/1.62m
Energy Type: Diesel
Engine parameters
Engine Model: Nanchang JMC JX493ZLQ5 / FotonISF3.8s5154 / Nanchang JMC JX4D30A5H / JMCJX493ZLQ3
Number of cylinders: 4cylinder
Displacement: 2.771 / 3.76 / 2.892L
Emission standard: China V / China III / Euro III
Max output power: 85 / 115 / 112kW
Max hp: 116 / 154 / 152Horsepower
Max torque: 285 / 491 / 382N·m
Rated speed: 3800 / 2600 / 2800rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail / Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, Bosch high-pressure common rail, high-pressure direct injection, SCR / Water-cooled, inline, 4-stroke / Water-cooled 4-stroke inline turbocharged intercooled common rail
Cargo box parameters
Cargo box dimensions: 4.14×1.86×1.84 / 4.09×2.18×2.1 / 4.05×1.97×1.94 / 4.1×1.7×1.7m
Cargo box width: 1.86 / 2.18 / 1.97 / 1.7m
Cargo box height: 1.84 / 2.1 / 1.94 / 1.7m
Body Parameters
Vehicle certification code: HYJ5040XLCB3 / HYJ5040XLCB16 / HYJ5040XLCB / HYJ5062XLC
Body Brand: Hongyu brand
Others: Body top sealed, non-openable; optional side door; optional refrigeration unit of equivalent power
Chassis Specs
Chassis Brand: JMC
Chassis Series: New Shunda / Kaerui Heavy-Duty King Kong / Kairui 800 / Kaiyun
Chassis Model: JX1041TG25 / JX1045TGB25 / JX1043TG25 / JX1060TG23
Front axle description: Payload 1855kg / Payload 1845kg
rear axle description: Payload 2640kg / Payload 2650kg
Axle ratio: 4.875
Leaf spring count: 7/4+6,7/5+6 / 8/9+9,8/8+8,10/9+9,10/8+8 / 7/5+6 / 7/5+5
Transmission Parameters
Number of gears: 5 / 6Gear
Transmission Model: JMCJC528 / WLY 6-speed / Getrag 6MTI420
Tire
Tire Size: 7.00R16LT 8PR / 7.50R16LT 6PR,8.25R16LT 6PR / 7.00R16LT/7.00-16LT
Number of tires: 6pcs
FAQ
What kind of truck is Zhengzhou Hongyu Zhengzhou Hongyu JMC Chassis Refrigerated Truck?
Zhengzhou Hongyu Zhengzhou Hongyu JMC Chassis is an export-oriented Refrigerated Truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Zhengzhou Hongyu JMC Chassis Refrigerated Truck?
Zhengzhou Hongyu JMC Chassis Refrigerated Truck export reference is about $12,333 – $17,986. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Zhengzhou Hongyu JMC Chassis Refrigerated Truck cover?
Zhengzhou Hongyu JMC Chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 116 hp / 152 hp / 154 hp; Emission: China III / Euro III / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Zhengzhou Hongyu JMC Chassis Refrigerated Truck?
For Zhengzhou Hongyu JMC Chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Zhengzhou Hongyu JMC Chassis Refrigerated Truck include?
Zhengzhou Hongyu JMC Chassis Refrigerated Truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Zhengzhou Hongyu JMC Chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
