Chusheng Dongfeng Commercial Vehicle Chassis liquid

Main model photos

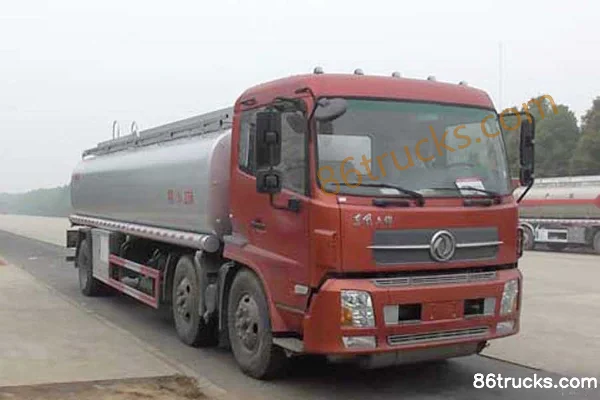

Dongfeng Commercial Vehicle Tianjin 210hp 6X2(8 wheels) liquid supply truck (Chusheng brand) Exterior

197 photos

Models

On sale

Model Drive / HP / Emission EXW Export quote
Dongfeng Commercial Vehicle Tianjin 210hp 6X2(8 wheels) liquid supply truck (Chusheng brand) 6x2 / 210hp / China V From $21,944
Dongfeng Commercial Vehicle Tianjin 210hp 6X2(8 wheels) liquid supply truck (Chusheng brand) 6x2 / 210hp / China V From $21,944

Inventory

Model Drive / HP / Emission EXW Export quote
Dongfeng 153 series 190hp 4X2(6 wheels) chemical liquid transport truck (Chusheng brand) 4x2 / 190hp / China III / Euro III
Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) chemical liquid transport truck (Chusheng brand) 4x2 / 190hp / China III / Euro III
Dongfeng 140 Series 140 hp 4X2(6 wheels) Chemical Liquid Transport Truck (Chusheng Brand) 4x2 / 140hp / China III / Euro III
Dongfeng 153 Series 270 hp 8X4(12 wheels) Chemical Liquid Transport Truck (Chusheng Brand) 8x4 / 270hp / China III / Euro III
Dongfeng Commercial Vehicle Tianjin 190 hp 4X2(6 wheels) Chemical Liquid Transport Truck (Chusheng Brand) 4x2 / 190hp / China III / Euro III

Series Specs

Basic Info
Cab dimensions: 9.95×2.48×3.35 / 8.5×2.48×3.02 / 8.99×2.45×3.05 / 8×2.38×2.8 / 11.99×2.48×3.55 / 7.99×2.45×3.05 / 11.99×2.5×3.69m
Drive type: 6X2 / 4X2 / 8X4
Truck Type: Liquid Tanker Truck / chemical liquid transport truck
Vehicle origin: Suizhou, Hubei
Wheelbase: 1800+4100 / 5000,4700 / 4700 / 1950+4250+1300 / 4500 / 1950+4500+1300mm
Front/rear track width: Front: 1915/1915mm; Rear: 1860 / Front track 1940, rear track 1860 / Front track: 1880 mm; Rear track: 1800 mm / Front track 1810, rear track 1800 / Front track: 1950/1950 mm; Rear track: 1860/1860 mm / Front track: 1940/1940mm; Rear track: 1860/1860mm
Rated payload: 14.405 / 8 / 7.45 / 5 / 16.8 / 7.5 / 14.935 / 16.635ton
GVWR: 25 / 16 / 10.495 / 30.9 / 14.49 / 31ton
Max. speed: 98 / 90 / 85km/h
Front/rear suspension: 1.43/2.62 / 1.205/2.295 / 1.43/2.56 / 1.065/2.235 / 1.205/3.485 / 1.43/2.06 / 1.46/3.03m
Energy Type: Diesel
Body Parameters
Tank Size: 7.2×2.45×1.75 / 5.5*2.28*1.28 / 6.2×2.15×1.35 / 4.9×2×1.25 / 9.1×2.4×1.66 / 5.2×2.35×1.42 / 9.1×2.4×1.55 / 9.1×2.4×1.65m
Tank Volume: 24 / 13.3 / 12.6 / 8.56 / 26.7 / 11.9 / 23.76 / 26.4m3
Transport medium: hexane / Neopentane
Medium Density: 660 / 620 / 613 / 600 / 0.66ton/cubic meter
Vehicle certification code: CSC5252TGYDV / CSC5165GHY3 / CSC5160GHYD / CSC5102GHY3 / CSC5311GHY / CSC5140GHYD / CSC5310GHYD / CSC5312GHYD
Body Brand: Chusheng Brand
Others: Available with 12/15/18 m³ tank body / Available in 8/10 m³ tank body / Available with 30/35 m³ tank / Available with 12/15 m³ tank body / Available with 30/35/40 m³ tank
Chassis Specs
Front/rear axle description: 5T front axle, 10T rear axle / Rear Axle 9T / Front 2.8t / Rear 7.6t / 5T dual front axle; 10T middle & rear axle / Front axle 5T; Rear axle 10T
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin / Dongfeng 153 series / Dongfeng 140 series / Dongfeng Tianlong
Chassis Model: DFH1250BXV / EQ1168KJ2 / DFL1160BX / EQ1102FLJ6 / EQ5311GFJ / DFL1140B2 / DFL1311A3 / DFL1311A4
Leaf spring count: 10/10/10+8 / 8/10+8,8/10+7 / 7/9+6,8/10+8 / 9/11+8 / 9/9/10 / 8/10+8 / 8/8/10
Engine parameters
Engine Model: DongfengISD210 50 / DongfengISB210 50 / Dongfeng Cummins B190-33 / Dongfeng B190 33 / Yuchai YC4E140-33 / Dongfeng L270 30 / Dongfeng L290 30 / Dongfeng L315 30
Number of cylinders: 6 / 4cylinder
Displacement: 6.7 / 5.9 / 4.257 / 8.9L
Emission standard: China V / China III / Euro III
Max output power: 155 / 140 / 105 / 199 / 213 / 231kW
Max hp: 210 / 190 / 140 / 270 / 290 / 315Horsepower
Transmission Parameters
Number of gears: 6 / 5 / 9 / 12Gear
Transmission Model: DongfengDF6S750 / 750 6-speed / Dongfeng DF6S900 / Dongfeng 5-speed / Fast Gear RT-11509C / Fast Gear 9JS119TB / Fast Gear 12JS160TA
Tire
Tire Size: 295/80R22.5 18PR,11.00R20 18PR / 10.00-20 / 9.00-20 / 11.00R20 / 295/80R22.5
Number of tires: 6 / 12pcs

FAQ

What kind of truck is Chusheng Chusheng Dongfeng Commercial Vehicle Chassis liquid transport truck?

Chusheng Chusheng Dongfeng Commercial Vehicle Chassis is an export-oriented liquid transport truck lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for Chusheng Dongfeng Commercial Vehicle Chassis liquid?

Chusheng Dongfeng Commercial Vehicle Chassis liquid export reference is about From $21,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does Chusheng Dongfeng Commercial Vehicle Chassis liquid cover?

Chusheng Dongfeng Commercial Vehicle Chassis liquid mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 140 hp / 190 hp / 210 hp / 270 hp; Emission: China III / Euro III / China V. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in Chusheng Dongfeng Commercial Vehicle Chassis liquid?

For Chusheng Dongfeng Commercial Vehicle Chassis liquid: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.

What is liquid transport truck typically used for?

liquid transport truck specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does Chusheng Dongfeng Commercial Vehicle Chassis liquid include?

Chusheng Dongfeng Commercial Vehicle Chassis liquid currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for Chusheng Dongfeng Commercial Vehicle Chassis liquid?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
