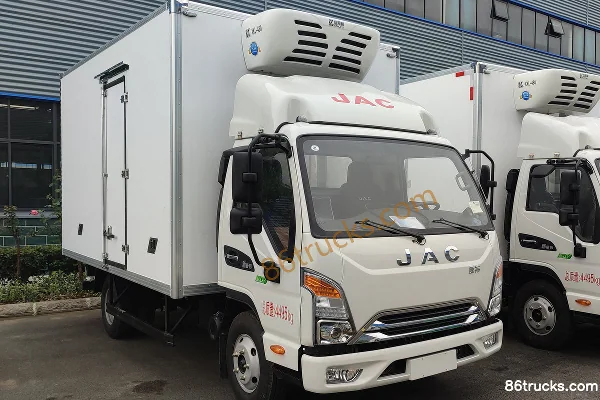

JAC Kangling J5 129hp 4X2(6 wheels) CNG 4.18m Single Row Refrigerated Truck
EXW
From $19,444
Export quote
JAC J5 light-duty truck Refrigerated Truck
Main model photos
343 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kangling J5 129hp 4X2(6 wheels) CNG 4.18m Single Row Refrigerated Truck | 4x2 / 129hp / China VI | From $19,444 | |
| JAC Kangling J5 127 hp 4X2(6 wheels) 4.03m single-row refrigerated truck (China VI) | 4x2 / 127hp / China VI | From $18,069 | |
| JAC Kangling J5 143 hp 4X2(6 wheels) 4.03m single-row refrigerated truck (China VI) | 4x2 / 143hp / China VI | From $18,333 | |
| JAC Kangling J5 130hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) | 4x2 / 130hp / China VI | From $18,750 | |
| JAC Kangling J5 City Distribution Pioneer Luxury Edition 152 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI) | 4x2 / 152hp / China VI | From $20,139 |
JAC Kangling J5 127 hp 4X2(6 wheels) 4.03m single-row refrigerated truck (China VI)
EXW
From $18,069
Export quote
JAC Kangling J5 143 hp 4X2(6 wheels) 4.03m single-row refrigerated truck (China VI)
EXW
From $18,333
Export quote
JAC Kangling J5 130hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI)
EXW
From $18,750
Export quote
JAC Kangling J5 City Distribution Pioneer Luxury Edition 152 hp 4X2(6 wheels) 4.03m Single Row Refrigerated Truck (China VI)
EXW
From $20,139
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Kangling J5 132 hp 4X2(6 wheels) 4.03m Refrigerated Truck | 4x2 / 132hp / China V | From $19,444 | |
| JAC Kangling J5 130hp 4X2(6 wheels) Refrigerated Truck | 4x2 / 130hp / China V | From $26,111 |
JAC Kangling J5 132 hp 4X2(6 wheels) 4.03m Refrigerated Truck
EXW
From $19,444
Export quote
JAC Kangling J5 130hp 4X2(6 wheels) Refrigerated Truck
EXW
From $26,111
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.17×3.09 / 5.995×2.11×3.1 / 5.995×2.26×3.3 / 5.995×2.25×3.1/3.3 / 5.995×2.17×3.1 / 5.995×2.22×3.25 / 5.995×2.32×3.3 / 5.995×2.28×3.19m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 3365 / 3308mm
Vehicle origin: Hefei, Anhui
Front track width: 1596 / 1595 / 1580 / 1685mm
rear track: 1560 / 1395 / 1525mm
Curb Weight: 3.21 / 2.805ton
Rated payload: 1.09 / 1.495ton
GVWR: 4.495ton
Max. speed: 110 / 100 / 105 / 95km/h
Remarks: Standard: MP3, I-beam front axle, roof vent; Optional: tread plate, five-door opening, aluminum side guard, 100L aluminum fuel tank, 6.50R16 tubeless tires, 5.375 ratio. / Standard: electric preheating, MP3, dual batteries, 5V/24V charging port, new interior; Optional: 4.875 ratio, aluminum side guard, 6.50R16 tubeless tires. / Optional: Spring leaf count 4/4+2, ratio 4.875. / Roof vent, telematics, MP3, power windows + central door lock, multifunction steering wheel, heated rearview mirrors, telematics. / Standard: multifunction steering wheel, cab tilt, heater, electric preheater, MP3, I-beam front axle, power steering, ABS, telematics; Optional: ratio 5.375, leaf springs 4/4+2, air conditioning, power windows + central locking + cruise control + heated rearview mirrors, 2075mm wide cargo box, 2100mm cargo box, five-way opening, aluminum side guard, 100L plastic fuel tank, reverse radar, ETC device, daytime running lights, front fog lights, 6.50R16 tubeless tires
Front/rear suspension: 1.62/2.875 / 1.1/1.53 / 1.1/1.587m
Energy Type: Compressed Natural Gas (CNG) / Diesel
Engine parameters
Engine Model: JACHFC4ND1-E / Yunnei PowerD20TCIF1 / Yunnei PowerYN25PLUS1 / JACHFC4DB3-2E / QuanchaiQ25-152E60 / QuanchaiQ23-132E60 / JACHFC4DB2-1D2 / WP2.3NQ130E50
Number of cylinders: 4cylinder
Displacement: 3.416 / 2 / 2.499 / 2.183 / 2.5 / 2.3 / 2.003 / 2.29L
Emission standard: China VI / China V
Max output power: 95 / 93 / 105 / 112 / 97 / 96kW
Max hp: 129 / 127 / 143 / 130 / 152 / 132Horsepower
Max torque: 350 / 320 / 440 / 285 / 380N·m
Rated speed: 3200 / 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC / Inline 4-cylinder, high-pressure common rail, turbocharged intercooled, DPF aftertreatment / Common Rail+SCR
Cargo box parameters
Cargo box dimensions: 4.03×2.01×2 / 4.03×2.1×2.2 / 4.03×2.01/2.1×2.2/2 / 4.03×2.2×2.2 / 4.03×2.08×2m
Cargo box width: 2.01 / 2.1 / 2.01/2.1 / 2.2 / 2.08m
Cargo box height: 2 / 2.2 / 2.2/2m
Cargo box material: Fiberglass one-piece panel
Body Parameters
Vehicle certification code: HFC5045XLCP22N1C3S / HFC5045XLCP22K1C7S / HFC5041XLCP52K3C2V / HFC5043XLCP91K1C2V
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: J5 / Kangling J5 / Kangling
Chassis Model: HFC1045P22N1C3S / HFC1045P22K1C7S / HFC1041P52K3C2V / HFC1043P91K1C2V
Front axle description: 2T / I-beam front axle
Frame Dimensions: 180×65×4.5 / 130*40*5mm
rear axle description: 4T / Meiqiao ATM rear axle
Axle ratio: 4.875 / 4.33 / 5.571
Transmission Parameters
Number of gears: 5 / 6 / 8Gear
Transmission Model: JACML532A / JACML6T450B / Xingrui ML645B / WLYWLY8G45B / Xingrui ML6T450B / JACML532C / Xingrui ML532A / Lu'an LC6T450B
Cab parameters
Cab: Single Row / Tilt cab
fuel tank
Fuel tank capacity: 100L
FAQ
What kind of truck is JAC JAC J5 light-duty truck Refrigerated Truck?
JAC JAC J5 light-duty truck is an export-oriented Refrigerated Truck lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC J5 light-duty truck Refrigerated Truck?
JAC J5 light-duty truck Refrigerated Truck export reference is about $11,750 – $26,111. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC J5 light-duty truck Refrigerated Truck cover?
JAC J5 light-duty truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 127 hp / 129 hp / 130 hp / 132 hp / 143 hp / 152 hp; Emission: China V / China VI; Fuel: Compressed Natural Gas (CNG) / Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC J5 light-duty truck Refrigerated Truck?
For JAC J5 light-duty truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC J5 light-duty truck Refrigerated Truck include?
JAC J5 light-duty truck Refrigerated Truck currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC J5 light-duty truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
