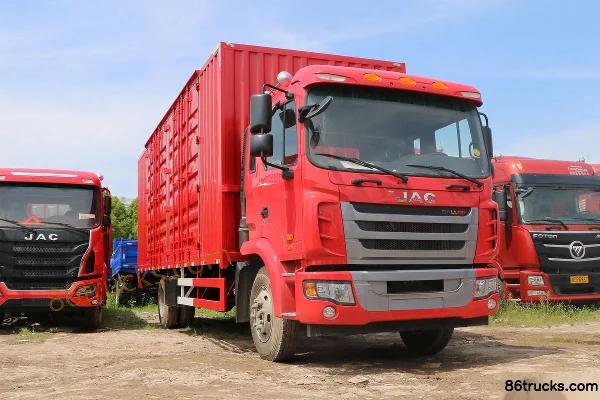

JAC Gallop K3L Medium Truck 160 hp 4X2(6 wheels) 7.8m Van Cargo Truck
EXW
From $22,222
Export quote
JAC Gallop K3 Heavy Truck Cargo Trucks
Main model photos
903 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K3L Medium Truck 160 hp 4X2(6 wheels) 7.8m Van Cargo Truck | 4x2 / 160hp / China V | From $22,222 | |
| JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck | 8x4 / 350hp / China V | From $47,708 | |
| JAC Gallop K3W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck | 8x4 / 350hp / China V | From $47,708 | |
| JAC Gallop K3W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Flatbed Truck | 8x4 / 350hp / China V | From $47,708 | |
| JAC Gallop K3L Medium Truck 190 hp 4X2(6 wheels) 6.8m Livestock Cargo Truck | 4x2 / 190hp / China V | From $19,472 |

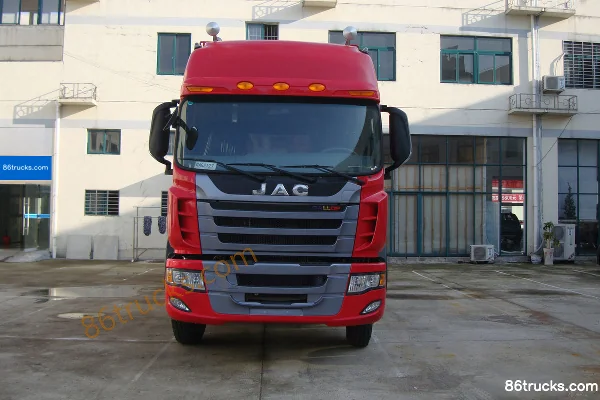

JAC Gallop K3W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Stake Truck
EXW
From $47,708
Export quote

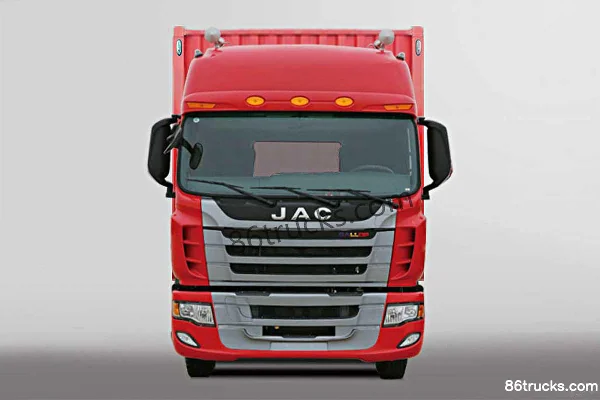

JAC Gallop K3W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Van Truck
EXW
From $47,708
Export quote
JAC Gallop K3W Heavy Truck Lightweight Version 350 hp 8X4(12 wheels) 9.5m Flatbed Truck
EXW
From $47,708
Export quote
JAC Gallop K3L Medium Truck 190 hp 4X2(6 wheels) 6.8m Livestock Cargo Truck
EXW
From $19,472
Export quote
Series Specs
Basic Info
Model code (announced): HFC5181XXYP3K1A57S2QV / HFC5311CCYP1K4H45S1V / HFC5311XXYP1K4H45S1V / HFC1311P1K4H45S1V / HFC5181CCQP3K1A50S3V / HFC5181XXYP3K1A47S5V / HFC1181P3K2A53S5V / HFC5181CCYP3K2A53S5V / HFC5181CCYP3K2A50S2HV / HFC1181P3K2A50S2V / HFC5181CCYP3K2A50S2V / HFC5181XXYP3K2A57S2V / HFC5161XXYP3K3A53S2V / HFC5161CCYP3K3A53S2V / HFC1161P3K3A53S2V / HFC1161P3K3A50S2V / HFC5161XXYP3K2A57S2V / HFC5181XXYP3K2A50S2V / HFC1181P3K2A50S2HV / HFC5161CCYP3K1A47S2V / HFC5181CCYP3K1A50S2QV / HFC5181XXYP3K1A50S2QV / HFC1181P3K1A50S2QV / HFC5161XXYP3K1A50V / HFC5161XXYP3K1A50S2HV / HFC5161CCYP3K1A50S2V / HFC1161P3K1A53S2ZV / HFC1161P3K1A47S2V / HFC5161XXYP3K1A47V / HFC1161P3K1A50S2V / HFC5251CCYP2K3D54S1V
Type: enclosed cargo truck / stake truck / Cargo Trucks
Drive type: 4X2 / 8X4 / 6X2
Wheelbase: 5700 / 1900+4500+1350 / 5000 / 4700 / 5300 / 4500 / 1900+5400mm
Box length class: 7.8 / 9.5 / 6.8 / 6.2 / 5.8 / 7.77 / 6.77m
Engine Model: YuchaiYC4S160-50 / XichaiCA6DL2-35E5 / MaxxForce JND412D190-52 / YuchaiYC6JA240-50 / YuchaiYC6JA220-50 / YuchaiYC6JA180-50 / YuchaiYC4EG185-50 / YuchaiYC4EG200-50 / XichaiCA6DLD-24E5
Transmission Model: Fast Gear8JS75C / Fast Gear10JSD160A / Fast Gear8JS85T / Fast Gear8JS85TC / Fast Gear8JS75TC / Fast Gear6DS60T / Fast Gear6DS60TA / Fast Gear8JS105A / Fast GearFast Gear8JS75C
Rear Axle Ratio: 4.111 / 4.55 / 4.875 / 3.417
Cab length: 10 / 12 / 9 / 8.44 / 9.04 / 8.04m
Cab width: 2.55 / 2.5m
Cab height: 4 / 3.98 / 3.715 / 3.97 / 3.91 / 3.14 / 3.88 / 3.78 / 3.31 / 3.85 / 3.99m
Front track width: 1830 / 2040/2040 / 1920 / 1785 / 1800 / 1960 / 1820 / 1920,1900mm
rear track: 1810 / 1840/1840 / 1860 / 1800 / 1880 / 1810,1860 / 1840,1860mm
Curb Weight: 8.15 / 13.1 / 12 / 8.05 / 7.85 / 6.85 / 7.5 / 8.1 / 8.2 / 6.9 / 7.875 / 6.3 / 7.9 / 7.4 / 7.2 / 6.4 / 6.005 / 10ton
Rated payload: 9.72 / 17.77 / 17.27 / 18.805 / 9.82 / 9.655 / 9.955 / 9.755 / 10.955 / 10.305 / 9.705 / 7.605 / 7.955 / 8.905 / 7.995 / 9.505 / 9.97 / 8.47 / 8.605 / 9.47 / 9.8 / 14.87ton
GVWR: 18 / 31 / 16 / 25ton
Max. speed: 100 / 95km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck / Heavy-duty cargo trucks
Approach angle: 18 / 17°
departure angle: 10 / 11 / 12°
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport / Daily industrial goods transport / Livestock Transport / Agricultural product transport, logistics distribution, LTL transport / Building materials, agricultural products / Daily industrial goods transport, agricultural and sideline products transport, green channel / Agricultural product transport, green channel, industrial product transport
Remarks: Cab: front spring rear air bag dual lock mechanism, front wheel rear mudguard, power tilt, integrated mirrors, code dialer, ratio options: 4.444. / Optional ratio 5.286 / Optional ratio 4.875
Front/rear suspension: 1.4/3.3 / 1.495/2.665 / 1.495/2.755 / 1.4/2.6 / 1.4/2.34 / 1.4/2.3 / 1.4/2.9 / 1.4/2.64 / 1.4/2.14 / 1.495/3.205m
Version: Lightweight version / 2019 model
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Xichai / JAC
Engine info: Yuchai4102 / Xichai9L / MaxxForce 4-cylinder / Yuchai6.9L / Yuchai 6-cylinder / Yuchai 4-cylinder / Xichai 6-cylinder
Number of cylinders: 4 / 6cylinder
Cylinder arrangement: Inline
Displacement: 3.767 / 8.6 / 4.748 / 6.87 / 4.73 / 6.6L
Emission standard: China V
Max output power: 118 / 261 / 258 / 140 / 177 / 162 / 132 / 136 / 147 / 179kW
Max hp: 160 / 350 / 190 / 240 / 220 / 180 / 185 / 200Horsepower
Max torque: 550 / 1500 / 740 / 950 / 860 / 700 / 720 / 940N·m
Max torque speed: 1300-1800 / 1300-1470 / 1200-1800 / 1300-1500 / 1300-1700rpm
Rated speed: 2600 / 2100 / 2200 / 2300 / 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Inline, 4-stroke, water-cooled, 4-valve, turbocharged intercooled / Inline, water-cooled, 4-cylinder, air-to-air intercooled / Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
FAQ
What kind of truck is JAC Gallop JAC Gallop K3 Heavy Truck Cargo Trucks?
JAC Gallop JAC Gallop K3 Heavy Truck is an export-oriented Cargo Trucks lineup with about 440 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Gallop K3 Heavy Truck Cargo Trucks?
JAC Gallop K3 Heavy Truck Cargo Trucks export reference is about $17,778 – $47,708. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Gallop K3 Heavy Truck Cargo Trucks cover?
JAC Gallop K3 Heavy Truck Cargo Trucks mainly covers: Drive: 4x2 / 8x4; Horsepower: 160 hp / 190 hp / 350 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Gallop K3 Heavy Truck Cargo Trucks?
For JAC Gallop K3 Heavy Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC Gallop K3 Heavy Truck Cargo Trucks include?
JAC Gallop K3 Heavy Truck Cargo Trucks currently lists about 440 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Gallop K3 Heavy Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
