JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Flammable Gas Box Transport Truck (Dali Brand)
EXW
From $12,403
Export quote
Dali JMC chassis Explosives Transport Truck
Main model photos
9 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Flammable Gas Box Transport Truck (Dali Brand) | 4x2 / 116hp / China V | From $12,403 | |
| JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Explosive Transport Truck (Dali Brand) | 4x2 / 116hp / China V | From $12,403 | |
| JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Flammable Liquid Van Truck (Dali brand) | 4x2 / 116hp / China V | From $12,056 | |
| JMC Shunda Narrow Body 116hp 4X2(6 wheels) 3.1m Flammable Gas Van Truck (Dali Brand) | 4x2 / 116hp / China V | From $12,056 | |
| JMC Shunda Narrow Body 116hp 4X2(6 wheels) 3.1m Explosives Transport Truck (Dali Brand) | 4x2 / 116hp / China V | From $12,056 |

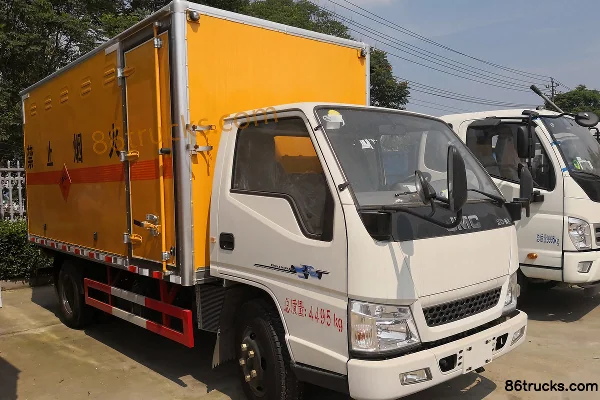

JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Explosive Transport Truck (Dali Brand)
EXW
From $12,403
Export quote

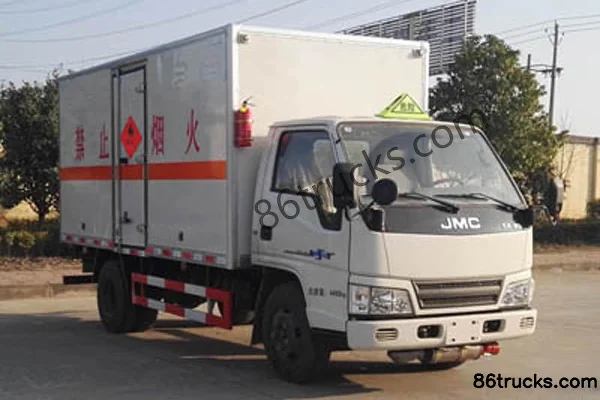

JMC Shunda Narrow Body 116hp 4X2(6 wheels) 4.2m Flammable Liquid Van Truck (Dali brand)
EXW
From $12,056
Export quote
JMC Shunda Narrow Body 116hp 4X2(6 wheels) 3.1m Flammable Gas Van Truck (Dali Brand)
EXW
From $12,056
Export quote
JMC Shunda Narrow Body 116hp 4X2(6 wheels) 3.1m Explosives Transport Truck (Dali Brand)
EXW
From $12,056
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Shunda narrow body 116hp 4X2(6 wheels) 3.26m explosive transport truck (Dali brand) | 4x2 / 116hp / China V |
Series Specs
Basic Info
Cab dimensions: 5.995×2.01×2.85 / 5×1.97×2.84 / 5.995×2×2.81m
Type: Flammable gas van truck / Explosives Transport Truck
Drive type: 4X2
Wheelbase: 3360 / 2490mm
Front/rear track width: Front: 1385mm; Rear: 1425 / Front track: 1385mm; Rear track: 1425
Rated mass: 2.8 / 1.415 / 1.46 / 1.27ton
GVWR: 5.88 / 4.495 / 4.19ton
Max. speed: 80km/h
Front/rear suspension: 1.065/1.57 / 1.065/1.445m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×50mm
Transport medium: Dangerous goods shipped: liquefied petroleum gas, compressed natural gas, compressed hydrogen, methane, acetylene, butane, propane, lighters or lighter refills, compressed coal gas, compressed oxygen, dissolved acetylene; non-flammable non-toxic gases in individual containers: compressed air (carbon dioxide, oxygen, nitrogen, helium, argon, neon) / Black powder, compressed black powder, explosive, detonator, fireworks, etc. / Acetaldehyde, Toluene/Xylene, Camphor Oil, Carbon Disulfide, Dibutyl Ether, Methanol/Ethanol, Liquid Adhesive, Formaldehyde Solution, Paint, Paint Solution, Kerosene, Engine Oil, Gasoline, Acetone.
Vehicle certification code: DLQ5060XRQ5 / DLQ5060XQY5 / DLQ5041XRYJX / DLQ5043XRQJX / DLQ5040XQYJX / DLQ5042XQY
Body Brand: Dali Brand
Engine parameters
Engine Brand: JMC
Engine Model: Nanchang JMC JX493ZLQ5
Number of cylinders: 4cylinder
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Cargo box parameters
Cargo box dimensions: 4.2×1.85×1.76 / 3.1×1.81×1.75 / 3.26×1.81×1.75m
Chassis Specs
Chassis Brand: JMC
Chassis Series: Shunda Narrow Body / JMC Shunda
Chassis Model: JX1061TG25 / JX1041TG25 / JX1041TA25 / JX1041TSG25
rear axle description: Ratio 6.142 / 3.5t axle, ratio 6.142 / Ratio 5.286
Leaf spring count: 7/5+6 / 7/4+6
Transmission Parameters
Number of gears: 5Gear
Transmission Model: Jiangchi JC528 / Jiangchi JC528T8
Tire
Tire Size: 7.00R16LT 10PR / 7.00R16LT 8PR
Number of tires: 6pcs
FAQ
What kind of truck is Dali Dali JMC chassis Explosives Transport Truck?
Dali Dali JMC chassis is an export-oriented Explosives Transport Truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dali JMC chassis Explosives Transport Truck?
Dali JMC chassis Explosives Transport Truck export reference is about $12,056 – $17,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dali JMC chassis Explosives Transport Truck cover?
Dali JMC chassis Explosives Transport Truck mainly covers: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dali JMC chassis Explosives Transport Truck?
For Dali JMC chassis Explosives Transport Truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dali JMC chassis Explosives Transport Truck include?
Dali JMC chassis Explosives Transport Truck currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dali JMC chassis Explosives Transport Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
