Qingte QT1020 1.7-ton Pickup Truck Axle
EXW
Export quote
Qingte Group Drive Axle
Main model photos
21 photos
Models
On sale

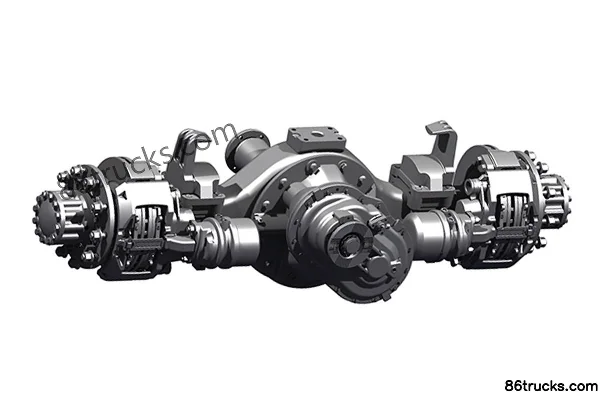

Qingte QT469 13-ton Single Reduction Drive Dual Axle (Middle Axle)
EXW
Export quote

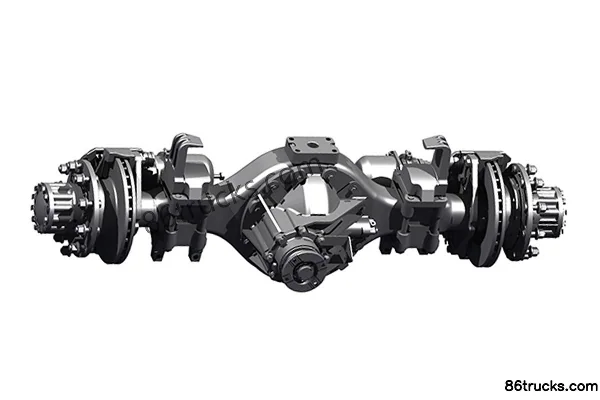

Qingte QT469 13-ton Single Reduction Drive Dual Axle (Rear Axle)
EXW
Export quote
Qingte 398 Single Reduction Drive Axle
EXW
Export quote
Qingte QT300 Gen 4 Double Reduction Drive Axle
EXW
Export quote
Series Specs
Basic Info
Axle Model: Qingte QT1020 / Qingte QT469 / Qingte 398 / Qingte QT300 / Qingte QT205 / Qingte QT440 / Qingte QT459 / Qingte QT485
Axle Type: Drive axle
Application Scope: Lightweight and standard-load tractor truck / Suitable for medium and heavy-duty cargo trucks in hilly and mountainous areas / Mainly matched with 4×2, 6×2 tractor trucks
Rated axle load: 1700 / 13000 / 10000 / 16000 / 4200 (front) / 8000 (rear) / 11500ton
Front/rear track width: 1466 / 1804mm
Brake: Disc brake
Transmission Ratio: 5.375/4.56/4.22/4.1/3.9 / 3.083/3.364/3.7/4.111/4.625 / 2.533-4.625 / 3.86-6.73 / 2.846-5.571 / 2.867-5.286 / 2.714-4.625
Brake size: Φ254x50/Φ22.23 / Φ410×220 / Φ410×180/22.5 / Φ400×130 (front)/Φ400×155 (rear) / Φ410×220/22.5
Max output torque: 950 / 45000 / 28000 / 55000 / 16500 (front) / 22500 (rear) / 33000 / 42000 / 53000N·m
Remarks: Pinion diameter (mm): Φ398, axle housing section (mm): 135×150×12/117×134×13 / Pinion diameter (mm): Φ300, axle housing section (mm): 170×170 / variable-section axle housing, pinion cone diameter (mm): Φ205 / Pinion diameter (mm): Φ440, axle housing section (mm): 135×150×12 / Pinion diameter (mm): Φ459, axle housing section (mm): 135×150×12 / Pinion diameter (mm): Φ485, axle housing section (mm): 135×150×12/14
FAQ
What kind of truck is Qingte Group Qingte Group Drive Axle axle?
Qingte Group Qingte Group Drive Axle is an export-oriented axle lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is axle typically used for?
For axle, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Qingte Group Drive Axle include?
Qingte Group Drive Axle currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Qingte Group Drive Axle?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
