Quanchai 4F1-150C50 150 hp 3.86L China V Diesel Engine
EXW
Export quote
Quanchai 4F Series engine
Main model photos
9 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Quanchai 4F1-150C50 150 hp 3.86L China V Diesel Engine | 150hp / China V | ||
| Quanchai 4F1-140C50 140 hp 3.86L China V Diesel Engine | 140hp / China V | ||
| Quanchai 4F1-135C50 135 hp 3.86L China V Diesel Engine | 135hp / China V | ||
| Quanchai 4F1-125G50 125 hp 3.86L China V Engine | 125hp / China V | ||
| Quanchai 4F1-135C40 135 hp 3.86L China IV Diesel Engine | 135hp / China IV |
Quanchai 4F1-140C50 140 hp 3.86L China V Diesel Engine
EXW
Export quote
Quanchai 4F1-135C50 135 hp 3.86L China V Diesel Engine
EXW
Export quote
Quanchai 4F1-125G50 125 hp 3.86L China V Engine
EXW
Export quote

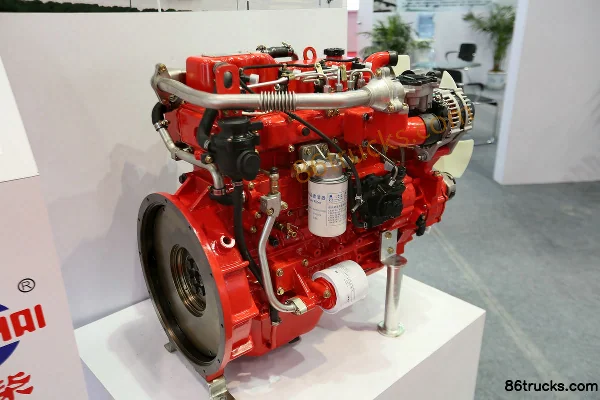

Quanchai 4F1-135C40 135 hp 3.86L China IV Diesel Engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: Quanchai 4F Series
Engine manufacturer: Anhui Quanchai Power Co., Ltd.
Suitable Range: light-medium cargo truck / 4-8T medium-duty truck, 5-8m bus
Intake type: Turbocharged Air-to-Air Intercooling / Turbocharged Water-Cooled
Min. fuel consumption at full load: 200 / 215 / ≤205g/kW.h
Engine net weight: 325kg
noise at 1m: 98 / 95dB
Bore × Stroke: 102×118mm
Valves per cylinder: 2pcs
Engine Brand: Quanchai
Engine Model: 4F1-150C50 / 4F1-140C50 / 4F1-135C50 / 4F1-125G50 / 4F1-135C40 / 4F1-125C40 / 4F1-115C40
Number of cylinders: 4cylinder
fuel type: Diesel / Natural gas (LNG/CNG)
Cylinder arrangement: Inline
Displacement: 3.857 / 3.875L
Emission standard: China V / China IV
Max output power: 110 / 105 / 100 / 90 / 92 / 85kW
Max hp: 150 / 140 / 135 / 125 / 115Horsepower
Max torque: 500 / 450 / 400 / 350 / 360 / 320N·m
Max torque speed: 1200-2100 / 1000-2300 / 1800 / 1600-1800rpm
Rated speed: 2800rpm
Engine Type: 4-cylinder, inline, water-cooled, 4-stroke / Water-cooled, turbocharged & intercooled, vertical / Vertical, inline, 4-stroke
FAQ
What kind of truck is Quanchai Quanchai 4F Series engine?
Quanchai Quanchai 4F Series is an export-oriented engine lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Quanchai 4F Series engine cover?
Quanchai 4F Series engine mainly covers: Horsepower: 125 hp / 135 hp / 140 hp / 150 hp; Emission: China IV / China V; Fuel: Diesel / Natural gas (LNG/CNG). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Quanchai 4F Series engine?
For Quanchai 4F Series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Quanchai 4F Series engine include?
Quanchai 4F Series engine currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Quanchai 4F Series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
