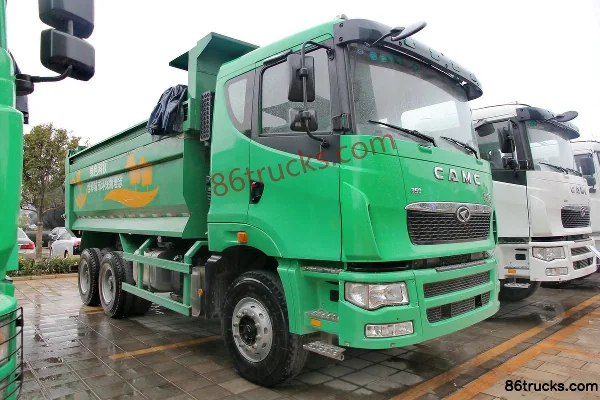

Hualing Hanma H9 Heavy Truck 430 hp 8X4(12 wheels) 8.6m LNG Dump Truck (China VI)
EXW
From $64,583
Export quote
HualingHanma H9 Heavy Truck Dump Trucks
Main model photos
269 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing Hanma H9 Heavy Truck 430 hp 8X4(12 wheels) 8.6m LNG Dump Truck (China VI) | 8x4 / 430hp / China VI | From $64,583 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing Hanma H9 heavy truck composite transport type 430 hp 6X4(10 wheels) 6.5m dump truck | 6x4 / 430hp / China V | From $51,389 | |
| Hualing Hanma H9 Heavy Truck Composite Transport Type 430hp 6X4(10 wheels) 6.2m Dump Truck | 6x4 / 430hp / China V | From $51,389 | |
| Hualing Hanma H9 Heavy Truck 345 hp 8X4(12 wheels) 8.2m Dump Truck | 8x4 / 345hp / China V | ||
| Hualing Hanma H9 heavy truck 375 hp 8X4(12 wheels) 8.2m dump truck (HN3310H37D6M5) | 8x4 / 375hp / China V | ||
| Hualing Hanma H9 heavy truck 375 hp 8X4(12 wheels) 8.2m dump truck | 8x4 / 375hp / China V |
Hualing Hanma H9 heavy truck composite transport type 430 hp 6X4(10 wheels) 6.5m dump truck
EXW
From $51,389
Export quote
Hualing Hanma H9 Heavy Truck Composite Transport Type 430hp 6X4(10 wheels) 6.2m Dump Truck
EXW
From $51,389
Export quote
Hualing Hanma H9 Heavy Truck 345 hp 8X4(12 wheels) 8.2m Dump Truck
EXW
Export quote
Hualing Hanma H9 heavy truck 375 hp 8X4(12 wheels) 8.2m dump truck (HN3310H37D6M5)
EXW
Export quote
Hualing Hanma H9 heavy truck 375 hp 8X4(12 wheels) 8.2m dump truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HN3250H35D4M5 / HN3310H37D6M5 / HN3310H37DLM5 / HN3310AB37D6M4 / HN3312A34DLM4 / HN3251B34C9M4 / HN3310P37C3M3 / HN3310P34DLM3 / HN3230P38D1M3 / HN3250P34C6M3
Drive type: 8X4 / 6X4
Wheelbase: 1850+4200+1350 / 4400+1350 / 1850+4605+1350 / 1850+4000+1350 / 3900+1350 / 1850+3370+1310 / 1850+4000+1310 / 4100+1350 / 3400+1350mm
Engine Model: HanmaCM6T28.430 60 / HanmaCM6D28.430 50 / HanmaCM6D18.345 50 / HanmaCM6D18.375 50 / HanmaCM6D18.375 40 / HanmaCM6D28.350 40 / Xi’an CumminsISME385 30 / WeichaiWP10.340E32 / Shanghai HinoP11C-UH / WeichaiWP10.300N
Transmission Model: Fast Gear12JS220T / Fast Gear12JSD220T / Hanma12SDC1851 / Hanma8SDB1851 / Fast GearRT-11509C / Fast Gear9JS119
Rear Axle Ratio: 5.262 / 5.921 / 5.263 / 5.73
Cab length: 9.5 / 9.2 / 11.2 / 10.88 / 10.98 / 8.6 / 9.88 / 9.15 / 8.17m
Cab width: 2.495 / 2.496m
Cab height: 3.6 / 3.7 / 3.8 / 3.36 / 3.45m
Front track width: 2065 / 2065/2065mm
rear track: 1860/1860mm
Curb Weight: 12.565 / 15.5 / 15.3 / 15.305 / 11.905 / 15.47 / 14.97 / 11.47 / 12.055ton
Rated payload: 12.305 / 15.37 / 15.57 / 15.5 / 15.305 / 12.9 / 15.335 / 15.835 / 11.555 / 12.75ton
GVWR: 25 / 31 / 23.22ton
Origin: Ma'anshan, Anhui
tonnage class: Heavy truck
Approach angle: 19 / 20 / 24 / 23°
departure angle: 16 / 18 / 20 / 22 / 24 / 25°
Remarks: Laminated windshield, heating & A/C; optional air-suspension seat, 310 (8+10) full-wrap frame, Hanma engine compression brake, aluminum fuel tank, integrated desert air filter with intake duct, combined oil-bath and dry air filter. / Standard: Radio with MP3, laminated front windshield, equal-length main and auxiliary frame rails, thickened front and rear leaf springs, 130-C balance shaft with pad, 22000 driveshaft, oil-lubricated axles, GPS lock device. Optional: Air suspension seat, Hanma engine compression brake, aluminum alloy fuel tank, 9SDB1851 transmission; optional Hanma H9 flat-top cab, 8+10 (auxiliary web height 310) frame. / 5800*2300*1190+310, floor 10 side 6, domestic or HYVA cylinder, rear door, with electric tarp (recessed cargo box) / 1. Exterior drive-by noise meets GB1495-2002 Phase II limits; 2. Engine emissions meet GB17691-2005 Phase III; 3. Optional five-door dump body with same internal dimensions; 4. Optional EP front panel; 5. Dimension correspondence: Length 9880mm, wheelbase 1850+3370+1310mm, rear overhang 1980mm, body length 7000mm; Length 9880mm, wheelbase 1850+3370+1350mm, rear overhang 1940mm, body length 7000mm; Length 10080mm, wheelbase 1850+3370+1350mm, rear overhang 2140mm, body length 7200mm. / 1. Exterior drive-by noise meets GB1495-2002 Phase II limits; 2. Engine emissions meet GB17691-2005 Phase III; 3. Optional five-door dump body with same internal dimensions; 4. Optional same-series approved high roof cab; both high roof and flat roof cabs available with E front panel and front bumper; 5. Dimension correspondence: Length 10550mm, wheelbase 1850+4000+1310mm, rear overhang 2020mm, body length 7500mm, body height 1100mm; Length 10550mm, wheelbase 1850+4000+1350mm, rear overhang 1980mm, body length 7500mm, body height 1100mm; Length 10680mm, wheelbase 1850+4000+1350mm, rear overhang 2110mm, body length 7800mm, body height 1080mm; 6. Dump body discharge type: rear dump. / 1. Accelerating pass-by noise meets GB1495-2002 Phase II limits; 2. Optional EP-type front panel and front bumper.
Version: Transport type / Construction version / Urban Construction & Muck
Energy Type: LNG (liquefied natural gas) / Diesel
Engine parameters
Engine Brand: Hanma / Xi’an Cummins / Weichai / Shanghai Hino
Number of cylinders: 6cylinder
Displacement: 11.813 / 9.84 / 11.81 / 10.8 / 9.726 / 10.52L
Emission standard: China VI / China V / China IV / China III / Euro III
Max output power: 316 / 254 / 276 / 257 / 283 / 250 / 240 / 221kW
Max hp: 430 / 345 / 375 / 350 / 385 / 340 / 325 / 300Horsepower
Max torque: 2050 / 1660 / 1750 / 1600 / 1835 / 1250 / 1420 / 1390N·m
Max torque speed: 1100-1450 / 1100-1400 / 1200-1300 / 1100-1500 / 1200 / 1400-1600 / 1100 / 1200-1500rpm
Rated speed: 1900 / 2200 / 2100rpm
Engine Type: Inline, high-pressure common rail / Inline / Inline 6-cylinder, electronic control system / Water-cooled, 4-stroke, with exhaust brake, direct injection, turbocharged intercooled / Denso electronic common rail, turbocharged intercooled / Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Brand: Fast Gear / Hanma
shift method: Manual
Forward gears: 12 / 8 / 9Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Rear-dump body / Dump type
Cargo box length: 8.6 / 6.5 / 6.2 / 8.2 / 8.5 / 7.8 / 5.8 / 7 / 8 / 6 / 5.4m
Cargo box width: 2.35 / 2.3m
Cargo box height: 1.5 / 0.96 / 1.015 / 0.98 / 1 / 1.19 / 1.1 / 1.25m
Cab parameters
Cab: all-steel flat-top cab / Flat roof
FAQ
What kind of truck is Hualing HualingHanma H9 Heavy Truck Dump Trucks?
Hualing HualingHanma H9 Heavy Truck is an export-oriented Dump Trucks lineup with about 14 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for HualingHanma H9 Heavy Truck Dump Trucks?
HualingHanma H9 Heavy Truck Dump Trucks export reference is about $37,500 – $64,583. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does HualingHanma H9 Heavy Truck Dump Trucks cover?
HualingHanma H9 Heavy Truck Dump Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 345 hp / 375 hp / 430 hp; Emission: China V / China VI; Fuel: Diesel / LNG (liquefied natural gas). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in HualingHanma H9 Heavy Truck Dump Trucks?
For HualingHanma H9 Heavy Truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does HualingHanma H9 Heavy Truck Dump Trucks include?
HualingHanma H9 Heavy Truck Dump Trucks currently lists about 14 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for HualingHanma H9 Heavy Truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
