FAW Jiefang J6M 320hp 8X4(12 wheels) Fuel Tanker (Chusheng Brand)
EXW
From $70,361
Export quote
Chusheng FAW Jiefang chassis fuel tanker truck
Main model photos
18 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6M 320hp 8X4(12 wheels) Fuel Tanker (Chusheng Brand) | 8x4 / 320hp / China V | From $70,361 | |
| FAW Jiefang J6M 320 hp 8X4(12 wheels) Aluminum Alloy Oil Transport Truck (Chusheng Brand) | 8x4 / 320hp / China V | From $60,417 | |
| FAW Jiefang J6L 220hp 6X2(8 wheels) Fuel Tank Truck (Chusheng Brand) | 6x2 / 220hp / China V | From $30,347 | |
| FAW Jiefang J6L 180hp 4X2(6 wheels) oil tanker truck (Chusheng brand) | 4x2 / 180hp / China V | From $27,639 |

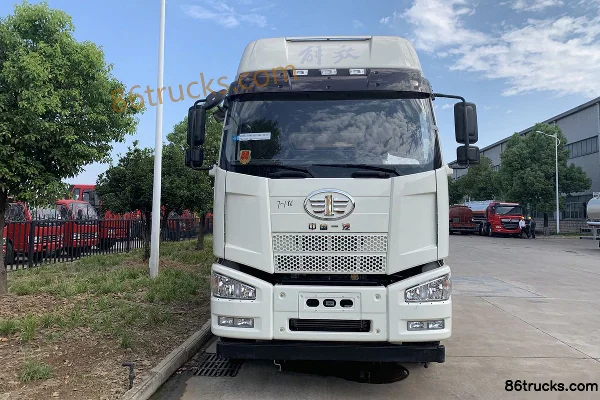

FAW Jiefang J6M 320 hp 8X4(12 wheels) Aluminum Alloy Oil Transport Truck (Chusheng Brand)
EXW
From $60,417
Export quote
FAW Jiefang J6L 220hp 6X2(8 wheels) Fuel Tank Truck (Chusheng Brand)
EXW
From $30,347
Export quote

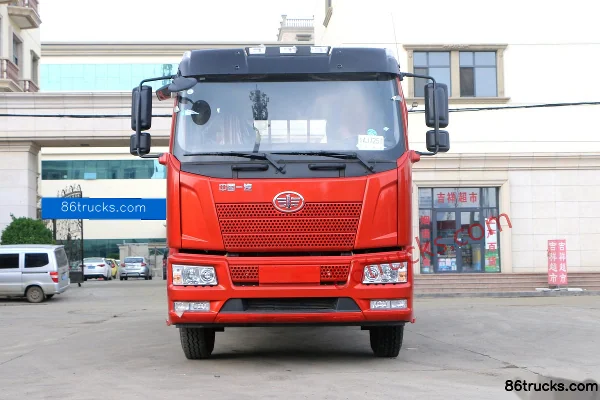

FAW Jiefang J6L 180hp 4X2(6 wheels) oil tanker truck (Chusheng brand)
EXW
From $27,639
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6 280 hp 8X4(12 wheels) Oil Tank Truck (Chusheng Brand) | 8x4 / 280hp / China IV | From $51,389 | |
| FAW Jiefang Junwei J5K 130 hp 4X2(6 wheels) Oil Tanker Truck (Chusheng Brand) | 4x2 / 130hp / China III / Euro III | ||
| FAW Jiefang Junwei J5K 130 hp 4X2(6 wheels) Oil Tanker Truck (Chusheng Brand) | 4x2 / 130hp / China III / Euro III | ||
| FAW Jiefang Junwei J5K 168 hp 4X2(6 wheels) Oil Transport Truck (Chusheng brand) | 4x2 / 168hp / China III / Euro III |
FAW Jiefang J6 280 hp 8X4(12 wheels) Oil Tank Truck (Chusheng Brand)
EXW
From $51,389
Export quote
FAW Jiefang Junwei J5K 130 hp 4X2(6 wheels) Oil Tanker Truck (Chusheng Brand)
EXW
Export quote
FAW Jiefang Junwei J5K 130 hp 4X2(6 wheels) Oil Tanker Truck (Chusheng Brand)
EXW
Export quote
FAW Jiefang Junwei J5K 168 hp 4X2(6 wheels) Oil Transport Truck (Chusheng brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.99×2.5×3.6 / 10.4×2.48×3.08 / 8.5×2.5×3.3 / 11.9×2.5×3.5 / 7.75×2.25×2.75 / 6.9×2.25×2.9 / 8.9×2.48×3.2m
Truck Type: aluminum fuel tanker truck / Fuel tanker truck
Drive type: 8X4 / 6X2 / 4X2
Wheelbase: 1950+4550+1350 / 1900+4700 / 4700 / 4250 / 3750 / 4970mm
Vehicle origin: Suizhou, Hubei
Front track width: 1987/1987 / 1890/1890 / 1890 / 1950/1950 / 1810 / 1800mm
rear track: 1860/1860 / 1847 / 1860 / 1847/1847 / 1740 / 1800mm
Curb Weight: 10.455 / 10.7 / 10.47 / 6.735 / 14.455 / 5.15 / 4.5 / 6.8ton
Rated payload: 21.415 / 21.105 / 13.835 / 11.07 / 16.35 / 3.15 / 3.8 / 7ton
Max. speed: 79 / 95 / 90km/h
Front/rear suspension: 1.46/2.68 / 1.4/2.4 / 1.4/2.65 / 1.33/2.17 / 1.330/1.820 / 1.312/2.618m
Energy Type: Diesel
Body Parameters
Tank Size: 9×2.4×1.73 / 9.2×2.48×1.81 / 7.7×2.26×1.5 / 5.7×2.3×1.5 / 4.9×1.48×0.9 / 4.3×1.7×1.05 / 6.15×2.05×1.23m
Tank Volume: 27 / 31.6 / 17.5 / 14 / 4.7 / 5.7 / 10.5m3
Transport medium: Diesel, kerosene, gasoline / gasoline
Medium Density: 0.83 / 0.7ton/cubic meter
Vehicle certification code: CSC5320GYYLC5A / CSC5320GYYLC5 / CSC5252GYYC5A / CSC5180GYYLC5A / CSC5314GYYC4 / CSC5080GYYC / CSC5081GYYC / CSC5140GYYCA
Body Brand: Chusheng Brand
Others: Available with 5/6/8 m³ tank / Side guard: cold-formed channel steel/Q235-A, welded and bolted connection. Rear guard: cold-formed channel steel/Q235-A, welded connection. Rear guard section height: 100mm, section width: 50mm, lower edge ground clearance: 540mm. / Rear underrun protection: section height 270mm, section width 50mm, ground clearance 540mm.
Engine parameters
Engine Brand: Dachai / Xichai
Engine Model: DachaiCA6DK1-32E51 / DachaiCA4DK1-22E51 / DachaiCA4DK1-18E51 / DachaiBF6M1013-28E4 / Xichai CA4DF3-13E3 / FAW BF4M1013-16E3
Number of cylinders: 6 / 4cylinder
Displacement: 7.146 / 4.764 / 4.75L
Emission standard: China V / China IV / China III / Euro III
Max output power: 239 / 165 / 139 / 209 / 96 / 124kW
Max hp: 320 / 220 / 180 / 280 / 130 / 168Horsepower
Max torque: 1200 / 820 / 720 / 1100 / 450 / 520N·m
Max torque speed: 1200-1700 / 1400 / 1100-1400rpm
Rated speed: 2300 / 2500rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail / Electronically controlled / Inline
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW JiefangJ6M / FAW JiefangJ6L / J6 / Junwei J5K
Chassis Model: CA5320GYYP63K1L6T4E5 / CA5250GYYP62K1L6T3E5 / CA5180GYYP62K1L5E5 / CA5310GYYP63K1L6T4E4 / CA1083P9K2L2E / CA1083P9K2LE / CA1140PK2L3EA80
Front axle description: 1800
Frame Dimensions: 270×75×(7+5) / 237×75×(7+4)mm
rear axle description: Ф435 stamped-welded axle / Rear Axle 325 / 325 reinforced axle / 435 rear axle
Axle ratio: 5.143 / 4.875
Transmission Parameters
Number of gears: 10 / 6Gear
Transmission Model: FAW10-speed / FAWCA6T138 / FAWCA10TA / FAW Jiefang CA6T123 / FAW CA6T123-5 / Hachi CA6-75
Cab parameters
Cab: J6L Semi-floating Flat Roof Short Extended Cab / 2017 Model J6L Semi-Float Flat-Roof Small Half-Row Cab
FAQ
What kind of truck is Chusheng Chusheng FAW Jiefang chassis fuel tanker truck?
Chusheng Chusheng FAW Jiefang chassis is an export-oriented fuel tanker truck lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chusheng FAW Jiefang chassis fuel tanker truck?
Chusheng FAW Jiefang chassis fuel tanker truck export reference is about $27,639 – $70,361. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chusheng FAW Jiefang chassis fuel tanker truck cover?
Chusheng FAW Jiefang chassis fuel tanker truck mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 130 hp / 168 hp / 180 hp / 220 hp / 280 hp / 320 hp; Emission: China III / Euro III / China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chusheng FAW Jiefang chassis fuel tanker truck?
For Chusheng FAW Jiefang chassis fuel tanker truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is fuel tanker truck typically used for?
fuel tanker truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chusheng FAW Jiefang chassis fuel tanker truck include?
Chusheng FAW Jiefang chassis fuel tanker truck currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chusheng FAW Jiefang chassis fuel tanker truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
