Xi'an Shuangte FC6A180 6-speed AT Automatic Transmission
EXW
Export quote
Xi'an Shuangte FC 6-Speed Series transmission
Main model photos
4 photos
Models
On sale
Xi'an Shuangte FC6A250 6-speed AT Automatic Transmission
EXW
Export quote
Xi'an Shuangte FC6A100 6-speed AT Automatic Transmission
EXW
Export quote
Xi'an Shuangte FC6A80 6-speed AT Automatic Transmission
EXW
Export quote

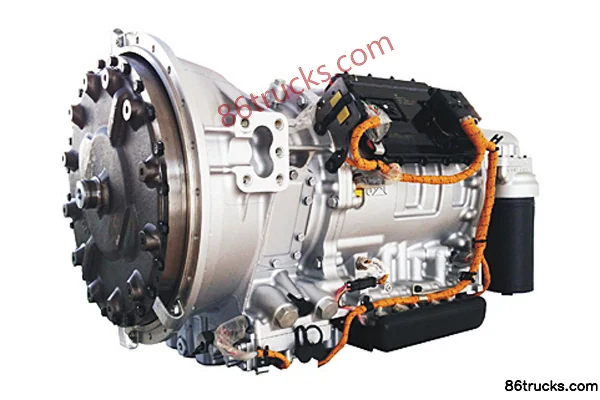

Xi'an Shuangte FC6A210 6-Speed AT Automatic Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Xi'an Shuangte
Transmission series: FC 6-speed series
Features: Good fuel economy, good shift quality, optimized gear train, higher load capacity at low speeds, external cartridge oil filter for remote installation and easy maintenance, multiple PTO options (side, rear, and multi-PTO); external control valve for lower maintenance cost, built-in hydraulic retarder with high braking torque, lower installation cost for OEMs
Max input torque: 1700 / 2400 / 1003 / 800 / 2000 / 1255N·m
1st gear ratio: 3.76 / 4.4 / 3.974
2nd gear ratio: 1.96 / 2.33 / 2.318
3rd gear ratio: 1.37 / 1.53 / 1.516
4th gear ratio: 1 / 1.149
5th gear ratio: 0.77 / 0.72 / 0.858
6th gear ratio: 0.65 / 0.61 / 0.674
Reverse Gear 1 Ratio: 3.97 / 3.128
Transmission weight: 270 / 411 / 140kg
Transmission oil capacity: 25 / 15L
Number of gears: 6Gear
shift type: AT automatic
Transmission Model: FC6A180 / FC6A250 / FC6A100 / FC6A80 / FC6A210 / FC6A140
shift method: AT automatic
Forward gears: 6Gear
Number of Reverse Gears:
FAQ
What kind of truck is Xi'an Shuangte Xi'an Shuangte FC 6-Speed Series transmission?
Xi'an Shuangte Xi'an Shuangte FC 6-Speed Series is an export-oriented transmission lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Xi'an Shuangte FC 6-Speed Series transmission include?
Xi'an Shuangte FC 6-Speed Series transmission currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Xi'an Shuangte FC 6-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
