FAW Jiefang Qingdao Junwei J5K 180hp 4X2(6 wheels) Refrigerated Truck (CIMC brand)
EXW
Export quote
CIMC FAW Jiefang Qingdao chassis Refrigerated Truck
Main model photos
18 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao Junwei J5K 180hp 4X2(6 wheels) Refrigerated Truck (CIMC brand) | 4x2 / 180hp / China III / Euro III | ||
| FAW Jiefang Qingdao Sailong 130hp 4X2(6 wheels) Refrigerated Truck (CIMC Brand) | 4x2 / 130hp / China III / Euro III |

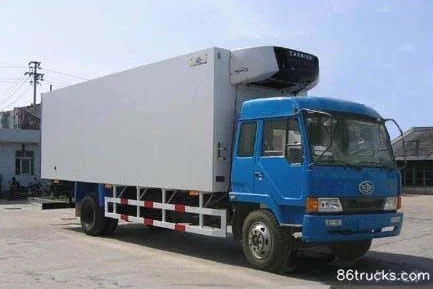

FAW Jiefang Qingdao Sailong 130hp 4X2(6 wheels) Refrigerated Truck (CIMC Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.95×2.54×3.88 / 9.032×2.54×3.72m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Shenzhen
Wheelbase: 5800 / 4920mm
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 7.84 / 6.62ton
Rated payload: 7.945 / 9.085ton
Max. speed: 90 / 93km/h
Front/rear suspension: 1.312/2.918 / 1.232/2.45m
Energy Type: Diesel
Engine parameters
Engine Model: XichaiCA6DF3-18E3F / XichaiCA6DF3-18E5
Number of cylinders: 6cylinder
Displacement: 7.12 / 4.7L
Emission standard: China III / Euro III
Max output power: 139 / 101kW
Max hp: 180 / 130Horsepower
Max torque: 660N·m
Rated speed: 2300rpm
Engine Type: Inline / 4-stroke, inline, water-cooled, turbocharged with intercooling
Cargo box parameters
Cargo box dimensions: 7.435×2.335×2.4 / 6.635×2.335×2.3m
Cargo box width: 2.335m
Cargo box height: 2.4 / 2.3m
Body Parameters
Vehicle certification code: ZJV5161XLCSD / ZJV5168XLCSD
Body Brand: CIMC brand
Others: Cargo compartment top sealed, non-openable. Optional side doors on both sides. Optional refrigeration unit of equivalent power. Optional flat roof cab and side-door cab with chassis. Only 5720mm wheelbase selected. / Cargo box top sealed, non-openable. Optional side doors on both sides. Optional refrigeration unit of equivalent power from other models. Follow chassis to choose flat roof cab and modified side door cab. Only select 5350mm wheelbase. Optional modified front lamps and front cab per chassis.
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Junwei J5K / Sailong
Chassis Model: CA5161XXYPK2L5EA80-3 / CA1168PK2L2EA80
Leaf spring count: 10/12+8 / 7/10+3
Transmission Parameters
Number of gears: 6Gear
Transmission Model: FAW CA6TBX075
Tire
Tire Size: 9.00-20，9.00R20，10.00-20,10.00R20 / 9.00-20/9.00R20/8.25-20/8.25R20
Number of tires: 6pcs
FAQ
What kind of truck is CIMC CIMC FAW Jiefang Qingdao chassis Refrigerated Truck?
CIMC CIMC FAW Jiefang Qingdao chassis is an export-oriented Refrigerated Truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does CIMC FAW Jiefang Qingdao chassis Refrigerated Truck cover?
CIMC FAW Jiefang Qingdao chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 130 hp / 180 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in CIMC FAW Jiefang Qingdao chassis Refrigerated Truck?
For CIMC FAW Jiefang Qingdao chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does CIMC FAW Jiefang Qingdao chassis Refrigerated Truck include?
CIMC FAW Jiefang Qingdao chassis Refrigerated Truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for CIMC FAW Jiefang Qingdao chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
