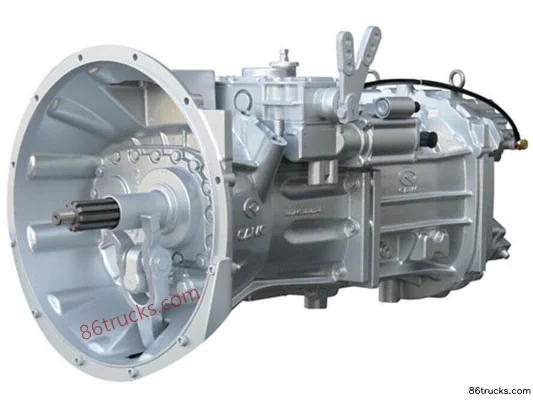

Hanma 12SOB2251A 12-speed Manual Transmission
EXW
Export quote
Hanma 12-Speed Series transmission
Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hanma 12SOB2251A 12-speed Manual Transmission | — | ||
| Hanma 12SDCY1851A 12-speed Manual Transmission | — | ||
| Hanma 12SDCY1850 12-speed Manual Transmission | — | ||
| Hanma 12SOB2250 12-Speed Manual Transmission | — | ||
| Hanma 12SOB1851 12-Speed Manual Transmission | — |
Hanma 12SDCY1851A 12-speed Manual Transmission
EXW
Export quote
Hanma 12SDCY1850 12-speed Manual Transmission
EXW
Export quote
Hanma 12SOB2250 12-Speed Manual Transmission
EXW
Export quote
Hanma 12SOB1851 12-Speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Hanma
Transmission series: 12-speed series
Features: Helical, ground gears; forced lubrication; servo assist (optional); German synchronizer / Helical, ground gears; forced lubrication; servo assist (optional); German synchronizer, 2×3×2 / High efficiency, fuel saving, low noise, high torque, high transmission efficiency, high reliability. / Forced lubrication system, pneumatic servo mechanism, full helical gear mechanism
Max input torque: 2250 / 1850 / 1840 / 1700N·m
1st gear ratio: 12.15 / 15.48 / 13.8 / 12.17
2nd gear ratio: 9.57 / 12.15 / 10.09 / 9.58
synchronizer: Yes
3rd gear ratio: 7.37 / 9.38 / 8.39
4th gear ratio: 5.8 / 7.37 / 6.59 / 5.81
5th gear ratio: 4.55 / 5.79 / 5.18
6th gear ratio: 3.6 / 4.55 / 4.07 / 3.58
7th gear ratio: 2.67 / 3.41
8th gear ratio: 2.11 / 2.67
Reverse Gear 1 Ratio: 12.87 / 16.39 / 14.7 / 12.88
Transmission weight: 400 / 290 / 293 / 405 / 295kg
9th gear ratio: 1.62 / 2.06
Transmission oil capacity: 11.5 / 14.5L
10-speed gear ratio: 1.28 / 1.62
11-speed gear ratio: 1 / 1.27
12-speed gear ratio: 0.79 / 1
Reverse Gear 2 Ratio: 10.13 / 12.87 / 11.5 / 10.14
Control type: dual-lever, single-lever
Number of gears: 12Gear
shift type: Manual
Transmission Model: 12SOB2251A / 12SDCY1851A / 12SDCY1850 / 12SOB2250 / 12SOB1851 / 12SDB1851 / 12SDC1851 / 12SOB1900 / 12SOB1701 / 12SOB1850
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
FAQ
What kind of truck is Hanma Hanma 12-Speed Series transmission?
Hanma Hanma 12-Speed Series is an export-oriented transmission lineup with about 10 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Hanma 12-Speed Series transmission include?
Hanma 12-Speed Series transmission currently lists about 10 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hanma 12-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
