Dongfeng D5 Light Truck Cargo Trucks

Main model photos

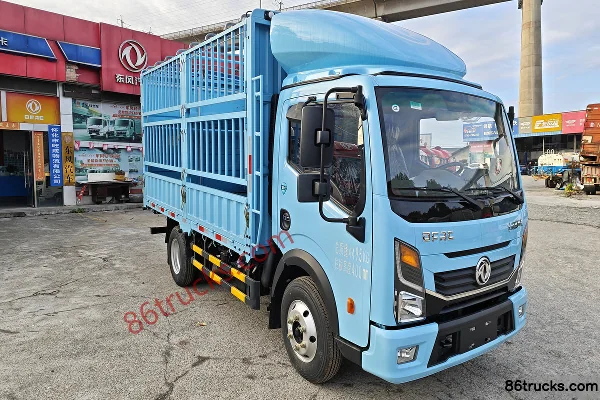

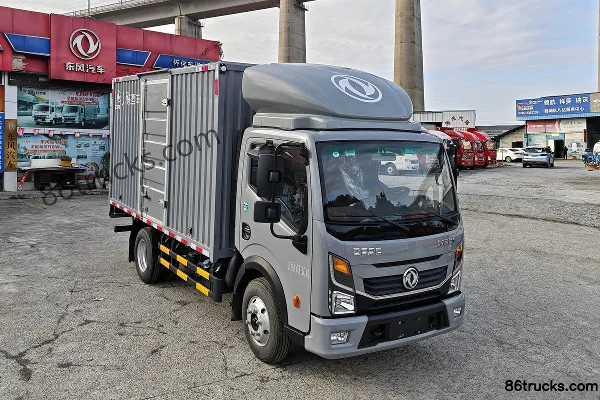

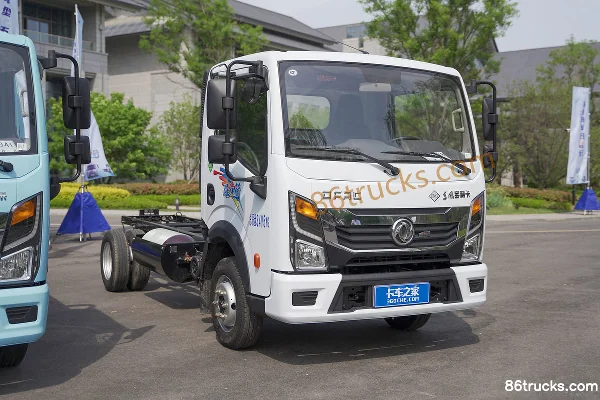

Dongfeng D5 2024 2L CNG 127 hp 4X2(6 wheels) Dongan 5-speed 4.17m single-row stake truck Exterior Dongfeng D5 2024 2L CNG 127 hp 4X2(6 wheels) Dongan 5-speed 4.15m single-row van light truck Exterior Dongfeng D5 2024 2L CNG 127 hp 4X2(6 wheels) Dongan 5-Speed 4.17m Single Row Panel Light Truck Exterior

403 photos

Models

On sale

Inventory

Series Specs

Basic Info
Model code (announced): EQ5040CCY3TNEAC / EQ5040XXY3TNEAC / EQ1040S3TNE / EQ5048XXY3CDFAC / EQ1041S3CDF / EQ5037CCY26QEAC / EQ5030CCY3TNEAC / EQ5040CCY3TDFAC / EQ5040XXY3TDFAC / EQ5042CCY3CDFAC / EQ1042D3CDF / EQ5030XXY3TNEAC / EQ1030S3TNE / EQ5037XXY26QEAC / EQ1043S3CDF / EQ1032S3CNDF / EQ5032XXY3CNDFAC / EQ1037S26QE / EQ5031CCY3CNDFAC / EQ5031XXY3CNDFAC / EQ1030S3CNDF / EQ5040CCYD3CDFAC / EQ5042XXYD3CDFAC / EQ5041CCY3CDCAC / EQ5040XXY3CDCAC / EQ5041XXY3CDCAC / EQ1041S3CDC / EQ1042S3CDF / EQ5041CCY3CDFAC / EQ5040CCY3CDFAC / EQ5041XSH3CDFAC / EQ5047XXY3CDFAC / EQ5042XXY3CDFAC / EQ5040XXY3CDFAC / EQ5046XXY3CDFAC / EQ5043XXY3CDFAC / EQ5041XXY3CDFAC / EQ1040S3CDF
Type: stake truck / enclosed cargo truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3200 / 2950 / 3050 / 2700mm
Box length class: 4.2 / 3.8 / 3.4 / 4 / 2.8 / 4.1m
Engine Model: DonganDAN20CL / QuanchaiQ23D-142E60 / QuanchaiQ23-132E60 / DonganDAN20L / Wuling LiujiLJ481QS6 / QuanchaiQ23-115E60 / Q23-132E60
Transmission Model: DonganT25R / WLYWLY5G32 / 5-speed gearbox / WLYWLY5GT32
Rear Axle Ratio: 5.833 / 4.875 / 4.88 / 5.375
Cab length: 5.995 / 5.615 / 5.16 / 5.86 / 5.61 / 5.56 / 5.6 / 5.76 / 5.765 / 5.675m
Cab width: 2 / 1.98 / 1.995 / 2.09 / 2.15 / 1730m
Cab height: 3.035 / 3.05 / 2.19 / 3.03 / 2.105 / 3.04 / 3.08 / 3.13 / 2.98 / 2.28 / 2.25 / 2.47 / 2.26 / 2.88 / 2.22 / 2.31 / 2.83 / 2.79 / 2.94m
Front track width: 1503 / 1521 / 1472 / 1519mm
rear track: 1494 / 1586 / 1458 / 1500mm
Curb Weight: 2.39 / 2.375 / 2.1 / 2.805 / 2.565 / 2.16 / 2.25 / 2.72 / 2.705 / 2.33 / 2.065 / 2.18 / 2.12 / 2.332 / 1.9 / 2.257 / 2.43 / 2.2 / 2.41 / 2.425 / 3.175 / 3.21 / 2.985 / 2.57 / 2.15ton
Rated payload: 1.975 / 1.99 / 2.265 / 1.56 / 1.735 / 1.209 / 1.115 / 1.645 / 1.495 / 1.58 / 1.605 / 1.035 / 1.3 / 1.189 / 1.8 / 1.249 / 1.037 / 1.469 / 1.112 / 1.45 / 1.935 / 1.995 / 1.955 / 0.745 / 1.09 / 1.064ton
GVWR: 4.495 / 3.499 / 3.495 / 4.33 / 4.055 / 4.325 / 4.05 / 4.179 / 4.195 / 3.775ton
Max. speed: 100 / 103 / 110km/h
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 17 / 24 / 18 / 20 / 21°
departure angle: 17 / 13 / 10 / 20 / 15 / 12°
market segment: Urban Distribution / Agricultural product transport, green channel / Agricultural and sideline product transport / Building materials, agricultural products
Remarks: Power supply: 12V, with A/C, frame type: dovetail beam / Optional front grille, rearview mirrors and front fog lamps as per chassis. Optional 1.5-row cab as per chassis. Cargo box top closed, non-openable; optional flat-panel or corrugated panel box structure. Optional side door(s): no door, single door, or double door. Optional four-rod door lock. Optional cab roof deflector. Side and rear underrun guard material: Q235, bolted to frame. Rear guard section dimensions (mm): 100×50, ground clearance: 470 mm. When equipped with engines D20TCIF1, YCY24140-60, CA4DB1-11E6, ZD30D16-6N, CA4DB1-13E6, Q28-130E60, Q23-115E60, H20-120E60, corresponding fuel consumption: 11.3 L/100 km. Overall length - wheelbase - front/rear overhang relations: 5995-3308-1040/1647, 5995-3308-1057/1630, 5560-2950-1040/1570, 5160-2700-1040/1420. ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd. / ABS/ASR-24V- / Power: 12V, A/C, frame type: straight beam / Floor plate corrugated pattern, 3 doors; frame straight-through beam outer width 750mm; power supply 12V; 30L steel air reservoir
Front/rear suspension: 1.04/1.755 / 1.04/1.625 / 1.04/1.577 / 1.04/1.62 / 1.04/1.647 / 1.04/1.61 / 1.04/1.57 / 1.04/1.67 / 1.05/1.41 / 1.057/1.63m
Version: 2024 Model / 2024 Ren Wu Xing / Ruineng version / Renwuxing / Super Power Edition
Energy Type: Compressed Natural Gas (CNG) / Diesel / gasoline
Engine parameters
Engine Brand: Dongan / Quanchai / Wuling Liuji
Engine info: Dongan2L / Quanchai2.3L / Dongan2.0L / QuanchaiQ23 / Wuling Liuji2L / Quanchai487
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 1.998 / 2.3 / 1.962L
Emission standard: China VI
Max output power: 93 / 103 / 97 / 110 / 90 / 85kW
Max hp: 127 / 142 / 132 / 150 / 122 / 115Horsepower
Max torque: 185 / 320 / 172N·m
Max torque speed: 4400 / 2000rpm
Rated speed: 3000rpm
Engine Type: Common Rail / Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Brand: Dongan / WLY / Mengwo
shift method: Manual

FAQ

What kind of truck is Dongfeng Dongfeng D5 Light Truck Cargo Trucks?

Dongfeng Dongfeng D5 Light Truck is an export-oriented Cargo Trucks lineup with about 352 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for Dongfeng D5 Light Truck Cargo Trucks?

Dongfeng D5 Light Truck Cargo Trucks export reference is about $5,667 – $15,528. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does Dongfeng D5 Light Truck Cargo Trucks cover?

Dongfeng D5 Light Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 88 hp / 115 hp / 127 hp / 132 hp / 142 hp; Emission: China V / China VI; Fuel: Compressed Natural Gas (CNG) / Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in Dongfeng D5 Light Truck Cargo Trucks?

For Dongfeng D5 Light Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.

What is Cargo Trucks typically used for?

Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.

How many models does Dongfeng D5 Light Truck Cargo Trucks include?

Dongfeng D5 Light Truck Cargo Trucks currently lists about 352 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for Dongfeng D5 Light Truck Cargo Trucks?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
