SAIC Hongyan Genlyon M100 280hp 6X4(10 wheels) LNG Detachable Garbage Truck (Chongte Brand)
EXW
Export quote
SAIC Hongyan Genlyon Heavy Truck garbage truck
Main model photos
1,735 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Genlyon M100 280hp 6X4(10 wheels) LNG Detachable Garbage Truck (Chongte Brand) | 6x4 / 220hp / China IV | ||
| SAIC Hongyan Genlyon 400hp 8X4(12 wheels) Garbage Truck (China IV) | 8x4 / 400hp / China IV | ||
| SAIC Hongyan Genlyon 340hp 6X4(10 wheels) Garbage Truck (Comfort Edition) | 6x4 / 340hp / China III / Euro III |

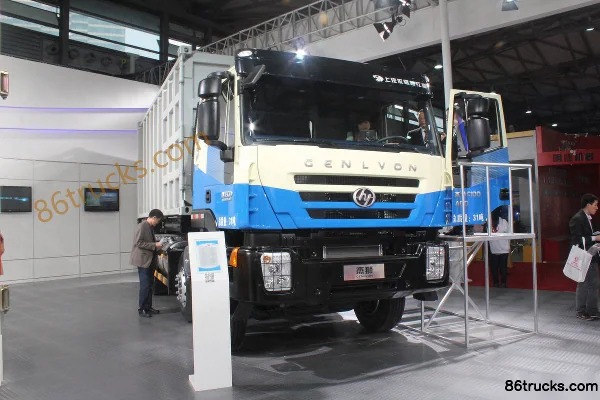

SAIC Hongyan Genlyon 400hp 8X4(12 wheels) Garbage Truck (China IV)
EXW
Export quote
SAIC Hongyan Genlyon 340hp 6X4(10 wheels) Garbage Truck (Comfort Edition)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 8.0×2.5×3.11 / 8.91×2.5×3.385 / 8.275×2.5×3.51m
Type: Hook lift garbage truck / garbage truck / Dump refuse truck
Drive type: 6X4 / 8X4
Front/rear track width: Front track: 1940mm; Rear track: 1860/1860mm / Front track: 2006 Rear track: 1850/1850
Wheelbase: 5850+1350 / 1800+3000+1400 / 3825+1350mm
Rated mass: 15.805 / 11ton
GVWR: 25 / 31ton
Front/rear suspension: 1.25/1.1 / 1.435/1.665m
Energy Type: Diesel
Body Parameters
Special Function Description: Engine also optional: Dongfeng ISLe340 30
Vehicle certification code: QYZ5253ZXX4 / CQ5254ZLJHRG384
Body Brand: Zhongte Brand / SAIC Hongyan
Engine parameters
Engine Model: Dongfeng ISB220 40 / Cursor9 / SAIC Fiat Powertrain HongyanF2CE0681C*B052(C9 340)
Displacement: 5.9 / 8.71 / 8.709L
Emission standard: China IV / China III / Euro III
Max output power: 162 / 294 / 250kW
Max hp: 220 / 400 / 340Horsepower
Rated speed: 2500rpm
Cargo box parameters
Box volume: 16m³
Chassis Specs
Chassis Brand: SAIC Hongyan
Chassis Series: GENLYON
Chassis Model: EQ1251GLJ10 / SHW5316ZXX / CQ3254HRG384
rear axle description: Rear axle: double reduction welded axle
Leaf spring count: 9/13 / 9/12
Transmission Parameters
Number of gears: 9Gear
Transmission Model: 9-Speed / Fast Gear RT-11509C
Tire
Tire Size: 11.00R20 / 12.00R20 / 12.00R2016PR
Number of tires: 10 / 12pcs
FAQ
What kind of truck is SAIC Hongyan SAIC Hongyan Genlyon Heavy Truck garbage truck?
SAIC Hongyan SAIC Hongyan Genlyon Heavy Truck is an export-oriented garbage truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does SAIC Hongyan Genlyon Heavy Truck garbage truck cover?
SAIC Hongyan Genlyon Heavy Truck garbage truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 220 hp / 340 hp / 400 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SAIC Hongyan Genlyon Heavy Truck garbage truck?
For SAIC Hongyan Genlyon Heavy Truck garbage truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is garbage truck typically used for?
garbage truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does SAIC Hongyan Genlyon Heavy Truck garbage truck include?
SAIC Hongyan Genlyon Heavy Truck garbage truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SAIC Hongyan Genlyon Heavy Truck garbage truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
