Dongfeng T5 270hp 4X2(6 wheels) 5.4m dump truck
EXW
From $33,333
Export quote
Dongfeng T5 medium truck Dump Trucks
Main model photos
176 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng T5 270hp 4X2(6 wheels) 5.4m dump truck | 4x2 / 270hp / China VI | From $33,333 | |
| Dongfeng T5 270hp 8X2(10 wheels) 7.6m Dump Truck | 8x2 / 270hp / China VI | From $33,306 | |
| Dongfeng T5 300hp 8X4(12 wheels) 6m dump truck (10T reinforced rear axle) | 8x4 / 300hp / China VI | From $41,958 | |
| Dongfeng T5 300 hp 8X4(12 wheels) 6m Dump Truck | 8x4 / 300hp / China VI | From $41,389 |
Dongfeng T5 270hp 8X2(10 wheels) 7.6m Dump Truck
EXW
From $33,306
Export quote

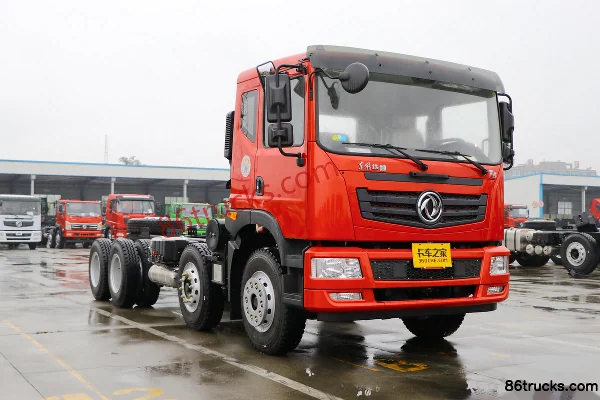

Dongfeng T5 300hp 8X4(12 wheels) 6m dump truck (10T reinforced rear axle)
EXW
From $41,958
Export quote
Dongfeng T5 300 hp 8X4(12 wheels) 6m Dump Truck
EXW
From $41,389
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng T5 Lightweight Edition 270hp 8X4(12 wheels) 6m Dump Truck | 8x4 / 270hp / China V | ||
| Dongfeng T5 300 hp 8X4(12 wheels) 5.6m Dump Truck | 8x4 / 300hp / China V | From $43,056 | |
| Dongfeng T5 300hp 8X4(12 wheels) 7.3m dump truck | 8x4 / 300hp / China V | From $40,875 | |
| Dongfeng T5 300hp 8X4(12 wheels) 7m dump truck | 8x4 / 300hp / China V | From $38,639 | |
| Dongfeng T5 300hp 8X4(12 wheels) 6.8m dump truck | 8x4 / 300hp / China V | From $39,722 |
Dongfeng T5 Lightweight Edition 270hp 8X4(12 wheels) 6m Dump Truck
EXW
Export quote
Dongfeng T5 300 hp 8X4(12 wheels) 5.6m Dump Truck
EXW
From $43,056
Export quote
Dongfeng T5 300hp 8X4(12 wheels) 7.3m dump truck
EXW
From $40,875
Export quote
Dongfeng T5 300hp 8X4(12 wheels) 7m dump truck
EXW
From $38,639
Export quote
Dongfeng T5 300hp 8X4(12 wheels) 6.8m dump truck
EXW
From $39,722
Export quote
Series Specs
Basic Info
Model code (announced): EQ3186GL6D41 / DFD3316GL6D11 / DFZ3310GSZ5D5 / EQ3318GLV / EQ3318GFV4 / EQ3318GL6D / EQ3311GLV
Drive type: 4X2 / 8X2 / 8X4
Wheelbase: 4500 / 1850+3800+1300 / 1950+2600+1300 / 1850+2600+1300 / 1850+3800+1350 / 1850+3400+1350 / 1850+2900+1300 / 1850+2800+1350 / 1850+2600+1350 / 1850+2700+1350mm
Engine Model: YuchaiYCS06270-60 / WeichaiWP7.270E51 / WeichaiWP7.300E51 / WeichaiWP7.300E61 / YuchaiYC6A270-50
Transmission Model: Fast Gear10JSD120TB / Fast Gear10JSD140B / Fast Gear10JSD120B / Fast Gear 10-Speed
Rear Axle Ratio: 5.92 / 5.143 / 5.57
Cab length: 7.91 / 10.3 / 8.9 / 10.2 / 9.9 / 9.7 / 9.3 / 9.1 / 8.85 / 10.4 / 8.75m
Cab width: 2.55 / 2.4 / 2.49 / 2300m
Cab height: 3.05 / 3.1 / 2.8 / 3.35 / 3.3 / 3.25m
Front track width: 1960 / 1960/1960 / 1940/1940 / 1900/1900 / 1950/1950 / 1910/1910mm
rear track: 1880 / 1900/1880 / 1860/1860 / 1750/1750mm
Curb Weight: 8.6 / 10.8 / 11.5 / 12 / 12.5 / 14.865ton
Rated payload: 9.27 / 20.07 / 19.305 / 19.37 / 18.87 / 18.37 / 18.805 / 15.94ton
GVWR: 18 / 31ton
Origin: Shiyan, Hubei / Wuhan, Hubei
tonnage class: Heavy truck / Medium-duty truck
Approach angle: 21 / 20 / 28 / 25 / 17°
departure angle: 17 / 14 / 22 / 18 / 23 / 24°
Remarks: LCD instrument cluster / T702G Full-floating, Power Windows, Hydraulic Tilt, Two-step Pedal, Sun Visor / T702G Full-floating, Hydraulic Tilt, Two-step Pedal
Version: Lightweight version / Lightweight / Zhiyue Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Weichai
Number of cylinders: 6cylinder
Displacement: 6.23 / 7.47 / 7.5 / 7.52L
Emission standard: China VI / China V
Max output power: 199 / 220kW
Max hp: 270 / 300Horsepower
Max torque: 1050 / 1160 / 1250 / 1300 / 1100N·m
Max torque speed: 1200-1700 / 1200-1600 / 1200-1800rpm
Rated speed: 2300 / 2100rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Inline 6-cylinder, electronic high-pressure common rail, SCR / CR+EGR+DOC+DPF+SCR / Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type / Rear-dump body
Cargo box length: 5.4 / 7.6 / 6 / 5.6 / 7.3 / 7 / 6.8 / 6.5 / 6.2m
Cargo box width: 2.34 / 2.4 / 2.2 / 2.3 / 2.38 / 2.35m
Cargo box height: 0.8 / 1.5 / 1 / 0.9 / 1.2 / 1.3 / 1.28m
Cab parameters
Cab: T702G / D913 / D913 Deluxe Low Roof / T702G Full-floating
FAQ
What kind of truck is Dongfeng Dongfeng T5 medium truck Dump Trucks?
Dongfeng Dongfeng T5 medium truck is an export-oriented Dump Trucks lineup with about 18 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng T5 medium truck Dump Trucks?
Dongfeng T5 medium truck Dump Trucks export reference is about $33,056 – $43,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng T5 medium truck Dump Trucks cover?
Dongfeng T5 medium truck Dump Trucks mainly covers: Drive: 4x2 / 8x2 / 8x4; Horsepower: 270 hp / 300 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng T5 medium truck Dump Trucks?
For Dongfeng T5 medium truck Dump Trucks: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Dongfeng T5 medium truck Dump Trucks include?
Dongfeng T5 medium truck Dump Trucks currently lists about 18 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng T5 medium truck Dump Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
