Foton Aoling CTX 141hp 4X2(6 wheels) 4.145m Explosive Material Transport Truck
EXW
From $17,778
Export quote
Foton CTX Light Truck Explosives Transport Truck
Main model photos
604 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aoling CTX 141hp 4X2(6 wheels) 4.145m Explosive Material Transport Truck | 4x2 / 141hp / China V | From $17,778 | |
| Foton Aumark CTX 154 hp 4X2(6 wheels) Explosive Material Transport Truck | 4x2 / 154hp / China V | From $16,472 | |
| Foton Ollin CTX 154 hp 4X2(6 wheels) Flammable Gas Box Truck | 4x2 / 154hp / China V | From $16,472 | |
| Foton Ollin CTX 141 hp 4X2(6 wheels) Flammable Gas Box Truck | 4x2 / 141hp / China V | ||
| Foton Aoling CTX 141 hp 4X2(6 wheels) Explosive Material Transport Truck | 4x2 / 141hp / China IV | From $20,833 |
Foton Aumark CTX 154 hp 4X2(6 wheels) Explosive Material Transport Truck
EXW
From $16,472
Export quote
Foton Ollin CTX 154 hp 4X2(6 wheels) Flammable Gas Box Truck
EXW
From $16,472
Export quote
Foton Ollin CTX 141 hp 4X2(6 wheels) Flammable Gas Box Truck
EXW
Export quote

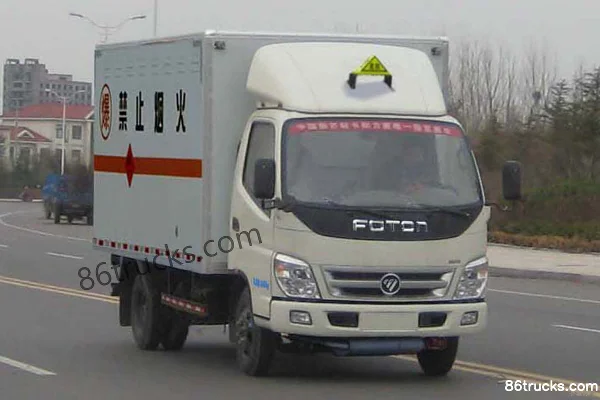

Foton Aoling CTX 141 hp 4X2(6 wheels) Explosive Material Transport Truck
EXW
From $20,833
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.31×3.15 / 6.995×2.41×3.35 / 6.995×2.21×3.15 / 5.995×2.17×2.9 / 6.995×2.17×3.08 / 6.995×2.17×3.28 / 6.8×2.135×2.295 / 5.875×1.915×2.25 / 6.995×2.17×3m
Type: Explosives Transport Truck / Flammable gas van truck
Drive type: 4X2
Front/rear track width: Front track: 1730mm; Rear track: 1590mm / Front track: 1665mm; Rear track: 1630mm / Front track: 1530mm; Rear track: 1485mm / Front track: 1530mm; Rear track: 1485 / Front track: 1685mm; Rear track: 1625 / Front track: 1685mm; Rear track: 1615mm / Front track: 1665mm; Rear track: 1615mm / Front track: 1710mm; Rear track: 1680mm
Wheelbase: 3360 / 3800 / 3650 / 3600mm
Rated mass: 0.765 / 5 / 1.495 / 4.9ton
Front track width: 1730 / 1665 / 1530 / 1685 / 1710mm
rear track: 1590 / 1630 / 1485 / 1615 / 1680mm
GVWR: 4.495 / 9.995 / 4.33 / 6.495 / 7.23 / 9.19 / 9.495 / 4.4ton
Max. speed: 80 / 110km/h
Front/rear suspension: 1.12/1.515 / 1.12/2.075 / 1.085/1.43 / 1.095/1.54 / 1.085/1.55 / 1.12/1.88m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton / Chaochai / Yangchai / Dachai / Lovol Power
Engine Model: FotonISF3.8s5141 / FotonISF3.8s5154 / FotonISF3.8s4154 / FotonISF3.8s4R141 / Foton4J28TC / FotonISF2.8s4117V / ChaochaiCY4102-CE4F / YangchaiYZ4DA2-40 / DachaiCA4DC2-10E4 / FotonISF3.8S4R154 / DachaiCA4DC2-12E4 / Lovol PowerIE4D140-e4EP
Number of cylinders: 4cylinder
Displacement: 3.76 / 2.771 / 2.78 / 3.856 / 3.66 / 3.168 / 3.99L
Emission standard: China V / China IV
Max output power: 105 / 115 / 104 / 81 / 87 / 73 / 83 / 79 / 91kW
Max hp: 141 / 154 / 110 / 117 / 99 / 113 / 108 / 124 / 140Horsepower
Max torque: 440 / 491 / 500 / 450 / 280 / 260 / 235 / 300 / 320N·m
Max torque speed: 1200-2200 / 1200-1900 / 1700-2300 / 1600-2700 / 1300-1500 / 1000-1600 / 2000 / 1300-1700rpm
Rated speed: 2600 / 3600 / 3200 / 2900 / 2500rpm
Body Parameters
Transport medium: flammable gas
Vehicle certification code: BJ5049XQY-FE / BJ5109XQY-FE / BJ5109XRQ-FA / BJ5049XRQ-FD / BJ5049XRQ-FA / BJ5069XQY-FA / BJ5049XQY-AB / BJ5049XQY-AC / BJ5049XQY-BA / BJ5079XQY-BA / BJ5099XQY-AC / BJ5129XQY-FA / BJ5099XQY-AA / BJ5099XRQ-FA
Body Brand: Foton
Cargo box parameters
Cargo box dimensions: 4.145×2.15×2.1 / 5.15×2.25×2.1 / 5.15×2.05×1.9 / 4.145×2×1.8 / 4.73×2×1.8 / 5.13×2×2 / 5.13×2×1.8m
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling CTX
Chassis Model: BJ1049V8JEA-F1 / BJ1109VEJEA-FB / BJ1049V9JEA-FB / BJ1069VDJEA-FB / BJ1049V9JD6-AA / BJ1049V9JEA-3 / BJ1079VEJEA-AB / BJ1099VEPEA-FC / BJ1129VGJEA-FA / BJ1099VEPEA-2 / BJ1099VEJEA-FC
rear axle description: Rear axle ratio 3.727 / Rear axle ratio 4.33 / NPR, integral axle / Axle ratio: 4.11
Leaf spring count: 3+1/6+7 / 9/11+7 / 7/4+5 / 3/5+4，3+1/6+7，9/11+7 / 3+1/6+7，7/4+5 / 7/4+5，3+1/6+7，9/11+7
Transmission Parameters
Number of gears: 6 / 5Gear
shift type: Manual
Transmission Model: WLYWLY6T120 / WLY646B / 6-speed / 5-speed / WLY 6-speed / 6-speed transmission / WLY651B
Tire
Tire Size: 7.00R16 8PR，7.50R16 6PR / 8.25R16 16PR / 8.25R16 / 7.00R16 8PR / 7.00R16，7.50R16 / 8.25R16，8.25R20 12PR / 8.25R20 16PR / 8.25R16，8.25R20 / 7.00R16LT / 8.25R16LT
Number of tires: 6pcs
FAQ
What kind of truck is Foton Foton CTX Light Truck Explosives Transport Truck?
Foton Foton CTX Light Truck is an export-oriented Explosives Transport Truck lineup with about 25 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton CTX Light Truck Explosives Transport Truck?
Foton CTX Light Truck Explosives Transport Truck export reference is about $16,472 – $20,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton CTX Light Truck Explosives Transport Truck cover?
Foton CTX Light Truck Explosives Transport Truck mainly covers: Drive: 4x2; Horsepower: 141 hp / 154 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton CTX Light Truck Explosives Transport Truck?
For Foton CTX Light Truck Explosives Transport Truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is Explosives Transport Truck typically used for?
Explosives Transport Truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Foton CTX Light Truck Explosives Transport Truck include?
Foton CTX Light Truck Explosives Transport Truck currently lists about 25 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton CTX Light Truck Explosives Transport Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
