JAC Sunray 6 Series 152hp 4X2(6 wheels) 3570 Wheelbase Single Row Light Truck Chassis
EXW
Export quote
JAC 6 Series Cargo Trucks
Main model photos
75 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Sunray 6 Series 152hp 4X2(6 wheels) 3570 Wheelbase Single Row Light Truck Chassis | 4x2 / 152hp / China V | ||
| JAC Sunray 6 Series 120 hp 4X2(6 wheels) 3570 wheelbase Single Row Flatbed Light Truck | 4x2 / 120hp / China IV |

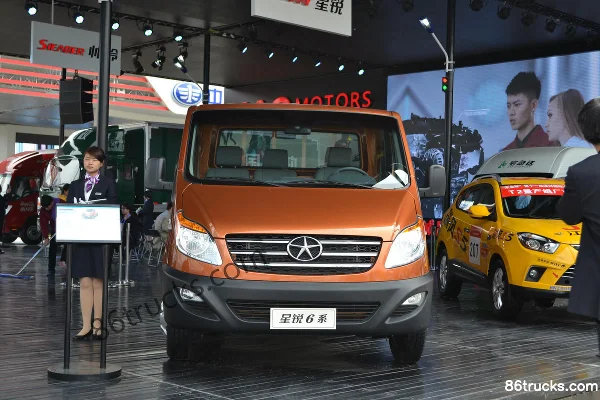

JAC Sunray 6 Series 120 hp 4X2(6 wheels) 3570 wheelbase Single Row Flatbed Light Truck
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HFC1049K1HV
Type: Chassis / Cargo Trucks
Drive type: 4X2
Wheelbase: 3570mm
Engine Model: JACHFC4DE1-1D / JACHFC4DA1-2C
Transmission Model: 5-speed transmission
Cab length: 5.99 / 5.995m
Cab width: 2.08 / 2.098m
Cab height: 2.3 / 2.1m
Front track width: 1760mm
rear track: 1645mm
Curb Weight: 2.05ton
GVWR: 4 / 3.51ton
Max. speed: 130 / 135km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Front/rear suspension: 0.965/1.455m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine info: Ruijete 493 / JAC493
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.746 / 2.8L
Emission standard: China V / China IV
Max output power: 112 / 88kW
Max hp: 152 / 120Horsepower
Max torque: 355 / 250N·m
Max torque speed: 1800-2600 / 1800-2800rpm
Rated speed: 3200 / 3600rpm
Engine Type: Inline 4-cylinder, high-pressure common rail, turbocharged, SCR aftertreatment / Turbocharged intercooled, inline 4-cylinder
Transmission Parameters
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis / stake body
Cab parameters
seating capacity: 3 / 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Leaf spring count: 9/11+8
Tire
Tire Size: 9.00-20,9.00R20 / 185R15C
Number of tires: 6pcs
FAQ
What kind of truck is JAC JAC 6 Series Cargo Trucks?
JAC JAC 6 Series is an export-oriented Cargo Trucks lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does JAC 6 Series Cargo Trucks cover?
JAC 6 Series Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 120 hp / 152 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC 6 Series Cargo Trucks?
For JAC 6 Series Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC 6 Series Cargo Trucks include?
JAC 6 Series Cargo Trucks currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC 6 Series Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
