JAC Haowei 34 hp 4X2(6 wheels) Garbage Truck Chassis (Electric)
EXW
Export quote
JAC Haowei Micro Truck garbage truck
Main model photos
84 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Haowei 34 hp 4X2(6 wheels) Garbage Truck Chassis (Electric) | 4x2 | ||
| JAC Haowei 68hp 4X2(6 wheels) Garbage Truck (Chassis) | 4x2 / 68hp / China IV | ||
| JAC Haowei 80hp 4X2(6 wheels) Garbage Truck (Chassis) | 4x2 / 80hp / China IV |
JAC Haowei 68hp 4X2(6 wheels) Garbage Truck (Chassis)
EXW
Export quote

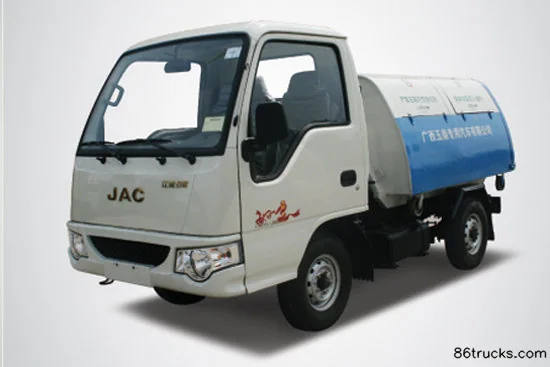

JAC Haowei 80hp 4X2(6 wheels) Garbage Truck (Chassis)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 4.35×1.56×1.96 / 4.291×1.56×1.935 / 3.845×1.56×1.636m
Type: garbage truck
Drive type: 4X2
Front/rear track width: 1300/1260 / Front track: 1,260 mm; Rear track: 1,360 mm / 1260/1360
Wheelbase: 2400 / 2600 / 2100mm
GVWR: 2.49ton
Front/rear suspension: 0.98/0.97 / 0.976/0.715 / 0.975/0.77m
Energy Type: Electric / Diesel
Body Parameters
Special Function Description: Also used for cleaning truck, sweeper truck, snow plow truck, dust removal truck, vacuum truck
Body Brand: JAC
Engine parameters
Engine Model: Quanchai 4A1-68C40 / Yuchai YCD4G1L-80
Displacement: 1.809 / 2.156L
Emission standard: China IV
Max output power: 50 / 60kW
Max hp: 68 / 80Horsepower
Rated speed: 3200rpm
Chassis Specs
Chassis Brand: JAC
Chassis Series: Haowei
Chassis Model: HFC1020PW4EV2B1D / HFC1030PW4K3B3Z / HFC1020PW4K1B6
rear axle description: Front axle 1T/Rear axle 1.5T
Leaf spring count: 3/5
Transmission Parameters
Number of gears: 5Gear
Transmission Model: MSC-5S / Lu'an LC5T15
Tire
Tire Size: 175R14LT 8PR / 6.00-13 8PR；175R14 8PR
Number of tires: 6pcs
FAQ
What kind of truck is JAC JAC Haowei Micro Truck garbage truck?
JAC JAC Haowei Micro Truck is an export-oriented garbage truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does JAC Haowei Micro Truck garbage truck cover?
JAC Haowei Micro Truck garbage truck mainly covers: Drive: 4x2; Horsepower: 68 hp / 80 hp; Emission: China IV; Fuel: Diesel / Electric. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Haowei Micro Truck garbage truck?
For JAC Haowei Micro Truck garbage truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is garbage truck typically used for?
garbage truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does JAC Haowei Micro Truck garbage truck include?
JAC Haowei Micro Truck garbage truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Haowei Micro Truck garbage truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
