JAC Haowei 1.1L 60hp 4X2(6 wheels) gasoline 2.6m single-row flatbed micro truck
EXW
Export quote
JAC Haowei Micro Truck Cargo Trucks
Main model photos
84 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Haowei 1.1L 60hp 4X2(6 wheels) gasoline 2.6m single-row flatbed micro truck | 4x2 / 60hp / China IV | ||
| JAC Haowei 1.1L 60hp 4X2(6 wheels) gasoline double-row flatbed micro truck | 4x2 / 60hp / China IV | ||
| JAC Haowei 1.1L 60hp 4X2(6 wheels) gasoline single-row van micro truck | 4x2 / 60hp / China IV | ||
| JAC Haowei 1.3L 82hp 4X2(6 wheels) Gasoline 2.7m Single Row Flatbed Mini Truck | 4x2 / 82hp / China IV | From $4,306 | |
| JAC Haowei28 1.8L 68 hp 4X2(6 wheels) diesel 3.2m one-and-a-half-row flatbed mini truck | 4x2 / 68hp / China IV | From $8,333 |

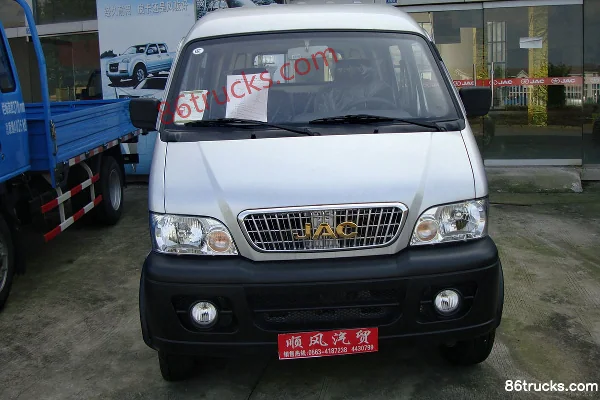

JAC Haowei 1.1L 60hp 4X2(6 wheels) gasoline double-row flatbed micro truck
EXW
Export quote

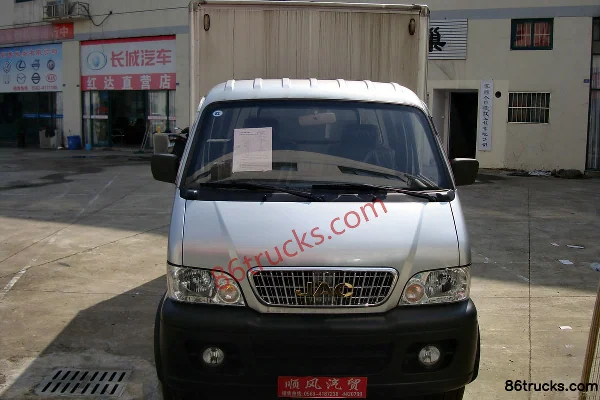

JAC Haowei 1.1L 60hp 4X2(6 wheels) gasoline single-row van micro truck
EXW
Export quote
JAC Haowei 1.3L 82hp 4X2(6 wheels) Gasoline 2.7m Single Row Flatbed Mini Truck
EXW
From $4,306
Export quote
JAC Haowei28 1.8L 68 hp 4X2(6 wheels) diesel 3.2m one-and-a-half-row flatbed mini truck
EXW
From $8,333
Export quote
Series Specs
Basic Info
Model code (announced): HFC1020F1A / HFC1020RF2A / HFC5020XXYFA / HFC1020PW4E1B1D / HFC1031PW4K1B4 / HFC5020CCYPW4K1B1D / HFC5020XXYPW4K1B1D / HFC1020PW4K1B1D / HFC5031CCYPW4K1B4 / HFC5031XXYPW4K1B4 / HFC5042XXYRW4K1B4 / HFC5042CCYRW4K1B4 / HFC1042RW4K1B4 / HFC5030CCYRW4K1B4 / HFC5030XXYRW4K1B4 / HFC1030RW4K1B4 / HFC5020CCYPW4E1B1D / HFC5020XXYPW4E1B1D / HFC5020CCYPW4K1B3 / HFC5020XXYPW4K1B3 / HFC1020PW4K1B3 / HFC5042CCYPW4K1B3 / HFC5042XXYPW4K1B3 / HFC1042PW4K1B3 / HFC5030XXYK1DT / HFC1020KRT / HFC1042K19RT / HFC1042K19T / HFC1020KWS / HFC1022KR1WS / HFC1020KR1WS
Type: Cargo Trucks / enclosed cargo truck / stake truck / mini cargo truck
Drive type: 4X2
Min. turning diameter: 6.5m
Wheelbase: 2535 / 3050 / 2400 / 2800 / 2600mm
Box length class: 2.6 / 2.7 / 3.2 / 2.5 / 3.1 / 2.9m
Engine Model: Wuling LiujiLJ465Q-2AE / Wuling LiujiLJ474Q3E2 / Quanchai4A1-68C40 / YangchaiYZ4DC2-40 / Quanchai4D18F / ChaochaiCY4A40-E3A / Quanchai4A1-68C43 / YangchaiYZ4DC4-30 / CY4A18 / QuanchaiQC480ZQ
Transmission Model: MengwoLG5-15 / 5-speed transmission / 5-15 / W3030 / W3050
Cab length: 4.415 / 4.916 / 4.36 / 5.155 / 4.37 / 5.26 / 4.76 / 4.85 / 4.17 / 5.12 / 4.99 / 4.62m
Cab width: 1.69 / 1.64 / 1.635 / 1.63 / 1.742m
Cab height: 1.93 / 1.995 / 2.41 / 2.35 / 2.025 / 2.5 / 2.007 / 2.46 / 2.04 / 2.005 / 2.1m
Front track width: 1430 / 1260 / 1300mm
rear track: 1420 / 1360 / 1180 / 1240mm
Curb Weight: 0.97 / 1.045 / 1.19 / 1.2 / 1.65 / 1.59 / 1.62 / 1.345 / 1.8 / 1.95 / 1.55 / 1.57 / 1.64 / 1.42 / 1.3 / 1.45 / 1.49 / 1.34 / 1.58 / 1.705 / 1.405 / 1.56 / 1.5 / 1.565ton
Rated payload: 0.99 / 0.495 / 0.93 / 0.995 / 0.745 / 1.495 / 1.625 / 1.745 / 1.905 / 1.785 / 1.995 / 1.245 / 0.905 / 0.85ton
GVWR: 2.09 / 1.865 / 1.815 / 2.32 / 2.775 / 2.465 / 2.495 / 2.47 / 2.925 / 3.075 / 3.62 / 3.6 / 2.89 / 2.96 / 2.74 / 2.175 / 2.325 / 2.365 / 2.445 / 2.215 / 3.615 / 3.575 / 2.995 / 2.49 / 3.74 / 3.53 / 2.6 / 2.48ton
Max. speed: 98 / 96 / 90 / 85 / 80km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 35 / 25 / 22 / 17°
departure angle: 28 / 22 / 18 / 21 / 20°
Remarks: Fuel consumption (L/100km) for 4A1-68C43 is 8.2 / 1. Distance from cargo floor to top of stake/grid: 1650mm; 2. Engine 4A1-68C40 fuel consumption (L/100km): 7.2; 3. Overall length (mm)/cargo box inner length (mm)/rear overhang (mm) correspondence: 1) 4170/2500/794, 2) 4370/2700/994 / 1. Roof enclosed, non-openable. 2. Cargo body style: painted sheet or corrugated sheet, optional right-side single door. / 1. The declared fuel consumption (L/100km) corresponding to 1.4A1-68C40 is 7.2; 2. The correspondence between overall length (mm)/cargo box interior length (mm)/rear overhang (mm) is: 1)4170/2500/794; 2)4370/2700/994 / 1. Distance from cargo box floor to cage top: 1650mm. / 1. Roof fully enclosed, non-openable; 2. Optional right-side doorless cargo box and double-door cargo box; cargo box style available in painted sheet and corrugated panel / 1. Roof enclosed, non-openable. 2. Side and rear underrun protection material: Q235, connection: bolted, rear protection section dimensions (L×W): 120mm×60mm, ground clearance: 375mm. / 1. Distance from cargo box floor to cage top: 1650mm. 2. Side and rear underrun protection material Q235, bolted connection, rear guard cross-section 130mm×30mm, ground clearance 425mm. / Side and rear underrun protection device material: Q235, connection: bolted, rear guard device section size (length×width): 130mm×30mm, ground clearance: 425mm / 1. Roof enclosed, non-openable. 2. Optional without probe cargo body and side-door cargo body, cargo body style: painted sheet or corrugated sheet. 3. Engine 4A1-68C40, YZ4DC2-40 fuel consumption (L/100km): 8.3, 8.4. / Engine 4A1-68C40, YZ4DC2-40 corresponding fuel consumption (L/100km): 8.3, 8.4 / Height from cargo box floor to top of rack is 1650 mm. / 1. Roof enclosed, non-openable. 2. Optional without air deflector and right-side no-door cargo body. 3. Cargo body style: painted sheet or corrugated sheet. / Fuel consumption declared value (L/100km) for engine 4A1-68C40, YZ4DC2-40 is 8.5, 9.2 / Side and rear underrun protection device material: Q235, connection: bolted, rear guard device section size (length×width): 130mm / 1. This vehicle does not come with OBD; 2. Engine 4D18F corresponds to fuel consumption of 7.3L/100km, engine SD4AE403D corresponds to 7.3L/100km, engine CY4A40-E3 corresponds to 7.3L/100km, engine YZ4DC4-30 corresponds to 7.8L/100km
Front/rear suspension: 35/28 / 586/1280 / 555/1325 / 0.976/0.984 / 0.975/1.310 / 0.976/0.794,0.976/0.994 / 0.975/1.485 / 0.975/1.275 / 0.975/1.185 / 0.976/0.794 / 0.975/1.345 / 1.04/1.35 / 1.04/1.04m
Energy Type: gasoline / Diesel
Engine parameters
Engine Brand: Wuling Liuji / Quanchai / Yangchai / Chaochai
Engine info: Liuji gasoline 1.1L / Wuling Liuji1.1L / Liuji gasoline 1.3L / Quanchai480 / Yangchai485 / Chaochai480 / Chaochai1.8L
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 1.051 / 1.298 / 1.809 / 2.16 / 2.088 / 1.81 / 1.8L
Emission standard: China IV / China III / Euro III
Max output power: 45 / 60.5 / 50 / 52 / 40 / 38kW
Max hp: 60 / 82 / 68 / 70 / 54 / 52Horsepower
Max torque: 85 / 102 / 170 / 135 / 123N·m
Max torque speed: 3500-4000 / 3500-400 / 3000-3500 / 1800 / 2000rpm
Rated speed: 5600 / 6000 / 3200rpm
Engine Type: 4-stroke, inline inclined, mechanically adjusted roller rocker arm, electronic fuel injection, electronic ignition / 4-stroke, water-cooled, inline, 16-valve, roof-shaped combustion chamber, single overhead camshaft, timing belt drive, electronic gasoline injection / Inline, vertical, water-cooled, high-pressure common rail, turbocharged intercooled / Direct injection, turbocharged & intercooled, electronic VE pump, water-cooled EGR / Inline
Transmission Parameters
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5 / 6Gear
Number of Reverse Gears:
FAQ
What kind of truck is JAC JAC Haowei Micro Truck Cargo Trucks?
JAC JAC Haowei Micro Truck is an export-oriented Cargo Trucks lineup with about 32 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Haowei Micro Truck Cargo Trucks?
JAC Haowei Micro Truck Cargo Trucks export reference is about $3,792 – $9,028. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Haowei Micro Truck Cargo Trucks cover?
JAC Haowei Micro Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 60 hp / 68 hp / 82 hp; Emission: China IV; Fuel: Diesel / gasoline. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Haowei Micro Truck Cargo Trucks?
For JAC Haowei Micro Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JAC Haowei Micro Truck Cargo Trucks include?
JAC Haowei Micro Truck Cargo Trucks currently lists about 32 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Haowei Micro Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
