Dongfeng Liuqi Chenglong H5 18T 9.8m electric swing arm hanging bucket compression garbage truck (XCMG brand) 218.54kWh 4X2(6 wheels)
EXW
Export quote
XCMG Dongfeng Liuqi chassis Electric Garbage Truck
Main model photos
40 photos
Models
Inventory
Dongfeng Liuqi Chenglong H5 18T 10m electric hanging bucket compression garbage truck (XCMG brand) 218.54kWh 4X2(6 wheels)
EXW
Export quote
Dongfeng Liuqi Chenglong H5 18T 9.6m electric tipping compression garbage truck (XCMG brand) 218.54kWh 4X2(6 wheels)
EXW
Export quote

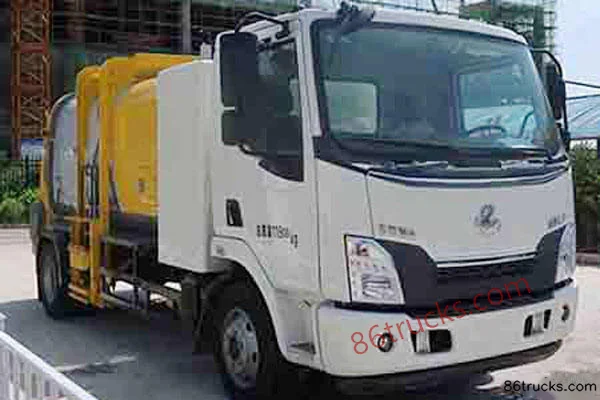

Dongfeng Liuqi Chenglong L3 11.9T pure electric kitchen waste truck (XCMG brand) 214.65kWh 4X2(6 wheels)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): DXA5180ZYSLBEV / DXA5120TCALBEV
Truck Type: Electric swing-arm bucket compression garbage truck / electric barrel-tipping compactor garbage truck / Battery Electric Front-Loading Compactor Refuse Truck / Electric kitchen waste truck
Drive type: 4X2
Wheelbase: 5300 / 4200mm
Cab length: 9.795 / 10.065 / 9.6 / 7.145m
Cab width: 2.5 / 2.355m
Cab height: 2.98 / 2.895m
CLTC range: 260 / 320km
Curb Weight: 11.6 / 8.54ton
Rated payload: 6.205 / 6.27 / 3.165ton
GVWR: 18 / 11.9ton
Max. speed: 88km/h
Origin: Hubei
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ370XS-LKM1101
Motor Type: Permanent magnet synchronous motor
total rated power: 80kW
Peak power: 160kW
total peak torque: 1100N·m
Body Parameters
Special Function Description: The main special device of this vehicle is the garbage compression device / The special device of this vehicle consists of a garbage bin, a bin lifting mechanism, etc., used for kitchen waste collection, transfer and unloading operations. This vehicle can be equipped with basic type and simple type unloading devices. With basic type unloading device, curb weight is 8540kg; with simple type unloading device, curb weight is 8240kg
Body Brand: XCMG brand
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 218.54 / 214.65kWh
Energy Density: 140 / 135.4
Chassis Specs
Front axle load: 6500 / 4300ton
Rear Axle Load: 11500 / 7600ton
Chassis Series: ChenglongH5 / ChenglongL3
Chassis Model: LZ5183XXYM3AZBEVT / LZ1121L3AZBEVT
Leaf spring count: 11/12+9,3/4+3 / 8/9+5
Tire
Tire Size: 295/80R22.5,10.00R20 / 245/70R19.5
Number of tires: 6pcs
FAQ
What kind of truck is XCMG XCMG Dongfeng Liuqi chassis Electric Garbage Truck?
XCMG XCMG Dongfeng Liuqi chassis is an export-oriented Electric Garbage Truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does XCMG Dongfeng Liuqi chassis Electric Garbage Truck cover?
XCMG Dongfeng Liuqi chassis Electric Garbage Truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in XCMG Dongfeng Liuqi chassis Electric Garbage Truck?
For XCMG Dongfeng Liuqi chassis Electric Garbage Truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is Electric Garbage Truck typically used for?
Electric Garbage Truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does XCMG Dongfeng Liuqi chassis Electric Garbage Truck include?
XCMG Dongfeng Liuqi chassis Electric Garbage Truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for XCMG Dongfeng Liuqi chassis Electric Garbage Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
