Foton Ruowo ES5 185hp 4X2(6 wheels) 6.8m Refrigerated Truck
EXW
From $28,472
Export quote

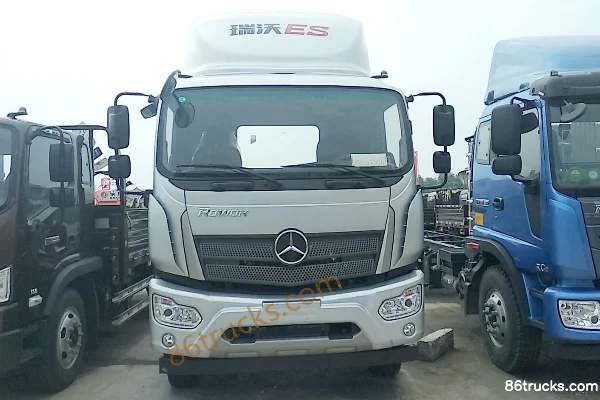

Foton ES5 Medium Truck Refrigerated Truck
Main model photos
152 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Ruowo ES5 185hp 4X2(6 wheels) 6.8m Refrigerated Truck | 4x2 / 185hp / China V | From $28,472 | |
| Foton Ruivo ES5 220 hp 4X2(6 wheels) 6.8m Refrigerated Truck | 4x2 / 220hp / China V | From $40,278 | |
| Foton Ruiwo ES5 220 hp 4X2(6 wheels) 5.8m Refrigerated Truck | 4x2 / 220hp / China VI | From $33,056 | |
| Foton Ruiwo ES5 170hp 4X2(6 wheels) 6.8m Refrigerated Truck | 4x2 / 170hp / China V | From $26,111 | |
| Foton Ruifu ES5 185hp 4X2(6 wheels) 7.6m refrigerated truck | 4x2 / 185hp / China V | From $20,056 |
Foton Ruivo ES5 220 hp 4X2(6 wheels) 6.8m Refrigerated Truck
EXW
From $40,278
Export quote
Foton Ruiwo ES5 220 hp 4X2(6 wheels) 5.8m Refrigerated Truck
EXW
From $33,056
Export quote
Foton Ruiwo ES5 170hp 4X2(6 wheels) 6.8m Refrigerated Truck
EXW
From $26,111
Export quote
Foton Ruifu ES5 185hp 4X2(6 wheels) 7.6m refrigerated truck
EXW
From $20,056
Export quote
Series Specs
Basic Info
Cab dimensions: 9.2×2.6×3.995 / 8.5×2.6×3.995 / 10.1×2.6×3.995 / 10.3×2.6×3.995m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 5700 / 5250mm
Vehicle origin: Shandong Zhucheng / Beijing
Front track width: 1904 / 1920 / 1953mm
rear track: 1860 / 1810mm
Curb Weight: 8 / 7.88 / 7.26ton
Rated payload: 9.805 / 9.925 / 7.99 / 9.87 / 8.34ton
Max. speed: 90km/h
Front/rear suspension: 1.35/3.05 / 1.28/2.67 / 1.28/2.72 / 1.35/2.76 / 1.35/3.25m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISF4.5S5185 / WeichaiWP4.6NQ220E50 / WeichaiWP4.6NQ220E61 / YuchaiYC4S170-50
Number of cylinders: 4 / 6cylinder
Displacement: 4.46 / 4.6 / 3.76L
Emission standard: China V / China VI
Max output power: 136 / 162 / 125kW
Max hp: 185 / 220 / 170Horsepower
Max torque: 700 / 800 / 600N·m
Rated speed: 2300 / 2600 / 2500rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection / Common Rail+SCR / 4-valve, high-pressure common rail, turbocharged intercooled, EGR+DPF+DOC+SCR / Vertical, inline, water-cooled, four-stroke / Turbocharged intercooled, Bosch high-pressure common rail, high-pressure direct injection
Cargo box parameters
Cargo box dimensions: 6.8×2.45×2.52 / 6.8×2.42×2.52 / 5.8×2.42×2.52 / 7.6×2.4×2.52 / 7.8×2.4×2.52m
Cargo box width: 2.45 / 2.42 / 2.4m
Cargo box height: 2.52m
Body Parameters
Vehicle certification code: BJ5185XLC-FA / BJ5185XLC-FB / BJ5166XLC-1
Body Brand: Foton
Chassis Specs
Chassis Brand: Foton
Chassis Series: Foton Ruiwo ES5
Chassis Model: BJ1185VLPEN-FA / BJ1185VKPFK-FG / BJ1164VJPFN-01 / BJ1166VJPEN-1
Frame Dimensions: 250x70x8mm
rear axle description: 1093Z
Axle ratio: 4.33 / 4.875
Leaf spring count: 8/10+8,4/10+3 / 8/10+8 / 10/12+9,10/10+9,4/10+3 / 8/10+8,4/10+3,10/10+9
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85C / Fast Gear 8-speed / Fast Gear8JS85TC / Fast Gear8JS85E
Cab parameters
Cab: Sleeper cab
Tire
Tire Size: 10.00R20 18PR,11R22.5 18PR / 10.00R20 18PR / 9.00R20 16PR,10R22.5 16PR
Number of tires: 6pcs
FAQ
What kind of truck is Foton Foton ES5 Medium Truck Refrigerated Truck?
Foton Foton ES5 Medium Truck is an export-oriented Refrigerated Truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton ES5 Medium Truck Refrigerated Truck?
Foton ES5 Medium Truck Refrigerated Truck export reference is about $20,056 – $40,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton ES5 Medium Truck Refrigerated Truck cover?
Foton ES5 Medium Truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 170 hp / 185 hp / 220 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton ES5 Medium Truck Refrigerated Truck?
For Foton ES5 Medium Truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton ES5 Medium Truck Refrigerated Truck include?
Foton ES5 Medium Truck Refrigerated Truck currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton ES5 Medium Truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
