Dongfeng Commercial Vehicle Dongfeng Tianjin VR

Main model photos

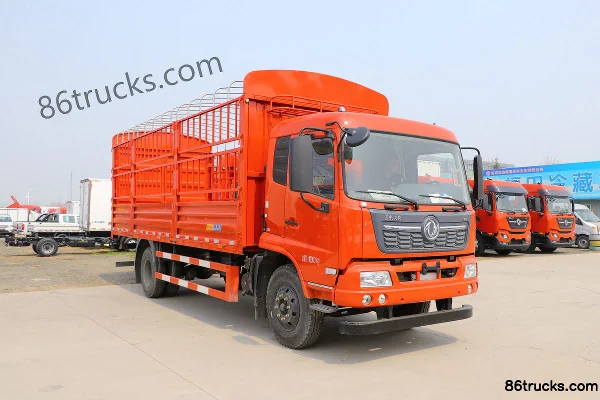

Dongfeng Tianjin VR 6.2L Diesel 270 hp 6X2(8 wheels) Fast Gear 8-speed 7.8m Stake Cargo Truck Exterior Dongfeng Tianjin VR 4L Diesel 170 hp 4X2(6 wheels) Fast Gear 8-speed 7.1m Single-row Van Cargo Truck Exterior Dongfeng Tianjin VR 4L Diesel 170 hp 4X2(6 wheels) Fast Gear 8-speed 5.79m Semi-sleeper Stake Cargo Truck Exterior

356 photos

Models

On sale

Inventory

Series Specs

Basic Info
Model code (announced): DFH5250CCYB1 / DFH1250B1 / DFH5120XXYB8 / DFH5120CCYB7 / DFH5120XXYB7 / DFH1120B7 / DFH5180XXYB7 / DFH5180XXYB4 / DFH5180XYKBX4 / DFH5170XXYBX4 / DFH5170XYKBX4 / DFH1140B2 / DFH1140BX21 / DFH5140XXYB2 / DFH5140CCYB2 / DFH1140BX2 / DFH5180XXYBX2 / DFH5140XXYB3 / DFH1170BX2 / DFH5120CCYBXV / DFH1240BX5 / DFH5180XXYB1 / DFH1160BX1JV / DFL5140XXYB5 / DFH5120XXYB2 / DFH1120B1 / DFH1180B3 / DFL1140B10 / DFH1180BX1JV / DFH1160BX2 / DFH5160CCYBX2 / DFH1180BX3JV / DFH1250BXV
Type: stake truck / Cargo Trucks / enclosed cargo truck
Drive type: 6X2 / 4X2
Wheelbase: 1995+4100 / 1995+3800 / 5000 / 4500 / 4000 / 7100 / 5800 / 4700 / 1800+3600 / 5600 / 1800+4100mm
Box length class: 7.8 / 6.8 / 7.1 / 5.8 / 5.3 / 6.1 / 10.1 / 8 / 6.2 / 7.2 / 7 / 10 / 9.6 / 7.5 / 7.7 / 9.7 / 6.7 / 9m
Engine Model: YuchaiYCS06270-60 / DongfengD4.0NS6B170 / DongfengB6.2NS6B230 / DongfengDDi47E240-60 / DongfengB6.2NS6B210 / DongfengDDi47E210-60 / DongfengDDi47E225-60 / DongfengD4.0NS6B185 / DongfengEQH160-52 / YuchaiYCK05240-60 / DongfengISB210 50 / DongfengISB180 50 / DongfengEQH180-52 / DongfengISD285 50 / YCS06270-60 / D4.0NS6B170 / DDi47E240-60 / B6.2NS6B210
Transmission Model: Fast Gear8JS105A / Fast Gear8JS75C / Fast Gear8JS95E-C / Fast Gear8JS85TE-C / Fast Gear8JS85E-C / DongfengDT0690 / Fast Gear 8-speed / Fast Gear8JS75E-C / DongfengDF6S650 / Fast Gear8JS85E / Fast Gear8JS118TC-B / 8JS75C / 8JS85TE-C / 8JS85E-C
Rear Axle Ratio: 4.44 / 4.33 / 4.1 / 5.38 / 3.909 / 4.875 / 4.56 / 4.11
Cab length: 10.255 / 9.255 / 9.12 / 9.005 / 7.995 / 7.505 / 8.12 / 8.005 / 12 / 10.3 / 9.95 / 9 / 8.45 / 9.655 / 10.25 / 9.65 / 11.99 / 8.6 / 9.995 / 10 / 10.1m
Cab width: 2.55 / 2.5 / 2350 / 1995 / 2200m
Cab height: 3.74 / 3.13 / 3.7 / 3.26 / 2.855 / 3.99 / 3.87 / 2.99 / 3.9 / 3.68 / 2.8 / 3.07 / 3.56 / 2.87 / 2.94 / 3.76 / 2.96 / 2.91 / 2.86 / 3.78 / 3.33 / 3.04m
Front track width: 1934/1934 / 1830 / 1960 / 1860 / 1862 / 1868 / 1826 / 1800 / 1910/1910 / 1815 / 1880 / 1855 / 1915/1915mm
rear track: 1860 / 1800 / 1840 / 1820mm
Curb Weight: 9 / 8.48 / 6.295 / 5.65 / 5.55 / 5.2 / 8.4 / 8.05 / 7.98 / 7.86 / 5.6 / 5.875 / 6.795 / 6.6 / 5.35 / 7.51 / 6.95 / 6.45 / 5.945 / 5.5 / 7.7 / 8.8 / 7.415 / 7.43 / 6.4 / 6.65 / 6.3 / 5.975 / 7.88 / 7.815 / 8.36ton
Rated payload: 15.805 / 16.325 / 5.5 / 6.145 / 6.245 / 6.595 / 9.47 / 9.82 / 7.99 / 8.35 / 7.93 / 7.5 / 7.695 / 8.515 / 10.36 / 7.41 / 9.895 / 8.76 / 6.8 / 16.605 / 9.005 / 6.865 / 5.895 / 6.42 / 11.155 / 7.795 / 11.83 / 7.925 / 9.99 / 16.445ton
GVWR: 25 / 11.99 / 18 / 16.66 / 14.49 / 14 / 14.06 / 16.54 / 12.495 / 24.5 / 15.6 / 12.49 / 14.29 / 16ton
Max. speed: 89 / 99 / 90 / 110 / 98km/h
Origin: Shiyan, Hubei
tonnage class: Heavy truck / Medium-duty truck
Approach angle: 17 / 18 / 20 / 14 / 18.5 / 16.5 / 16 / 23°
departure angle: 14 / 20 / 22 / 5.5 / 9 / 10 / 11 / 11.7 / 7 / 8 / 12°
market segment: Building material transport / LTL transport / Express parcel, building material transport, refrigerated transport / Logistics Freight / Building materials, agricultural products / Express & Freight / Express parcel, LTL / Agricultural product transport, LTL transport / Agricultural and sideline product transport / Daily industrial goods transport / Green Pass
Remarks: Free first maintenance, max volume 71 m³. / 140Ah battery / High-spec cab / Optional ratio 4.1 / Transmission optional Fast Gear 8JS85E-C / Optional ratios: 3.909
Front/rear suspension: 1.455/2.705 / 1.455/2.005 / 1.405/2.715 / 1.405/2.6 / 1.405/2.09 / 1.405/2.1 / 1.405/2.215 / 1.445/3.455 / 1.43/3.27 / 1.43/2.92 / 1.43/2.57 / 1.43/2.32 / 1.455/2.405 / 1.43/3.02 / 1.365/1.885 / 1.475/2.375 / 1.5/3.39 / 1.43/3.46 / 1.44/2.955 / 1.43/2.97 / 1.43/2.47 / 1.44/2.06 / 1.43/2.17m
Version: Green Pass Edition / 2019 model / composite version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai / Dongfeng
Engine info: Yuchai6.2L / Dongkang 4L / Dongkang 6.2L / Dongfeng4.8L / Yuchai5.1L / Dongkang 5.9L / Dongkang 6.7L
Number of cylinders: 6 / 4cylinder
Cylinder arrangement: Inline
Displacement: 6.23 / 4 / 6.2 / 4.75 / 4.752 / 5.13 / 5.9 / 6.7L
Emission standard: China VI / China V
Max output power: 199 / 125 / 169 / 177 / 154 / 166 / 136 / 118 / 176 / 155 / 132 / 210kW
Max hp: 270 / 170 / 230 / 240 / 210 / 225 / 185 / 160 / 180 / 285Horsepower
Max torque: 1050 / 600 / 950 / 850 / 700 / 900 / 750 / 1020N·m
Max torque speed: 1200-1700 / 1100-1800 / 1100-1700 / 1300-1800 / 1200-1600 / 1300-1700 / 1200-1800rpm
Rated speed: 2300 / 2400 / 2200 / 2500rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Compression ignition, inline four-cylinder / SCR
Transmission Parameters
Transmission Brand: Fast Gear / Dongfeng
shift method: Manual

FAQ

What kind of truck is Dongfeng Commercial Vehicle Dongfeng Tianjin VR medium-duty truck Cargo Trucks?

Dongfeng Commercial Vehicle Dongfeng Tianjin VR medium-duty truck is an export-oriented Cargo Trucks lineup with about 114 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for Dongfeng Commercial Vehicle Dongfeng Tianjin VR?

Dongfeng Commercial Vehicle Dongfeng Tianjin VR export reference is about $16,917 – $33,667. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does Dongfeng Commercial Vehicle Dongfeng Tianjin VR cover?

Dongfeng Commercial Vehicle Dongfeng Tianjin VR mainly covers: Drive: 4x2 / 6x2; Horsepower: 160 hp / 170 hp / 180 hp / 210 hp / 270 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in Dongfeng Commercial Vehicle Dongfeng Tianjin VR?

For Dongfeng Commercial Vehicle Dongfeng Tianjin VR: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.

What is Cargo Trucks typically used for?

Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.

How many models does Dongfeng Commercial Vehicle Dongfeng Tianjin VR include?

Dongfeng Commercial Vehicle Dongfeng Tianjin VR currently lists about 114 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for Dongfeng Commercial Vehicle Dongfeng Tianjin VR?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
