Dongfeng Commercial Vehicle Tianlong 340hp 8X4(12 wheels) 9.4m refrigerated truck (CIMC)
EXW
From $44,819
Export quote
CIMC Dongfeng Commercial Vehicle Chassis
Main model photos
17 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianlong 340hp 8X4(12 wheels) 9.4m refrigerated truck (CIMC) | 8x4 / 340hp / China V | From $44,819 | |
| Dongfeng Commercial Vehicle Tianjin 210 hp 6X2(8 wheels) 8.6m refrigerated truck (Zhongji brand) | 6x2 / 210hp / China V | ||
| Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.5m refrigerated truck (Zhongji brand) | 4x2 / 180hp / China V | ||
| Dongfeng Commercial Vehicle Tianlong 270hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand) | 8x4 / 270hp / China III / Euro III |

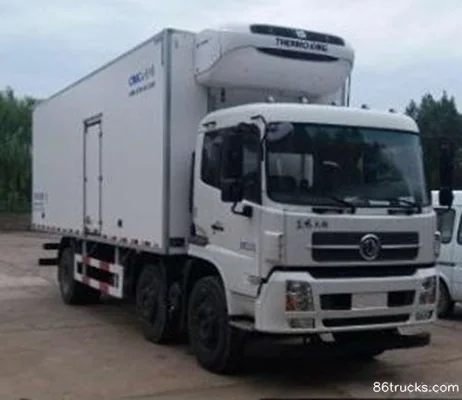

Dongfeng Commercial Vehicle Tianjin 210 hp 6X2(8 wheels) 8.6m refrigerated truck (Zhongji brand)
EXW
Export quote

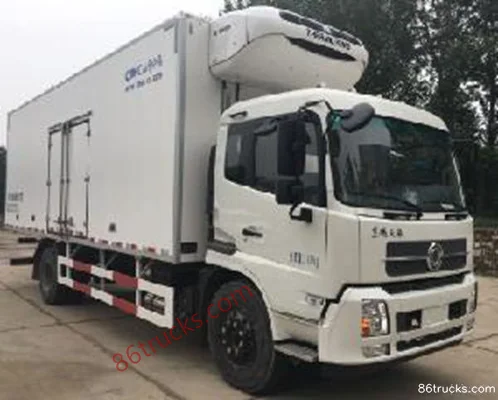

Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.5m refrigerated truck (Zhongji brand)
EXW
Export quote
Dongfeng Commercial Vehicle Tianlong 270hp 8X4(12 wheels) Refrigerated Truck (Zhongji Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.6×4 / 11.1×2.6×4 / 9.995×2.6×4 / 11.98×2.54×3.95m
Drive type: 8X4 / 6X2 / 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Shenzhen, Guangdong / Shenzhen
Wheelbase: 1850+4600+1400 / 1800+5000 / 5600mm
Front track width: 2040/2040 / 1955/1955 / 1880mm
rear track: 1860/1860 / 1860 / 1800mm
Curb Weight: 14.1 / 10.2 / 8.3 / 13.72ton
Rated payload: 16.705 / 14.605 / 9.505 / 17.075ton
Max. speed: 90km/h
Front/rear suspension: 1.5/2.7 / 1.43/2.87 / 1.43/2.965 / 1.46/3.02m
Energy Type: Diesel
Engine parameters
Engine Model: DongfengISL9.5-340E51A / DongfengISD210 50 / DongfengISB180 50 / Dongfeng ISDe270 30
Number of cylinders: 6cylinder
Displacement: 9.46 / 6.7 / 5.9L
Emission standard: China V / China III / Euro III
Max output power: 251 / 155 / 132 / 198kW
Max hp: 340 / 210 / 180 / 270Horsepower
Max torque: 1500 / 800 / 700 / 970N·m
Rated speed: 1900 / 2500rpm
Engine Type: Inline / Inline 6-cylinder, electronic control system, enhanced high-pressure common rail, particulate filter
Cargo box parameters
Cargo box dimensions: 9.385×2.425×2.49 / 8.6×2.425×2.45 / 7.585×2.435×2.45 / 9.435×2.335×2.39m
Cargo box width: 2.425 / 2.435 / 2.335m
Cargo box height: 2.49 / 2.45 / 2.39m
Body Parameters
Vehicle certification code: ZJV5310XLCSD5 / ZJV5252XLCSD5 / ZJV5180XLCSD5 / ZJV5312XLCSD
Body Brand: CIMC brand
Others: Cargo compartment top closed, non-openable. One or two side doors optional on both sides of the compartment. When the compartment is of meat rail structure, curb weight is 14910. Other models of refrigeration units with equivalent power are optional.
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianlong / Dongfeng Tianjin
Chassis Model: DFH1310A1 / DFH1250BXV / DFH5180XXYBX2DV / DFL1311A3
Axle ratio: 4.44 / 4.56
Leaf spring count: 8/8/10 / 3/3/10+8，3/3/4+3 / 8/10+8 / 8/8/10,3/3/4
Transmission Parameters
Number of gears: 12 / 8Gear
Transmission Model: Fast Gear12JSD160TA / DongfengDF8S1000 / Fast Gear8JS85E
Tire
Tire Size: 11.00R20 18PR / 295/80R22.5 18PR / 10.00R20 18PR / 10.00-20/10.00R20/11.00-20/11.00R20
Number of tires: 12 / 8 / 6pcs
FAQ
What kind of truck is CIMC CIMC Dongfeng Commercial Vehicle Chassis Refrigerated Truck?
CIMC CIMC Dongfeng Commercial Vehicle Chassis is an export-oriented Refrigerated Truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for CIMC Dongfeng Commercial Vehicle Chassis?
CIMC Dongfeng Commercial Vehicle Chassis export reference is about From $44,819. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does CIMC Dongfeng Commercial Vehicle Chassis cover?
CIMC Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 180 hp / 210 hp / 270 hp / 340 hp; Emission: China III / Euro III / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in CIMC Dongfeng Commercial Vehicle Chassis?
For CIMC Dongfeng Commercial Vehicle Chassis: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does CIMC Dongfeng Commercial Vehicle Chassis include?
CIMC Dongfeng Commercial Vehicle Chassis currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for CIMC Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
