JAC Gallop K5L 220hp 6X2(8 wheels) Flatbed Truck (Xingbanglong Brand)
EXW
From $29,028
Export quote
Xingbanglong JAC Gallop chassis flatbed truck

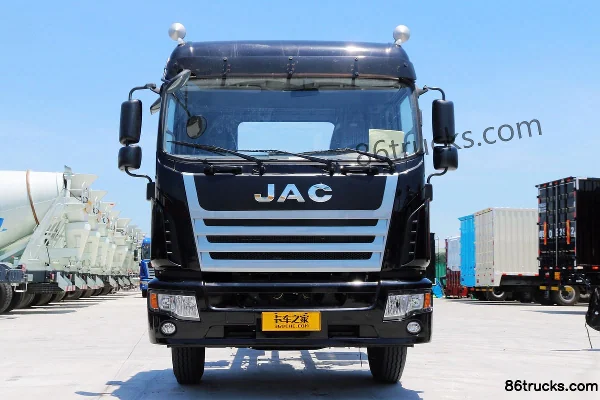

Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K5L 220hp 6X2(8 wheels) Flatbed Truck (Xingbanglong Brand) | 6x2 / 220hp / China V | From $29,028 | |
| JAC Gallop K5L 200hp 4X2(6 wheels) Flatbed Truck (Xingbanglong Brand) | 4x2 / 200hp / China V | From $27,069 | |
| JAC Gallop K6L 200hp 4X2(6 wheels) Flatbed Truck (Xingbanglong Brand) | 4x2 / 200hp / China V | From $27,069 | |
| JAC Gallop K5L 220hp 4X2(6 wheels) Flatbed Truck (Xingbanglong Brand) (Short Wheelbase) | 4x2 / 220hp / China V | From $24,028 | |
| JAC Gallop K5L 220hp 4X2(6 wheels) Flatbed Truck (Xingbanglong Brand) | 4x2 / 220hp / China V | From $24,028 |
JAC Gallop K5L 200hp 4X2(6 wheels) Flatbed Truck (Xingbanglong Brand)
EXW
From $27,069
Export quote
JAC Gallop K6L 200hp 4X2(6 wheels) Flatbed Truck (Xingbanglong Brand)
EXW
From $27,069
Export quote
JAC Gallop K5L 220hp 4X2(6 wheels) Flatbed Truck (Xingbanglong Brand) (Short Wheelbase)
EXW
From $24,028
Export quote
JAC Gallop K5L 220hp 4X2(6 wheels) Flatbed Truck (Xingbanglong Brand)
EXW
From $24,028
Export quote
Series Specs
Basic Info
Cab dimensions: 9.8×2.55×3.05 / 8.65×2.55×3.15 / 9×2.55×3.15m
Type: flatbed truck
Drive type: 6X2 / 4X2
Wheelbase: 1700+3800 / 4700 / 5000mm
Rated mass: 14.045 / 10.37 / 10.305ton
GVWR: 24.5 / 18ton
Front/rear suspension: 1.475/2.46 / 1.4/2.3 / 1.4/2.6m
Engine parameters
Engine Model: YuchaiYC6JA220-50 / YuchaiYC6JA200-50 / Yunnei PowerD45TCIE1
Displacement: 6.87 / 4.46L
Emission standard: China V
Max output power: 162 / 147kW
Max hp: 220 / 200Horsepower
Body Parameters
Vehicle certification code: XBZ5240TPB / XBZ5180TPBH5
Body Brand: Xingbanglong
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK5 / GallopK6
Chassis Model: HFC1241P3K2D38S2V / HFC5181XXYP3K2A47V
rear axle description: 153 / 8t
Leaf spring count: 3/3/9+7,9/9/9+7,3/3/4+3,2/2/4+3,2/2/9+7 / 3/4+3,3/9+7,9/9+7
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS105TA / Fast Gear8JS85
Tire
Tire Size: 10.00R20
Number of tires: 8 / 6pcs
FAQ
What kind of truck is Xingbanglong Xingbanglong JAC Gallop chassis flatbed truck?
Xingbanglong Xingbanglong JAC Gallop chassis is an export-oriented flatbed truck lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Xingbanglong JAC Gallop chassis flatbed truck?
Xingbanglong JAC Gallop chassis flatbed truck export reference is about $24,028 – $29,028. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Xingbanglong JAC Gallop chassis flatbed truck cover?
Xingbanglong JAC Gallop chassis flatbed truck mainly covers: Drive: 4x2 / 6x2; Horsepower: 200 hp / 220 hp; Emission: China V. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Xingbanglong JAC Gallop chassis flatbed truck?
For Xingbanglong JAC Gallop chassis flatbed truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is flatbed truck typically used for?
flatbed truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Xingbanglong JAC Gallop chassis flatbed truck include?
Xingbanglong JAC Gallop chassis flatbed truck currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Xingbanglong JAC Gallop chassis flatbed truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
